Name: TTC-H40 CNC Router Machine Twotrees
Brand: TwoTrees
SKU: 507-622400034+622500039
Price: 147500 INR
Availability: InStock

Technical Specifications

Brand:

TwoTrees

Body Material:

Aluminum Alloy

Net Weight:

38.3kg

Control Box Size:

300x137x131mm

Machine Dimensions:

1292.5x1290.5x404.5mm

Working Range:

1000x1000x100mm (39.4inx39.4inx4in)

Supported Tool Diameter:

0.5mm To 7mm (ER11 Collet)

Compatible Engraving Materials:

Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel

Power Supply:

216W Dual-Channel Switching Power Supply

Overall Power:

150W

Input Voltage:

100AC-240AC 50HZ

Output Voltage:

OUT1:DC24V/4A OUT2:DC0-100V

Display Size:

3.5 inch

Touch Type:

Resistive Touch Screen

Resolution:

480x320

Firmware Type:

GRBL open source, supports both CNC and laser (no firmware required)

Spindle Module:

500W Spindle Standard

Spindle Speed:

8000-30000 RPM Depending On Installation

Engraving Accuracy:

100+0.05mm

Maximum Engraving Speed:

1800mm/Min

Maximum Acceleration:

500mm/s2

Optimal Temperature:

0 ~40 C

Tool Size:

According to the inner hole size of ER11 collet, it supports 0.5-6MM diameter tools

Engraving Layer Height:

0.1mm-20mm for non-metals, 0.1mm-0.2mm for metals

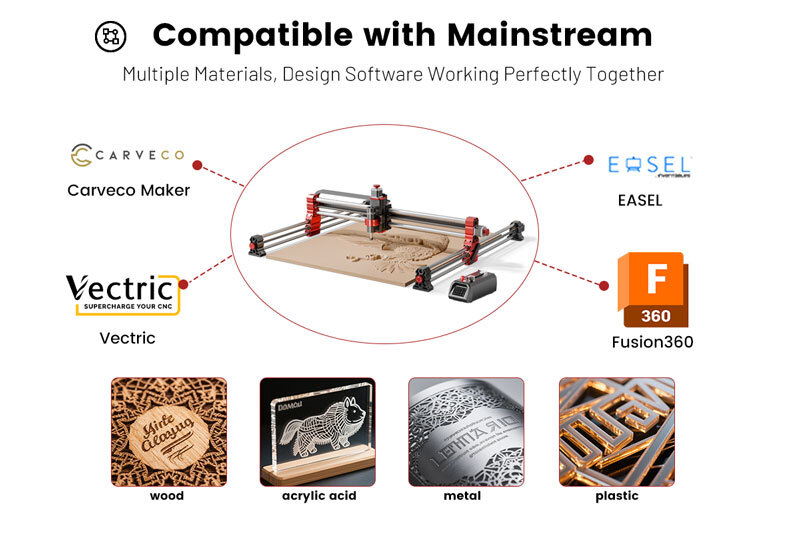

Cam software:

Vectric, Fusion360, EASEL, Carveco Maker

Engraving Method:

USB Connection, TF Card

Touchscreen Functions:

Motion Control, Emergency Stop,Speed Control, Laser/CNC Function Switch,Language Switch, Online Help

Supported Systems:

MacOS, Windows, and Linux

Safety Certification:

CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

The Twotrees TTC-H40 CNC Router Machine is engineered for precision, flexibility, and ease of use, making it an ideal choice for hobbyists, DIY makers, and professionals alike. With an impressive 39.4in × 39.4in working area, it easily handles medium to large projects, offering creative freedom for woodworking, acrylic, plastic, PCB, and more. Its intelligent design supports a seamless one-step switch between CNC routing and laser engraving, enabling versatile crafting on a single platform. Equipped with a 3.5-inch intelligent touch screen, beginners and experienced users can quickly get started with intuitive controls and one-click operation. Safety is prioritised with spindle power-off protection and multiple built-in safety mechanisms, ensuring peace of mind during use. Designed for expansion, the TTC-H40 allows easy upgrades to meet evolving creative needs, while its modular structure supports simple assembly, disassembly, and storage. With compatibility across mainstream systems and reliable performance, this CNC router embodies creativity without boundaries.

Key Features:

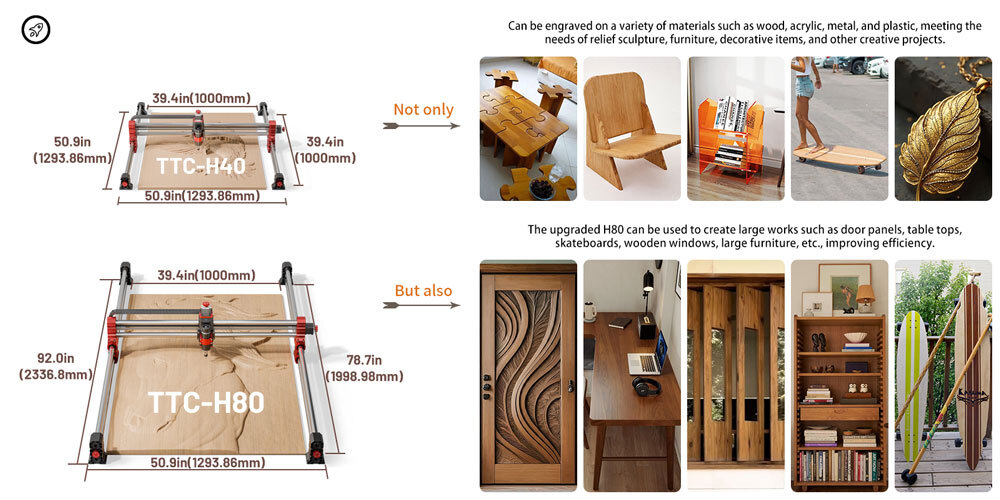

Large Working Area: 39.4in × 39.4in surface, perfect for medium to large-scale projects.
Dual Functionality: One-step switch between CNC routing and laser engraving.
Intelligent Touch Screen: 3.5-inch smart display for simple, one-click control and easy setup.
User-Friendly for Beginners: Designed so that newcomers can start projects quickly and confidently.

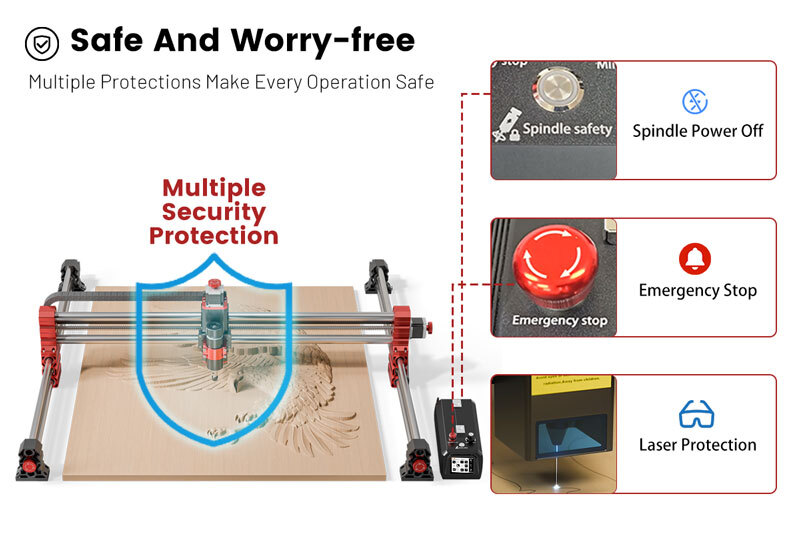

Safety First: Spindle power-off and multiple protection features ensure safe operation.
Relief Engraving Capability: Add depth, texture, and dimension to your creative designs.
Multi-Material Compatibility: Works with wood, acrylic, plastic, PCB, and more.
Modular Assembly: Easy to assemble, disassemble, and store for convenience.

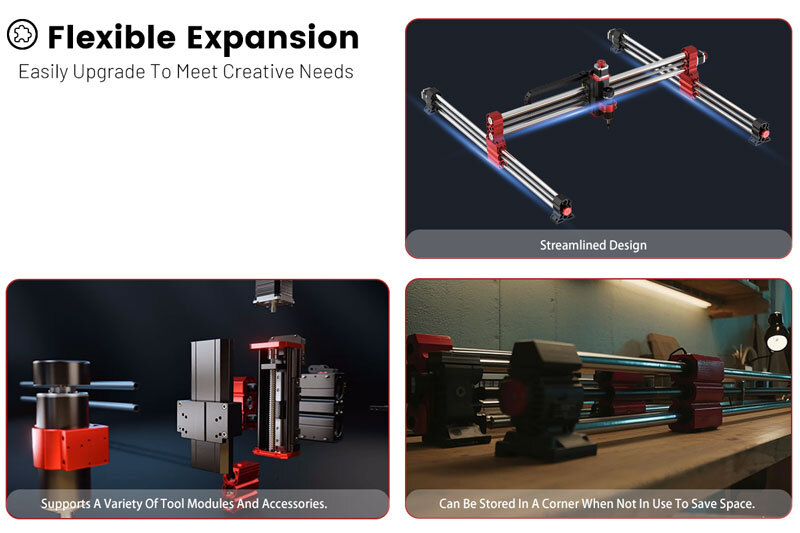

Flexible Expansion: Supports upgrades for enhanced creative applications.
Global User Choice: Trusted by makers worldwide for its versatility and efficiency.
