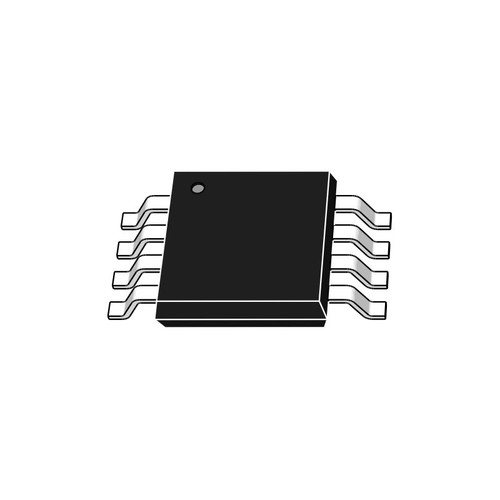

TPS62160DGKR - Buck Switching Regulator IC 1A VSSOP-8

Texas Instruments

No reviews yet Write a Review
SKU:
035-TPS62160DGKR
MPN:
TPS62160DGKR
Full Reel:
2500 (order in multiples of this to receive standard manufacturer packaging)
TPS62160DGKR 1A 17V Synchronous Buck Switching Regulator IC VSSOP-8 Package
Quantity
Unit Price (ex. GST)
1 - 9
₹ 122.77
10 - 99
₹ 110.49
100 - 999
₹ 104.35
1000 or above
₹ 98.22
The TPS62160DGKR is a 3V–17V, 1A synchronous buck regulator with DCS-Control™, 2.25MHz frequency, power save mode, and power sequencing features in a compact 8-pin VSSOP package for high-efficiency power designs. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹144.87 inc. GST
₹122.77 ex. GST
11 people looking at this.

Technical Specifications

Brand:
Texas Instruments
Case/Package:
VSSOP
Number Of Pins:
8
Max Input Voltage:
17 V
Max Operating Temperature:
125 C
Max Output Current:
1 A
Max Output Voltage:
6 V
Min Input Voltage:
3 V
Min Operating Temperature:
-40 C
Min Output Voltage:
900 mV
Number of Channels:
1
Number of Outputs:
1
Operating Supply Voltage:
17 V
Output Current:
1 A
Output Voltage:
6 V
Quiescent Current:
17 uA
Switching Frequency:
2.25 MHz
Full Reel Quantity:
2500

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

TPS62160DGKR – 1A High-Efficiency Synchronous Buck Switching Regulator IC

The TPS62160DGKR is a high-performance, easy-to-use synchronous step-down (buck) DC-DC converter designed for compact, high power density applications. Operating with the advanced DCS-Control topology, it delivers fast transient response, excellent output voltage accuracy, and superior efficiency across the entire load range. Supporting a wide input voltage range of 3V to 17V, this device is ideal for systems powered from single-cell Li-Ion batteries, 12V rails, or other unregulated DC sources.

The converter operates at a fixed 2.25MHz switching frequency, enabling the use of small external inductors and capacitors for a compact, cost-effective design. It provides up to 1A continuous output current with output voltages adjustable between 0.9V and 6V, and supports 100% duty cycle mode for low dropout operation. The Power Save Mode (PSM) automatically engages under light-load conditions, maintaining high efficiency with a quiescent current of just 17uA. Additionally, the shutdown current is less than 2uA, ensuring minimal power draw when inactive. Featuring enable (EN) and power good (PG) pins, the TPS62160 allows for flexible power sequencing in multi-rail systems. Available in a compact 8-pin VSSOP (DGK) package, the device offers exceptional thermal and electrical performance, making it suitable for industrial, automotive, and portable power management applications.

Key Features

  • Wide Input Voltage Range: 3V to 17V, ideal for battery-powered and 12V systems.
  • 1A Continuous Output Current: Provides stable and efficient power delivery.
  • DCS-Control Topology: Enables fast transient response and high output voltage accuracy.
  • 2.25MHz Switching Frequency: Supports small inductors and capacitors for compact solutions.
  • Adjustable Output Voltage: 0.9V to 6V with 100% duty cycle mode for low dropout performance.
  • Power Save Mode: Reduces quiescent current to 17uA for enhanced efficiency during light loads.
  • Low Shutdown Current: Less than 2uA for ultra-low power standby operation.
  • Power Sequencing Support: Enable and power good pins for controlled startup and monitoring.
  • Compact Package: Available in 8-pin VSSOP (3mmx3mm) for space-constrained applications.
  • High Efficiency and Thermal Performance: Optimized for modern, high-density power designs.
