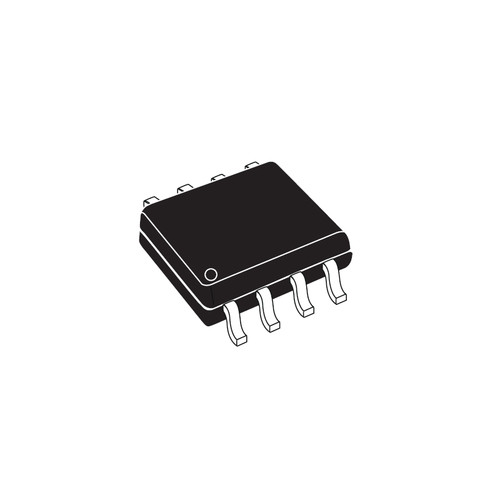

TPS54332DDAR - Buck Switching Regulator IC 3.5A SOIC-8

Texas Instruments

No reviews yet Write a Review
SKU:
035-TPS54332DDAR
MPN:
TPS54332DDAR
Full Reel:
2500 (order in multiples of this to receive standard manufacturer packaging)
TPS54332DDAR 3.5A Buck Switching Regulator IC SOIC-8 PowerPAD Package
Quantity
Unit Price (ex. GST)
1 - 9
₹ 117.51
10 - 99
₹ 105.76
100 - 999
₹ 99.88
1000 or above
₹ 94.01
The TPS54332DDAR is a 28V, 3.5A high-efficiency buck switching regulator IC with Eco-mode, integrated MOSFET, and full protection features in an SOIC-8 PowerPAD package—ideal for compact, high-performance power designs. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹138.66 inc. GST
₹117.51 ex. GST
4 people looking at this.

Technical Specifications

Brand:
Texas Instruments
Case/Package:
SOIC
Mount:
Surface Mount
Number Of Pins:
8
Max Input Voltage:
28 V
Max Operating Temperature:
150 C
Max Output Current:
3.5 A
Max Output Voltage:
26.04 V
Min Input Voltage:
3.5 V
Min Operating Temperature:
-40 C
Min Output Voltage:
800 mV
Min Supply Voltage:
3.5 V
Number of Channels:
1
Number of Outputs:
1
Operating Supply Voltage:
28 V
Output Current:
3.5 A
Output Voltage:
25 V
Quiescent Current:
82 uA
Switching Frequency:
1 MHz
Full Reel Quantity:
2500

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

TPS54332DDAR – High-Efficiency 3.5A Buck Switching Regulator IC

The TPS54332DDAR is a high-performance 28V, 3.5A non-synchronous buck converter designed for efficient power management and compact design integration. This device features an integrated low-RDS(on) high-side MOSFET that ensures superior switching efficiency and minimized conduction losses. The TPS54332 automatically enters pulse-skipping Eco-mode at light loads, significantly improving efficiency for battery-powered and energy-conscious applications. With only 1μA shutdown current, it supports ultra-low power consumption in standby mode. Its current mode control with internal slope compensation simplifies design, minimizes external components, and enables the use of ceramic output capacitors for compact, cost-effective solutions. Built-in protection features such as overvoltage transient protection, cycle-by-cycle current limit, frequency foldback, and thermal shutdown ensure robust performance under varying load and fault conditions. Housed in a compact 8-pin SOIC PowerPAD package, the TPS54332DDAR is ideal for applications requiring efficient step-down DC-DC conversion in industrial, automotive, and consumer electronics.

Key Features

  • Wide Input Voltage Range: Supports up to 28V input for flexible power supply design.
  • 3.5A Output Current Capability: Delivers continuous 3.5A load current with excellent efficiency.
  • Integrated High-Side MOSFET: Low RDS(on) MOSFET ensures reduced conduction losses and high efficiency.
  • Eco-Mode for Light Loads: Automatic pulse-skipping mode enhances efficiency at low output currents.
  • Ultra-Low Shutdown Current: Consumes only 1uA in shutdown mode, ideal for battery-powered devices.
  • Current Mode Control: Simplifies compensation design and allows the use of ceramic output capacitors.
  • Adjustable UVLO: Input undervoltage lockout hysteresis can be programmed with an external resistor divider.
  • Comprehensive Protection: Features overvoltage transient protection, cycle-by-cycle current limit, frequency foldback, and thermal shutdown.
  • Compact PowerPAD Package: Available in an 8-pin SOIC PowerPAD for improved thermal performance and easy PCB mounting.
