Thunderbolt 4 PCIe x16 Expansion Docking Station for LattePanda Sigma – High-Speed PCIe Expansion: Boost GPU and peripheral performance seamlessly
The Thunderbolt 4 PCIe x16 Expansion Docking Station is a compact, cost-effective, and high-performance expansion solution designed for LattePanda Sigma users and compatible laptops/desktops. Featuring the Intel JHL6340 6th-generation Thunderbolt main control chip, it provides robust anti-interference design and low signal loss, ensuring stable high-speed data transmission for demanding applications.
With dual Type-C interfaces and a PCIe x16 slot, this dock allows you to connect high-performance GPUs, storage accelerators, and other PCIe-based devices, significantly enhancing the capabilities of your LattePanda Sigma or notebook. It supports Thunderbolt 3, Thunderbolt 4, and USB4 standards, delivering a bandwidth of up to 21.5Gbps for smooth images, fast rendering, and reliable operation. The docking station is plug-and-play with no drivers required, making it ideal for gamers, AI developers, edge computing engineers, and creators who need powerful PCIe expansion in a small footprint.
Key Features:
- High-Speed Data Bandwidth: Up to 21.5Gbps transfer rate for demanding workloads.
- PCIe x16 Slot: Supports connection of GPUs, high-speed storage, and PCIe peripherals.
- Advanced Chipset: Built with Intel JHL6340 main control chip for stable, low-loss transmission.
- Wide Compatibility: Fully supports Thunderbolt 3, Thunderbolt 4, and USB4 standards.
- Dual Type-C Ports: Flexible connectivity for various devices.
- Plug-and-Play Design: No drivers required, easy setup across platforms.
- Applications: Ideal for graphics acceleration, AI workloads, storage expansion, and high-performance edge computing.

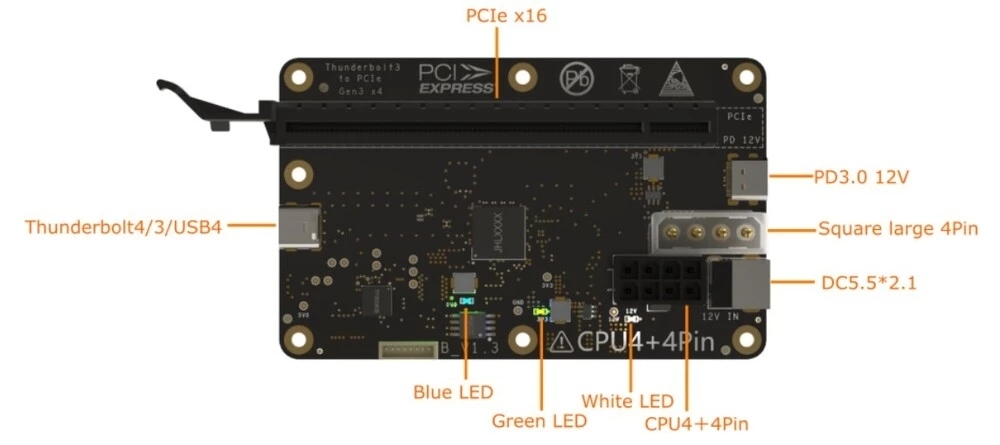

Interfaces Diagram of Thunderbolt to PCIe docking station
The docking station has an acrylic casing that protects the front and back sides. It supports a number of power supply interfaces, including PD3.0 12V, CPU 4+4Pin, big 4Pin, and DC5.5*2.1. You can select the suitable power supply method based on your requirements. Docking stations are useful for a wide range of applications due to their versatility and adaptability.

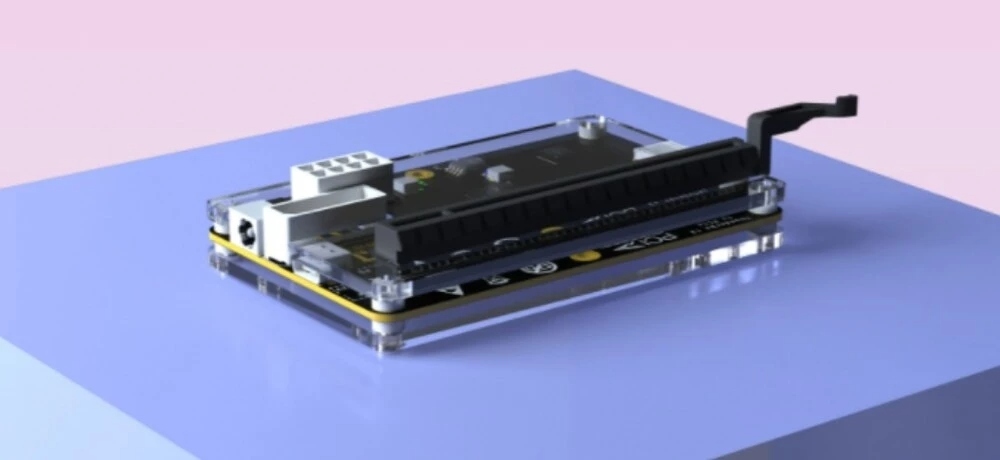

Thunderbolt to PCIe docking station Overview
Package Content:
- Convenient Thunderbolt to PCIe x16 Docking Station x1
- ATX24Pin Short Connector x1
