SparkFun GNSS Receiver - SAM-M8Q (Qwiic)

SparkFun

No reviews yet Write a Review
SKU:
057-GPS-30018
MPN:
GPS-30018

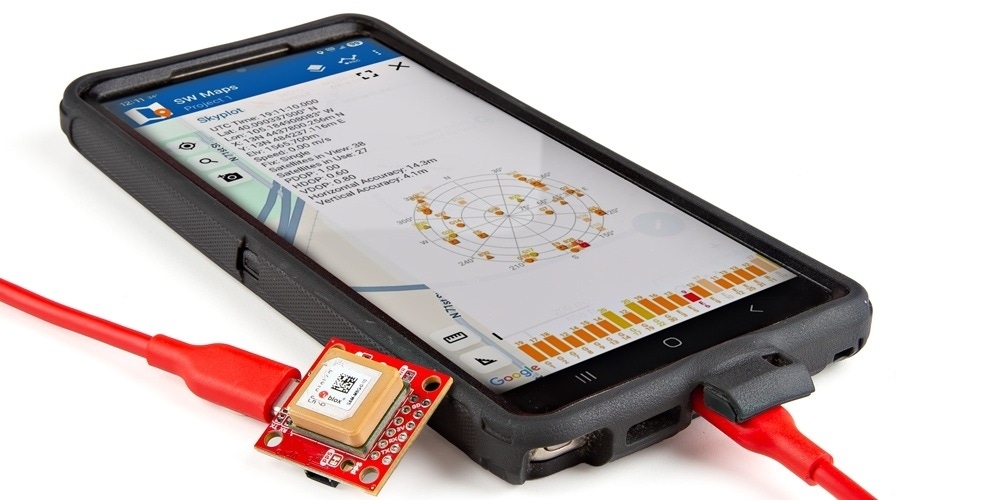

SparkFun GNSS Receiver SAM-M8Q Qwiic multi-constellation GPS board
SparkFun GNSS Receiver SAM-M8Q Qwiic board with GPS, GLONASS, Galileo, and QZSS support. Features I2C Qwiic connectors, USB-C, UART, PPS output, and compact 25.4 mm form factor. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,976.60 inc. GST
₹3,370.00 ex. GST
12 people looking at this.

Technical Specifications

Brand:
SparkFun
GNSS Module:
u-blox SAM-M8Q
Supported Constellations:
GPS, GLONASS, Galileo, QZSS
SBAS Systems:
WAAS, EGNOS, MSAS, GAGAN
Interfaces:
I2C (Qwiic), UART, USB-C
Qwiic Connectors:
2x4-pin JST-SH
Logic Voltage:
3.3 V
Board Dimensions:
25.4 mmx25.4 mm (1.00x1.00)
Mounting:
4x4-40 screw compatible holes

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

SparkFun GNSS Receiver SAM-M8Q Qwiic Board with Multi-Constellation Support for Accurate Positioning

The SparkFun GNSS Receiver – SAM-M8Q (Qwiic) is a compact, high-performance satellite navigation module designed for reliable and accurate positioning in embedded and IoT applications. Built around the u-blox SAM-M8Q GNSS receiver, it supports multiple global constellations and SBAS augmentation systems to improve accuracy, availability, and fix times. The board integrates Qwiic connectors for solder-free I2C connectivity, along with USB-C and UART interfaces, making it suitable for rapid prototyping, robotics, asset tracking, drones, timing applications, and location-aware systems. Its small 25.4 mm square form factor with mounting holes enables easy integration into space-constrained designs.

Key Features:

  • GNSS Receiver: u-blox SAM-M8Q high-sensitivity GNSS module
  • Multi-Constellation Support: GPS, GLONASS, Galileo, and QZSS for improved global coverage
  • SBAS Compatibility: WAAS, EGNOS, MSAS, and GAGAN for enhanced positional accuracy
  • Qwiic Connectivity: Dual Qwiic connectors with 4-pin JST-SH for easy I2C integration
  • USB Interface: USB-C connector for power and configuration
  • I/O Access: 0.1-inch PTH pins exposing power, I2C, UART, PPS, interrupt, and reset
  • Timing Output: PPS signal for precise timing and synchronisation applications
  • Power Control: 3.3 V enable pin for power management
  • Mechanical Design: Four 4-40 compatible mounting holes for secure installation
