Technical Specifications
Brand:
Littelfuse, Inc

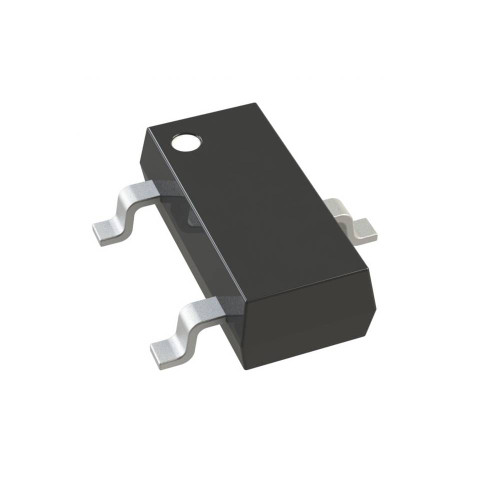

Case/Package:
SOT-23-3
Mount:
Surface Mount
Number Of Pins:
3
Number of Terminals:
3
Breakdown Voltage:
5.5 V
Capacitance:
30 pF
Clamping Voltage:
6.8 V
Composition:
Zener
Diode Type:
Avalanche
Direction:
Unidirectional
Element Configuration:
Common Anode
ESD Protection:
Yes
Leakage Current:
100 nA
Max Operating Temperature:
125 C
Max Power Dissipation:
225 mW
Max Reverse Leakage Current:
100 nA
Min Operating Temperature:
-40 C
Number of Channels:
2
Number of Elements:
2
Number of Unidirectional Channels:
2
Operating Supply Voltage:
5 V
Peak Pulse Power:
225 mW
Polarity:
Unidirectional
Power Dissipation:
225 mW
Power Line Protection:
No
Reverse Standoff Voltage:
5.5 V
Termination:
SMD/SMT
Voltage Rating (DC):
5 V
Working Voltage:
5.5 V
Depth:
1.35 mm
Height:
1.12 mm
Length:
3.04 mm
Width:
1.4 mm
