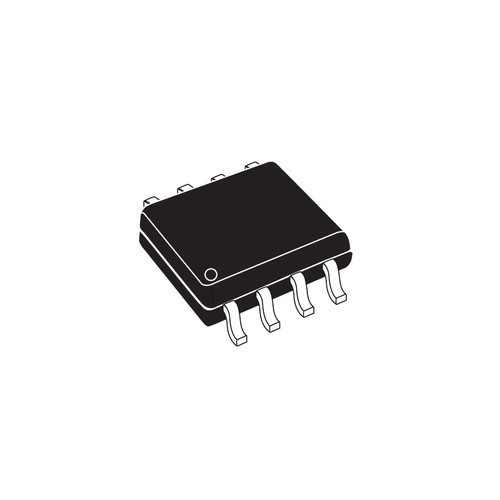

SN65HVD485EDR - RS-485 Transceiver Interface IC SOIC-8

Texas Instruments

No reviews yet Write a Review
SKU:
035-SN65HVD485EDR
MPN:
SN65HVD485EDR
SN65HVD485EDR RS485 transceiver IC SOIC-8 low power high speed communication chip
Quantity
Unit Price (ex. GST)
1 - 9
₹ 59.41
10 - 99
₹ 53.47
100 or above
₹ 47.53
SN65HVD485EDR RS-485 transceiver IC with 5V supply, 10Mbps data rate, low power consumption, and high ESD protection. Ideal for industrial and long-distance communication. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹70.10 inc. GST
₹59.41 ex. GST
11 people looking at this.

Technical Specifications

Brand:
Texas Instruments
Case/Package:
SOIC
Contact Plating:
Gold
Mount:
Surface Mount
Number Of Pins:
8
Weight:
72.603129 mg
Data Rate:
10 Mbps
ESD Protection:
Yes
Interface:
RS-485
Logic Function:
Transceiver
Max Operating Temperature:
85 C
Max Supply Current:
2 mA
Max Supply Voltage:
5.5 V
Min Operating Temperature:
-40 C
Min Supply Voltage:
4.5 V
Nominal Supply Current:
2 mA
Number of Drivers:
1
Number of Receivers:
1
Number of Transceivers:
1
Number of Transmitters:
1
Operating Supply Current:
2 mA
Operating Supply Voltage:
5 V
Simplex/Duplex:
Half Duplex

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Datasheet

5V Low-Power RS-485 Transceiver IC with 10Mbps Data Rate and High Noise Immunity (SOIC-8)

The SN65HVD485EDR is a robust RS-485 transceiver IC designed for reliable half-duplex communication in industrial and embedded systems. Operating from a single 5V supply, it complies with the TIA/EIA-485A standard and supports high-speed data transmission up to 10 Mbps over long twisted-pair cables. Its low supply current consumption makes it suitable for power-sensitive applications while maintaining stable performance in demanding environments.

Engineered for high reliability, this device features wide common-mode voltage tolerance and strong ESD protection, ensuring consistent communication in electrically noisy conditions such as industrial automation and telecom systems. Integrated protection mechanisms including thermal shutdown and power-on reset enhance system safety and stability. With compatibility to industry-standard footprints, it serves as an efficient drop-in replacement in existing RS-485 designs.

Key Features

  • High-Speed Data Transmission: Supports up to 10 Mbps over RS-485 networks
  • Low Power Consumption: Typically <2 mA operating current, <1 mA in shutdown mode
  • RS-485 Standard Compliance: Meets TIA/EIA-485A specifications
  • Half-Duplex Communication: Suitable for two-wire bus systems
  • Wide Common-Mode Range: Reliable operation in noisy environments
  • High ESD Protection: Enhanced robustness for industrial applications
  • Thermal Shutdown Protection: Prevents damage under fault conditions
  • Power-On Reset: Ensures stable startup with high-impedance outputs
  • Drop-In Compatibility: Matches SN75176 footprint
  • Compact Package: SOIC-8 for efficient PCB design
