Technical Specifications
Brand:
Diodes Incorporated

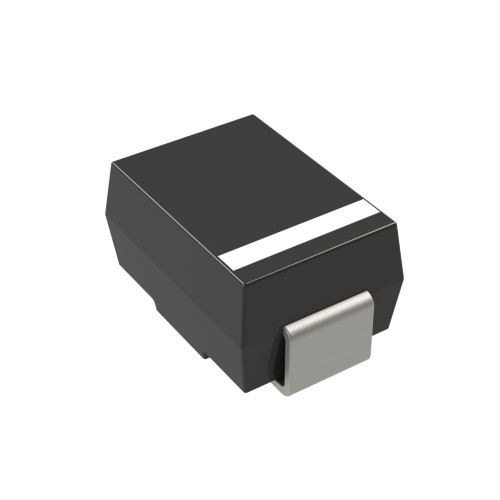

Case/Package:
SMA
Contact Plating:
Tin
Mount:
Surface Mount
Number of Pins:
2
Number of Terminals:
2
Breakdown Voltage:
6.8 V
Capacitance:
1.2 nF
Clamping Voltage:
9.2 V
Composition:
Zener
Direction:
Bidirectional
Element Configuration:
Single
ESD Protection:
No
Forward Voltage:
3.5 V
Leakage Current:
1.6 mA
Max Breakdown Voltage:
7.25 V
Max Junction Temperature (Tj):
150 C
Max Operating Temperature:
150 C
Max Output Current:
43.5 A
Max Power Dissipation:
1 W
Max Reverse Leakage Current:
1.6 mA
Max Surge Current:
40 A
Min Breakdown Voltage:
6.4 V
Min Operating Temperature:
-55 C
Number of Bidirectional Channels:
1
Number of Channels:
1
Number of Elements:
1
Peak Pulse Current:
43.5 A
Peak Pulse Power:
400 W
Polarity:
Bidirectional
Power Dissipation:
400 W
Power Line Protection:
No
Power Rating:
400 W
Reverse Breakdown Voltage:
6.4 V
Reverse Standoff Voltage:
5 V
Termination:
SMD/SMT
Test Current:
10 mA
Voltage Rating (DC):
5 V
Working Voltage:
5 V
Height:
2.4 mm
Length:
4.6 mm
Width:
2.92 mm
