SenseCAP Tracker T1000-E LoRaWAN multi-sensor hybrid positioning device by Seeed Studio
SenseCAP Tracker T1000-E is a compact LoRaWAN tracker with GNSS/WiFi/BLE positioning, multi-sensor data and easy SenseCraft App setup. Ideal for asset monitoring, logistics, personal safety and indoor–outdoor IoT tracking. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,850.21 inc. GST
₹3,262.89 ex. GST
15 people looking at this.

Technical Specifications

Brand:
Seeed Studio
Backhaul:
LoRaWAN (v1.0.4 Class A)
Bluetooth:
Bluetooth v5.1, setting via App
LoRaWAN Channel Plan:
IN865/EU868/US915/AU915/AS923/ KR920/RU864
Temperature:
Range: -20 to 60 C ; Accuracy: +-1 C Resolution: 0.1 C
Light:
0 to 100%
Antenna:
Internal (GNSS/LoRa/Wi-Fi/BLE)
Communication Distance:
2 to 5km
IP Rating:
IP65
Dimensions:
85x55x6.5 mm
Device Weight:
32g
Operating Temperature:
-20 C to+60 C
Operating Humidity:
5% - 95%
GNSS Constellation:
T1000-A/B: GPS/GLONASS/Galileo/ BeiDou/QZSS T1000-C/D: GPS/ BeiDou
GNSS Sensitivity:
-145dBm cold start / -160 dBm Tracking
GNSS Location Accuracy:
~1m CEP, GPS, -130dBm
Wi-Fi Positioning:
Passive scanning, uploads the scanned 4 MAC addresses
Bluetooth Positioning:
uploads the scanned 3 best signal MAC addresses of Beacon
Data Cache:
Cache 1000 data when there is no LoRaWAN network
Battey Capacity:
Rechargeable lithium battery, 700mAh
Battery Life Estimates:
4 months on a single charge(uplink every 1 hour, only GNSS data)
Battery Life Monitoring:
Periodic uplink battery level
Charge Cable (Adapter not included):
USB magnetic charging cable, 1 meter
Power Input Voltage:
4.7 to 5.5V DC
Charging Temperature:
0 to+45 C

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Tracker T1000 Datasheet
Tracker T1000-A/B User Guide
Tracker Battery Life Calculator
SenseCAP T1000 3D Printing Charging Station Files by Alberto Gorni
IP65 Test Report
CE Certification
FCC Certification
TELEC Certification
RoHS Certification

SenseCAP Tracker T1000-E for LoRaWAN – Seeed Studio


The SenseCAP Tracker T1000-E for LoRaWAN is a compact, power-efficient and highly capable tracking device engineered for precise indoor and outdoor positioning across long-range LoRaWAN networks. Built to support multi-environment localisation, the T1000-E integrates GNSS, Wi-Fi and Bluetooth for hybrid indoor–outdoor positioning, ensuring reliable accuracy across diverse scenarios. Equipped with onboard temperature, light and 3-axis accelerometer sensors, the device enhances tracking with real-time environmental and motion data. Configuration is seamless through the SenseCraft App, allowing users to adjust device parameters, update firmware and manage deployments with ease.

With strong LoRaWAN compatibility, the SenseCAP T1000-E ensures fast network access and stable transmission. User-friendly buttons offer quick control for power, Bluetooth setup and SOS alerts. Designed for logistics, personal safety, asset monitoring and smart IoT applications, this tracker delivers dependable performance with minimal power consumption.

Key Features

  • Multi-Sensor Integration: Built-in temperature, light and 3-axis accelerometer sensors enrich tracking with environmental and motion data.
  • Hybrid Positioning: Supports GNSS, Wi-Fi and Bluetooth for accurate indoor/outdoor location tracking.
  • Strong LoRaWAN Support: Ensures fast, reliable network access and efficient configuration.
  • Easy Device Setup: Quick configuration and updates via the SenseCraft App.
  • User-Friendly Buttons: Simple operations for power, Bluetooth pairing and SOS alerts.
  • Compact, Low-Power Design: Ideal for personal safety, asset tracking and IoT monitoring use cases.

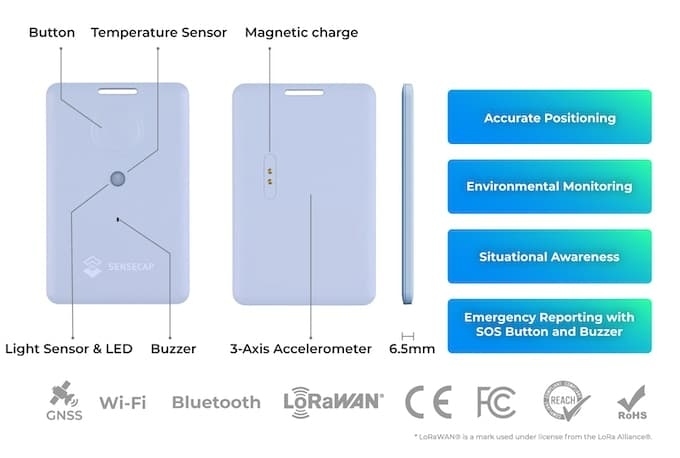

Hardware Overview

Package Content:

  • Trackerx1
  • USB Cable (Adapter not included)x1
  • Quick Startx1
