SC132GS Binocular Stereo Camera Module 1.3MP Suitable For RDK X5 Global Shutter, 157 DFoV
The SC132GS Binocular Stereo Camera Module is a high-speed stereo depth imaging solution designed for precise vision and motion analysis in advanced embedded systems. Built on dual SC132GS global shutter sensors with onboard MIPI interfaces, it supports synchronised dual exposure and external trigger operation for accurate depth capture. Each channel delivers a resolution of 1280x1080 with a maximum frame rate of up to 120 fps, ensuring reliable performance in fast-moving scenes. With an 80 mm baseline, high dynamic range performance featuring 40 dB SNR, and enhanced sensitivity in the 850 nm and 940 nm near-infrared bands, this module is well suited for robot vision, machine vision inspection, and real-time motion monitoring, especially when integrated with platforms such as the RDK X5.
Key Features
- Dual SC132GS Global Shutter Sensors – Ensures accurate image capture without motion distortion
- High-Speed Stereo Imaging – Supports up to 120 fps for real-time vision and motion tracking
- 1280x1080 Resolution Per Channel – Delivers clear and detailed stereo images
- 80 mm Stereo Baseline – Enables reliable depth perception and spatial accuracy
- HDR Performance with 40 dB SNR – Maintains image clarity in high-contrast lighting conditions
- Near-Infrared Sensitivity – Optimised for 850 nm and 940 nm NIR applications
- MIPI Interface with Synchronised Operation – Supports dual exposure and external trigger control
- Optimised for Embedded Vision – Suitable for RDK X5, robotics, and industrial vision systems

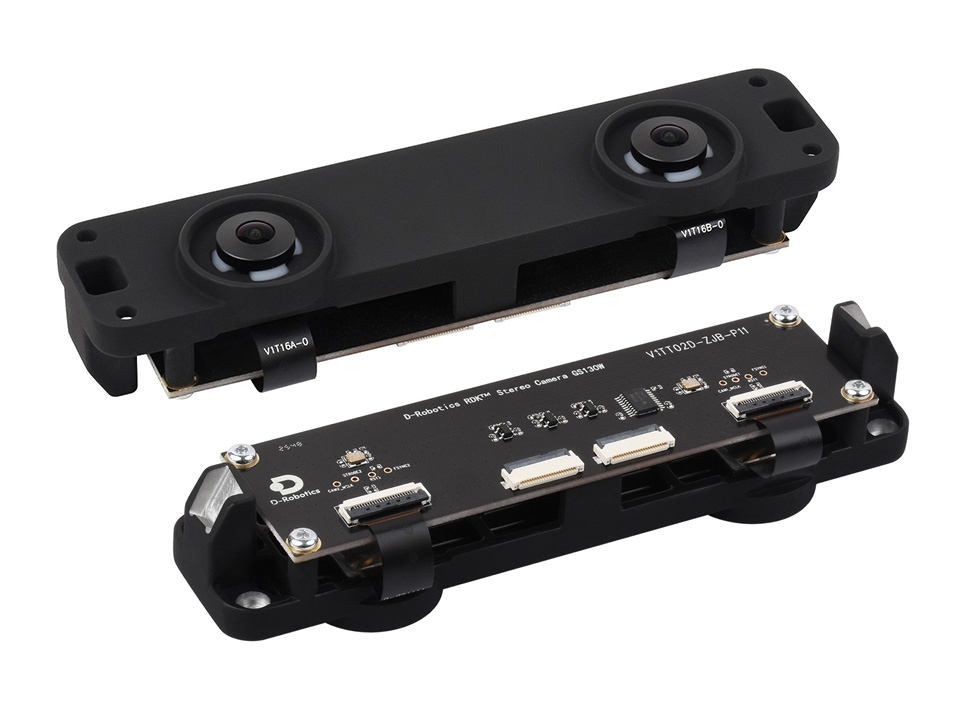

RDK Binocular Stereo Camera Module

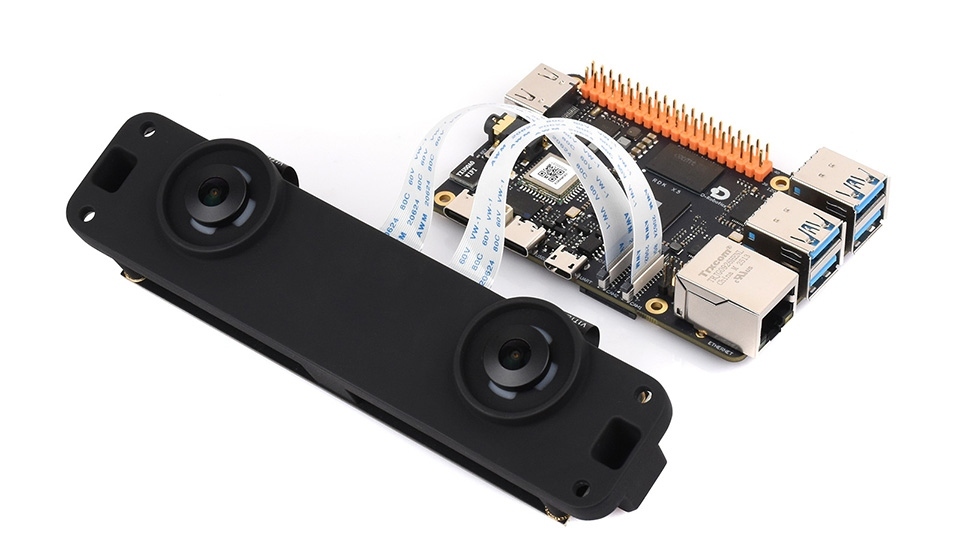

Connection Example
For Reference only, the RDK X5 is NOT included.

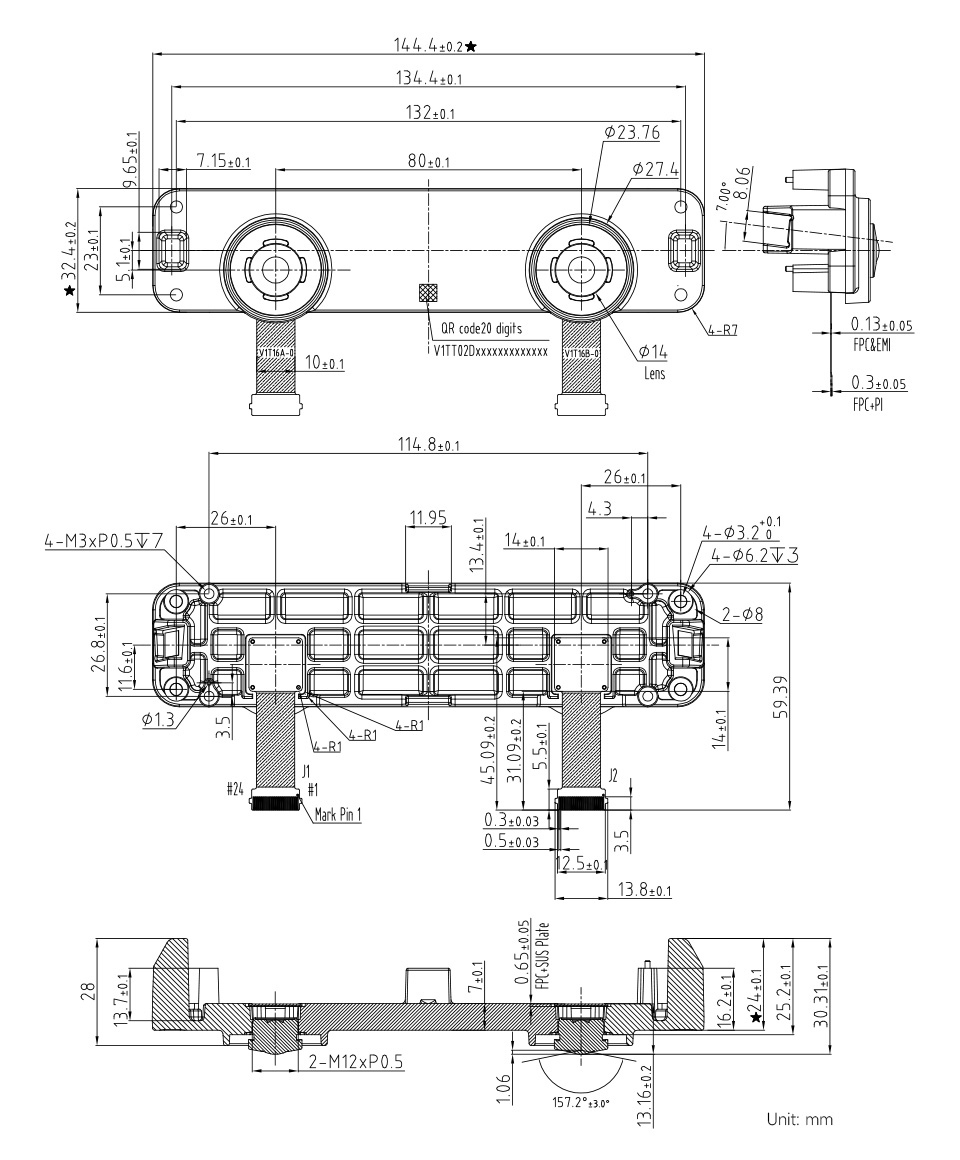

Dimensions
Package Includes:
- RDK Stereo Camera Module GS130Wx1
- 22PIN cable ~100mmx2
