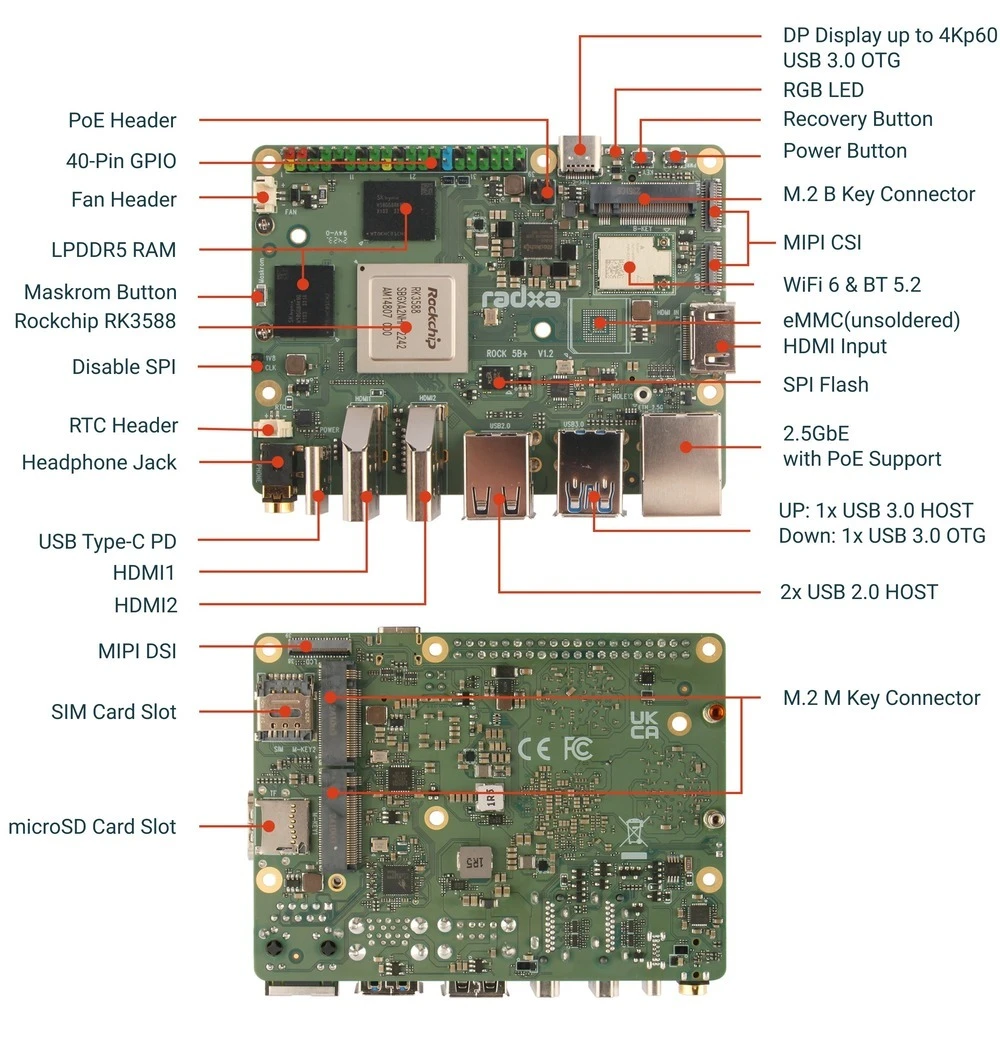

Technical Specifications
Brand:
Radxa
SoC:
Rockchip RK3588
CPU:
Quad Cortex-A76 @ 2.2~2.4GHz and a Quad Cortex-A55 @ 1.8GHz
GPU:
Arm Mali G610MC4- OpenGL ES1.1, ES2.0, and ES3.2- OpenCL 1.1, 1.2 and 2.2- Vulkan 1.1 and 1.2- Embedded high performance 2D image acceleration module
NPU:
Supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration, Computing power is up to 6TOPs
Multimedia:
H.265 / H.264 / AV1 / AVS2 multivideo decoder up to 8K@60fps, H.264 / H.265 multivideo encoder up to 8K@30fps
RAM:
64bit LPDDR5- 4GB- 8GB- 16GB- 24GB- 32GB
Storage:
1xSPI Flash for Bootloader, 1xOptional Onboard eMMC, 1xmicroSD Card Slot, 2x M.2 M Key Connector each with PCIe 3.0 2-lane
Audio:
1x 4‐ring 3.5mm Headphone Jack with Microphone Input
Display:
1xStandard HDMI 2.1 supporting up to 8Kp60, 1x Standard HDMI 2.1 supporting up to 4Kp60, 1x DP supporting up to 4Kp60 via USB Type C port, 1x 4-lane MIPI DSI supporting up to 1080p60,
Display:
Supports Simultaneous Output of 4 Displays: 4K + 4K + 4K + 2K Resolutions, Supports Simultaneous Output of 3 Displays: 8K + 4K + 2K Resolutions
Video Input:
1x Standard HDMI Input supporting up to 4Kp60, 2x 4-lane or 4x 2-lane MIPI CSI for camera
USB:
1xUSB Type-C port, - DP display up to 4Kp60- USB 3.1 Gen1 OTG2xUSB 3.1 Gen1 Type A HOST port, 2x USB 2.0 Type A HOST port
Ethernet:
1x2.5 Gigabit Ethernet port with PoE support(Additional PoE HAT Required)
Wireless:
Onboard WiFi 6 & BT 5.2 with Dual Antenna Connector
Mobile Network:
1xM.2 B Key Connector, Standard M.2 3042 B Key modules are supported.1x SIM Card Socket
Power Requirements:
USB Type-C PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A, Power adapter with fixed voltage in 5.2V to 20V range on the USB Type-C port, 5V Power applied to the GPIO PIN 2 & 4
Software:
Radxa OS, Android
Operating Conditions:
Recommended environmental temperature: 0 ~ 50 C
Dimension:
100 mmx75 mm
