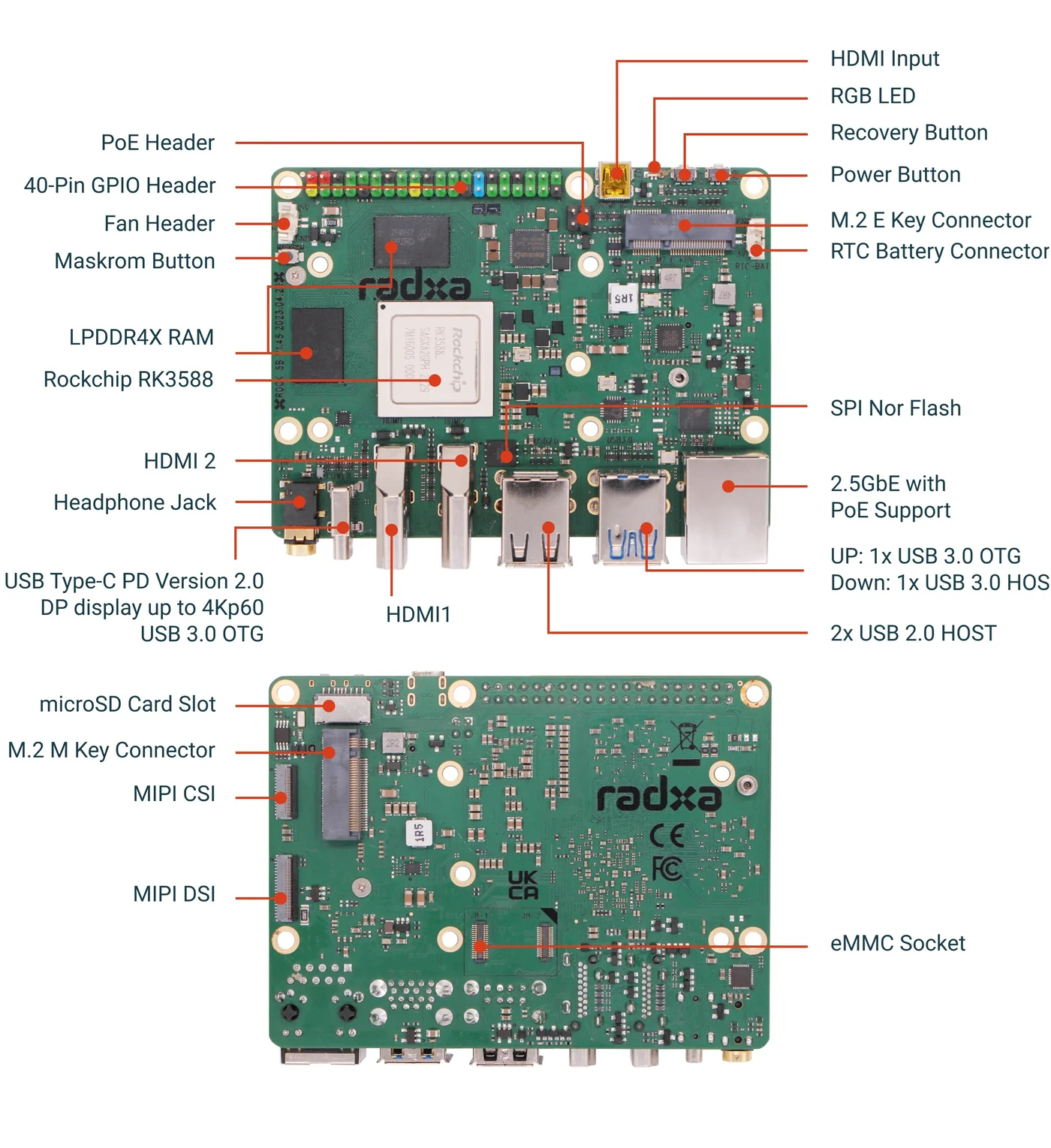

Technical Specifications
Brand:
Radxa
SoC:
Rockchip RK3588
CPU:
Quad Cortex-A76 @ 2.2~2.4GHz and a Quad Cortex-A55 @ 1.8GHz
GPU:
Arm Mali G610MC4,- OpenGL ES1.1, ES2.0, and ES3.2,- OpenCL 1.1, 1.2 and 2.2,- Vulkan 1.1 and 1.2,- Embedded high performance 2D image acceleration module
NPU:
Supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration, Computing power is up to 6TOPs
RAM:
64bit LPDDR4x,4GB,8GB,16GB,32GB
Storage:
SPI Flash: SPI Flash for Bootloader,eMMC Connector: Support high performance eMMC module up to 512GB,Micro SD Card Slot: Support microSD cards with SDHC / SDXC / UHS-I speed,M.2 M Key Connector: Support 2280 NVMe SSD(4-lane PCIe 3.0)
Audio:
1x4‐ring 3.5mm Headphone Jack with mic input
Display:
1xStandard HDMI 2.1 supporting up to 8Kp60,1xStandard HDMI 2.1 supporting up to 4Kp60,1xDP via USB Type C port,1xMIPI DSI supporting up to 1080p60,Able to provide 4 display outputs at the same time
Video Input:
1xMicro HDMI Input supporting up to 4Kp60
Camera:
1x4-lane or 2x 2-lane MIPI CSI for camera up to 48M
Multimedia:
H.265 / H.264 / AV1 / AVS2 multivideo decoder up to 8K@60fps,H.264 / H.265 multivideo decoder up to 8K@30fps
USB:
1x Full function USB Type-C port,- Supporting PD Version 2.0,- DP display up to 4Kp60,- USB 3.1 Gen1,1x USB 3.1 Gen1 Type A HOST port,1x USB 3.1 Gen1 Type A HOST port,2x USB 2.0 Type A HOST port
Ethernet:
1x2.5 Gigabit Ethernet port (supports PoE with add-on PoE HAT)
Wireless:
Support Standard M.2 WiFi 6(E) / BT 5 module,Support Radxa Wireless Module A8
Miscellaneous:
1xRTC battery connector,1xPWM fan connector,1xPower button,1xRecovery button,1x RGB LED for power indicator, system status indicator and custom usage
Power Requirements:
USB Type-C PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A,Power adapter with fixed voltage in 5.2V to 20V range on the USB Type-C port,5V Power applied to the GPIO PIN 2 & 4
Operating Conditions:
Recommended environmental temperature: 0 ~ 50 C
Dimension:
100 mmx75 mm
