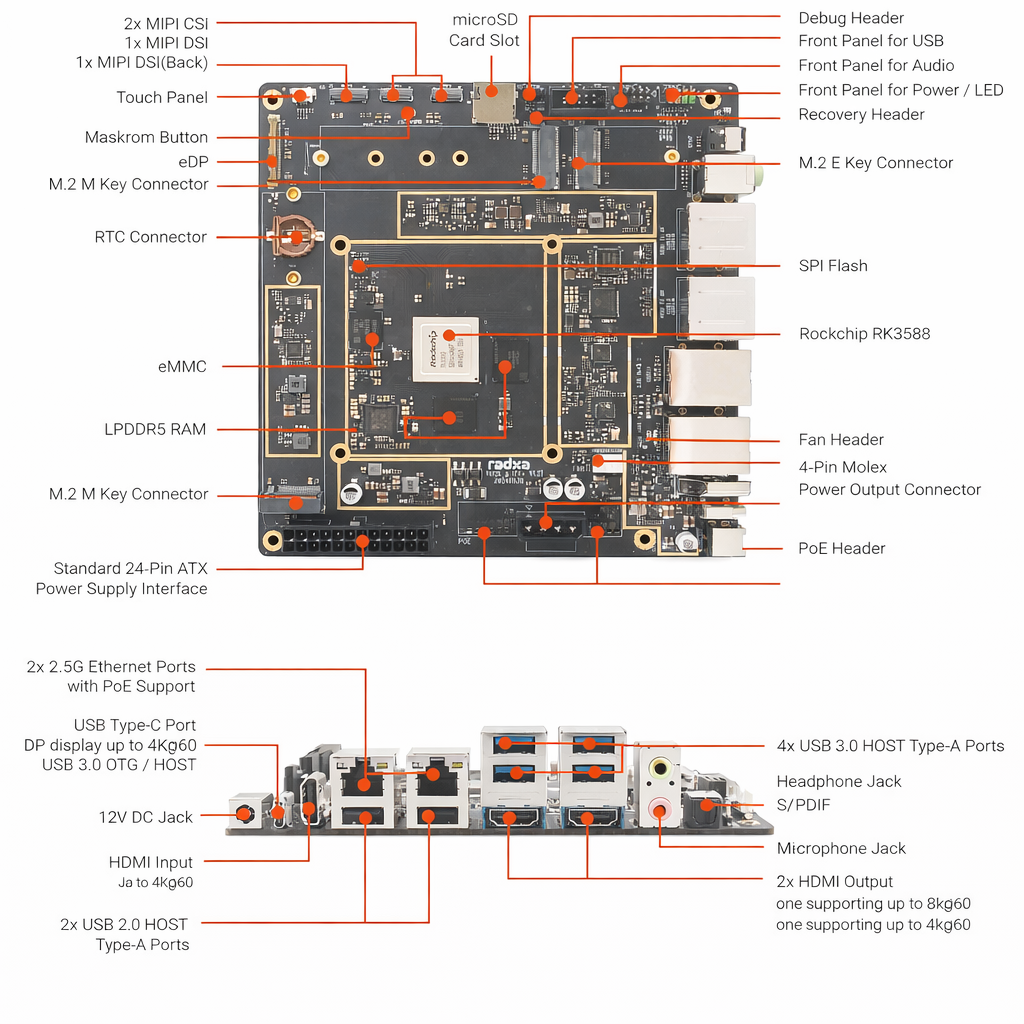

Technical Specifications
Brand:
Radxa
SoC:
Rockchip RK3588
CPU:
Quad Cortex-A76 @ 2.2~2.4GHz and a Quad Cortex-A55 @ 1.8GHz
GPU:
Arm Mali G610MC4- OpenGL ES1.1, ES2.0, and ES3.2 - OpenCL1.1, 1.2 and 2.2 - Vulkan1.1 and 1.2 - Embedded high performance 2D image acceleration module
NPU:
Supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration,Computing power is up to 6TOPs
RAM:
LPDDR5 - 4GB - 8GB - 16GB - 32GB
Multimedia:
H.265 / VP9 / AVS2 multivideo decoder up to 8K@60fps,H.264 multivideo decoder up to 8K@30fps,H.265 / H.264 multivideo encoder up to 8K@30fps
Audio:
1xHeadphone Jack,1x Microphone Jack,1x Front Audio header,1x S/PDIF
Video Output:
2x Standard HDMI, one supporting up to 8Kp60, one supporting up to 4Kp60,1x DP up to 4Kp60 via USB Type-C Port,2x 4-lane MIPI DSI for MIPI LCD,1x eDP with Touch Panel support, Able to provide 4 display outputs at the same time
Video Input:
1x HDMI Input up to 4Kp60,2x 4‑lane MIPI CSI or 4x 2‑lane MIPI CSI
USB:
2x USB 2.0 Type-A HOST Ports,4x USB 3.0 Type-A HOST Ports,1x USB 3.0 OTG / HOST Type-C Port,2x USB 2.0 Interface via Front USB header
Ethernet:
2x 2.5G Ethernet Ports both with PoE support(Additional PoE Module Required)
Wireless:
1x M.2 E Key Connector for WiFi 6
Other:
1x PWM fan connector,1x RTC Socket(CR1220 battery),1x Front Panel header for Power Button / Reset Button / Status LED
Power:
1x12V DC Power Jack(55x25mm),1x Standard 24-Pin ATX Power Supply Interface,1x PoE Header(Additional PoE Module Required)
Operating System:
Radxa OS / Debian / Android
Operating Conditions:
0 ~ 50 C
Dimension:
170 mmx170 mm
