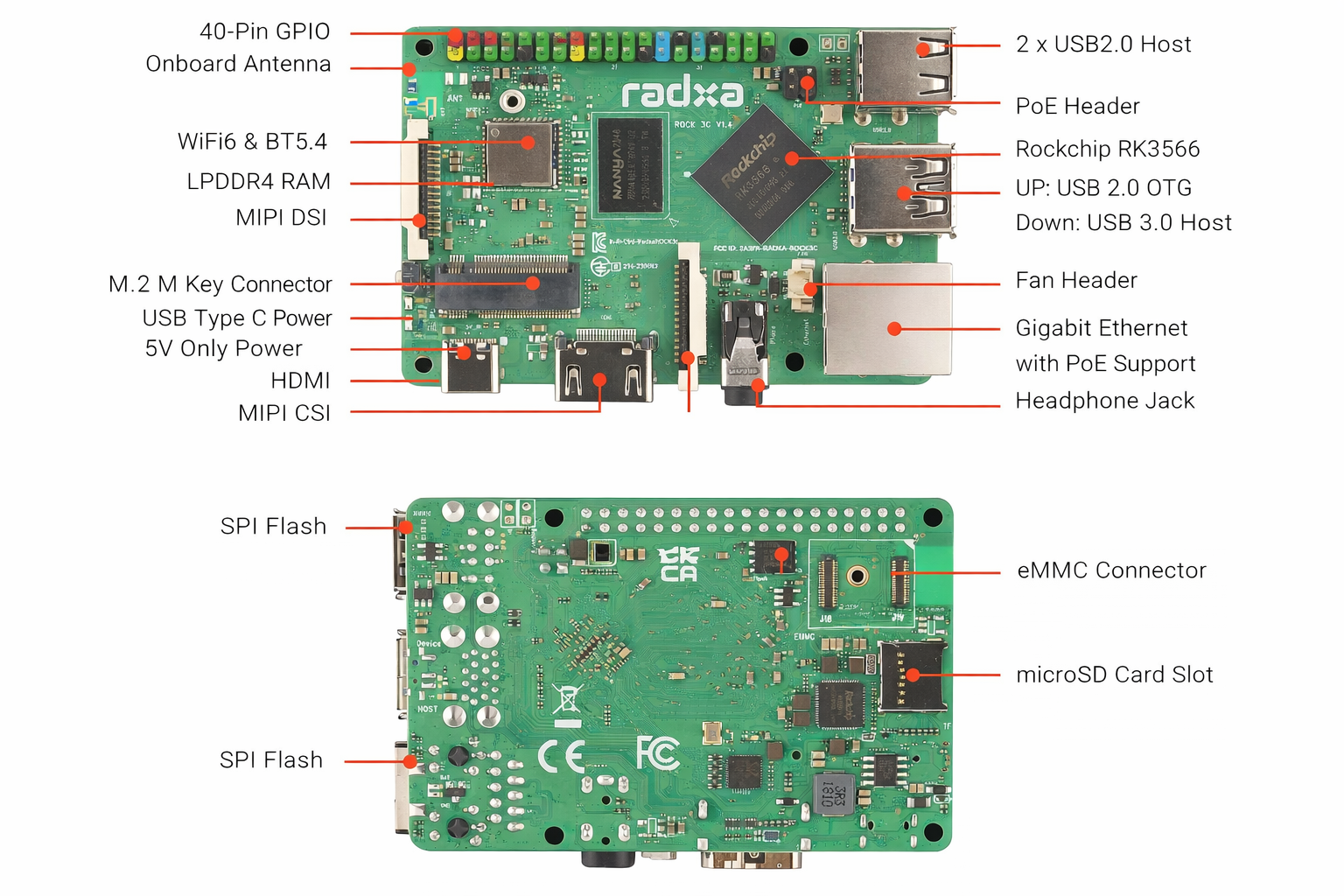

Technical Specifications
Brand:
Radxa
SoC:
Rockchip RK3566
CPU:
Quad-core Arm Cortex-A55 (Armv8) 64-bit @ 1.6GHz
GPU:
Arm Mali-G52-2EE - OpenGL ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2 - Vulkan 1.1, OpenCL 2.1
NPU:
1 TOPs @ INT8, support INT8, INT16, FP16, BFP16 Support deep learning frameworks such as TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android NN, etc
RAM:
32bit LPDDR4 - 1GB - 2GB - 4GB
Storage:
1x eMMC Module Connector 1x microSD Card Slot 1x M.2 M Key 2230 Slot SATA through the Radxa Penta SATA HAT
Multimedia:
H.264 / H.265 decoder up to 4K@60fps H.264 / H.265 encoder up to 1080P@60fps
USB:
2xUSB 2.0 HOST Ports, 1xUSB 2.0 OTG / HOST Ports 1x USB 3.0 HOST Ports
Audio:
1x4‐ring 3.5mm Headphone Jack with Microphone Input
Display:
Display via HDMI or MIPI DSI, They can not work at the same time
Camera:
1x2-lane MIPI CSI for camera
Ethernet:
1xGigabit Ethernet port(supports PoE with add-on PoE HAT)
Wireless:
WiFi5 & BT5,WiFi6 & BT5.4
Connectivity:
40x user GPIO supporting various interface options: up to 5 xUART,1xSPI bus, up to 2xI2C bus ,1xPCM/I2S up to 6xPWM up to 28xGPIO, 2x5V DC power in ,2x3.3V power pin
Power:
USB Type‑C 5V 5V Power from the GPIO PIN 2 & 4
Operating Conditions:
0 ~ 50 C
Dimension:
85 mmx56 mm
