Radxa ROCK 2F 4K Card Computer Rockchip RK3528A SBC

Radxa

No reviews yet Write a Review
SKU:
498-RS111-D4E0
MPN:
RS111-D4E0
Radxa ROCK 2F RK3528A Quad Core Single Board Computer With 4K WiFi 6 Bluetooth 5.4
Radxa ROCK 2F RK3528A single board computer with quad core Cortex A53 4K video decoding WiFi 6 Bluetooth 5.4 and PCIe expansion Ideal for IoT embedded systems and multimedia applications View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,737.56 inc. GST
₹3,167.42 ex. GST

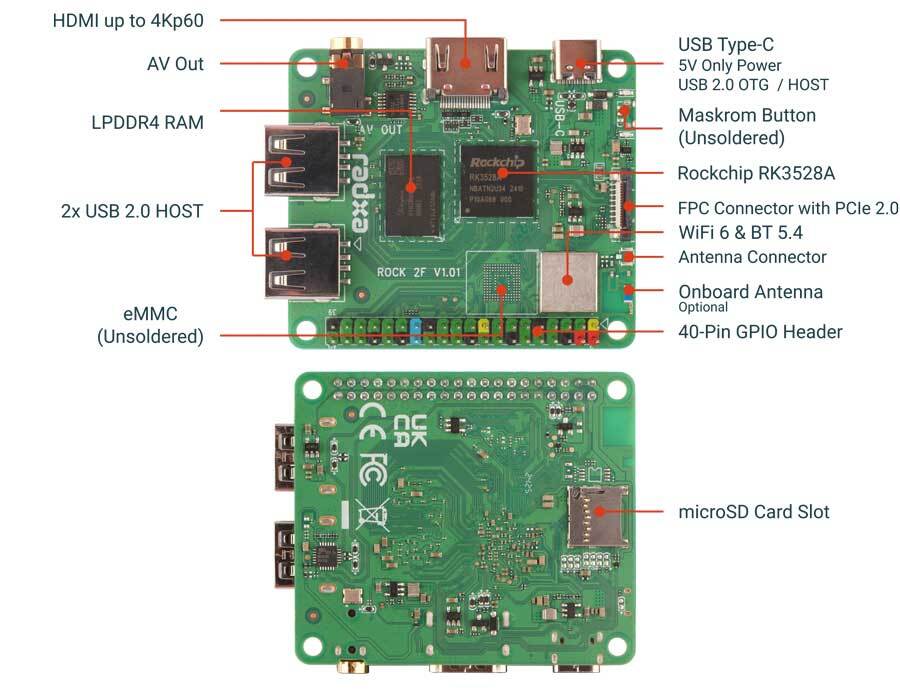

Technical Specifications

Brand:
Radxa
Processor:
Rockchip RK3528A
CPU:
Quad-core ARM Cortex-A53, frequency up to 2.0GHz
GPU:
RM Mali-450 GPU Supports OpenGL® ES1.1, ES2.0，OpenVG® 1.1
Storage:
Options: Onboard eMMC: 0GB / 8GB / 16GB / 32GB / 64GB; microSD Card
RAM:
Options: 1GB / 2GB / 4GB 64 bit LPDDR4
USB:
2x USB2.0 Type A HOST Ports 1x USB 2.0 Type-C OTG / HOST Port
Audio:
Supports high-quality analog audio output through a 4-ring 3.5mm headphone jack. Analog audio output can directly drive 32-ohm headphones.
PCIe:
FPC Interface with PCIe 2.0 1-lane
Wireless:
IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and BT 5.4 with BLE Onboard Antenna or Antenna Connector (Optional)
40-Pin GPIO Header:
1 x ADC 2 x I2C 1 x SPI 4 x UART 5 x PWM 2 x 5V DC power in/out 2 x 3.3V power out 28 x GPIO
Power Supply:
Only 5V, current > = 2A
Form Factor:
56mm x 65 mm
Multimedia:
H.264, H.265 and AVS2 decoder by 4Kx2K@60fps; H.264 and H.265 encoder by 1920x1080@60fps
Display:

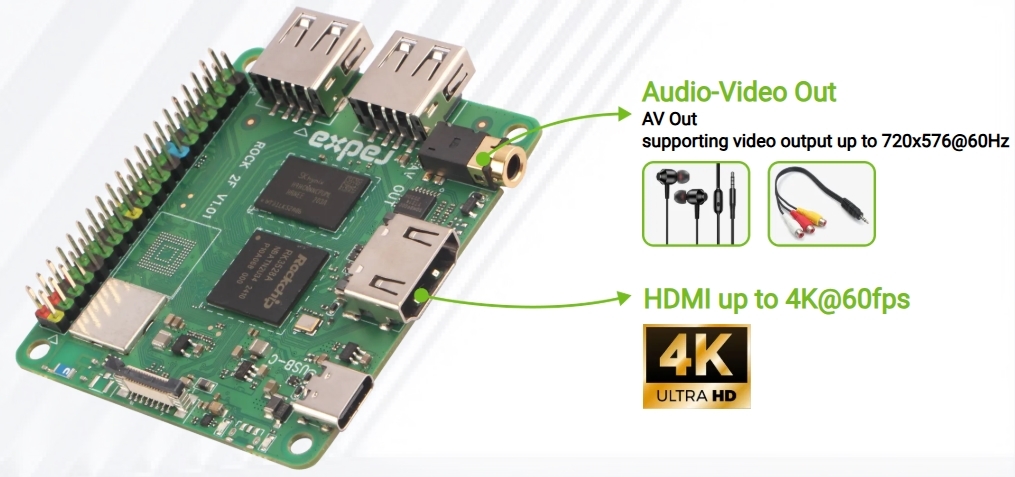

Supports dual display output via one HDMI port and one AV Out port. HDMI supports up to 4Kp60, AV Out supports up to 720x576@60. HDMI supports CEC and HDMI 2.0

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Compact Quad Core Arm Cortex A53 Single Board Computer With 4K Video Support WiFi 6, and PCIe Expansion

The Radxa ROCK 2F single-board computer powered by Rockchip RK3528A is built for embedded systems, IoT development, and multimedia processing applications. With a quad-core ARM Cortex-A53 processor and Mali-450 GPU, it delivers reliable performance for edge computing, digital signage, and smart automation projects. The board supports advanced video decoding up to 4K resolution, ensuring smooth playback for high definition media applications.

This SBC provides flexible storage options with onboard eMMC and microSD card support, allowing easy deployment across prototyping and production environments. Integrated WiFi 6 and Bluetooth 5.4 enable high-speed wireless connectivity for modern IoT solutions. The PCIe interface via FPC connector expands functionality with support for NVMe SATA, and router modules, making it suitable for scalable and modular hardware designs.

Key Features

  • Processor Architecture Quad-core ARM Cortex A53 CPU for efficient embedded computing
  • Graphics Processing Arm Mali 450 GPU for stable graphical output
  • 4K Video Decoding Supports H264 H265 and AVS2 decoding up to 4K at 60fps
  • Full HD Encoding H264 and H265 encoding up to 1080p at 60fps
  • Flexible Storage Onboard eMMC and microSD card slot for storage expansion
  • Display Output HDMI supports up to 4K at 60fps
  • Wireless Connectivity WiFi 6 and Bluetooth 5.4 support for fast communication
  • PCIe Expansion PCIe 2.0 x1 via FPC connector supports NVMe SATA and router HAT
  • USB Interfaces One USB Type-C OTG or Host port and two USB Type A Host ports
  • Audio Video Output AV interface for multimedia applications

Interfaces
