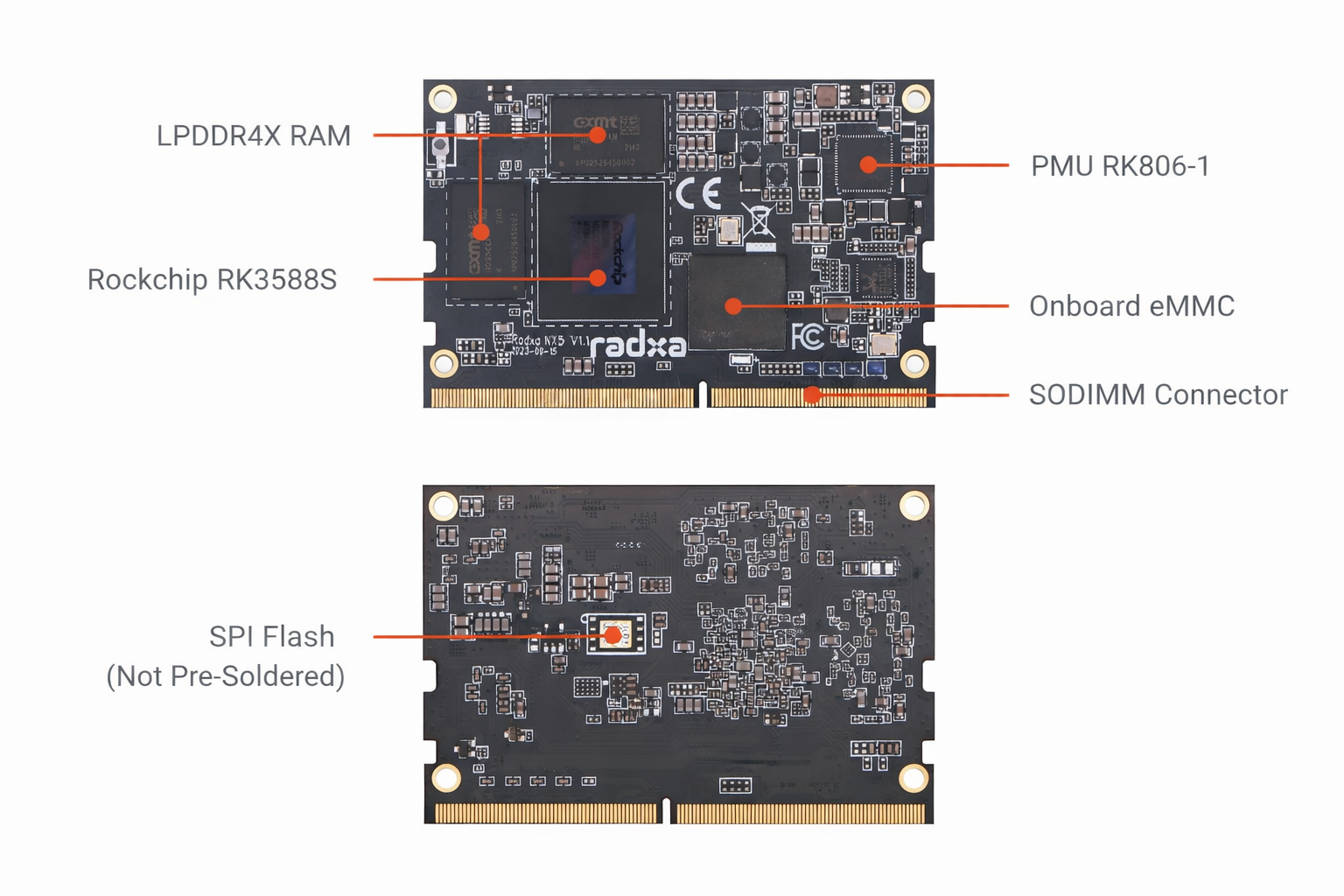

Technical Specifications
Brand:
Radxa
SoC:
Rockchip RK3588S
CPU:
Quad Cortex‑A76 @ 2.2~2.4GHz and a quad Cortex‑A55 @ 1.8GHz based on Arm DynamIQ configuration
GPU:
Arm Mali G610MP4 GPU - OpenGL ES1.1, ES2.0, and ES3.2 - OpenCL 1.1, 1.2 and 2.2 - Vulkan 1.1 and 1.2 - Embedded high performance 2D image acceleration module
NPU:
NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration Computing power is up to 6TOPs
RAM:
64bit LPDDR4x - 1GB - 4GB - 8GB - 16GB
Storage:
Optional 4GB / 8GB / 16GB / 32GB, up to 512GB Onboard eMMC Compatible with eMMC 5.1 Supports SDMMC interface for data storage and OS booting using SD cards
Multimedia:
VP9 / H.265 / AVS2 decode 8K@60fps H.264 / H.265 encode 8K@30fps etc
Ethernet:
1xHDMI TX up to 8K@60hz 1x eDP TX up to 4K@60Hz 1x DP TX (and USB3.0 Combo) up to 8K@30Hz 1x 2-lane MIPI D/C PHY TX
Camera:
2x2-lane or 1x4-lane MIPI CSI for Camera 1x2-lane MIPI D/C-PHY RX 1x4-lane MIPI D/C-PHY RX
Audio:
Up to 2xI2S Up to 2xPDM Up to 2xSPDIF TX
USB:
2xUSB 2.0 Host Port (HighSpeed),1xUSB 3.0 Host Port (SuperSpeed),1xUSB 3.0 OTG Port
PCIe:
2xPCIe2.0 1‑lane - one shared with USB3 and SATA - one shared with SATA
SATA:
2xSATA ports - one shared with USB3 and PCIe2.0 - one shared with PCIe2.0
Connectivity:
Up to 10xUART Up to 5xSPI Up to 3xCAN Up to 7xI2C Up to 15xPWM
Power Input:
5V DC, Max 5.2V
Operating Conditions:
0 ~ 50 C
Dimension:
70mmx45mm
Connector:
260-Pin SODIMM Golden Finger Edge Connector
