Package List

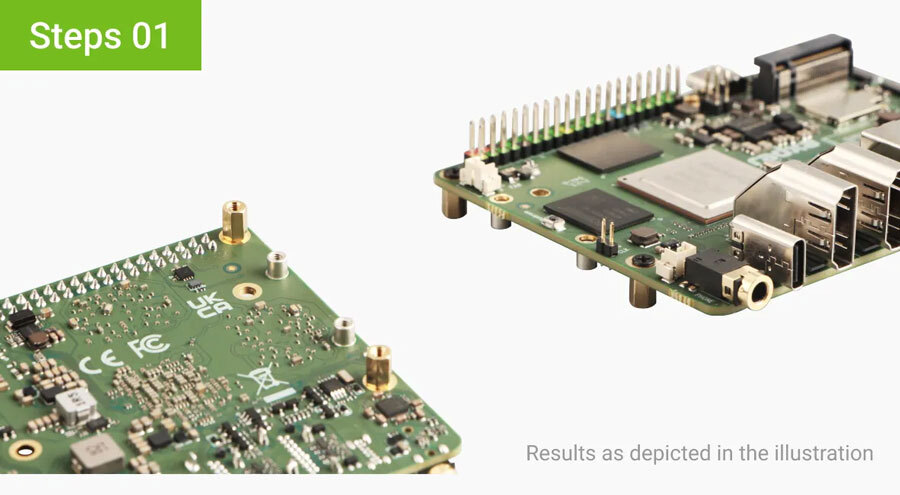

First, take four M2.5*7.5mm standoffs and align them with the fixing hole positions on the back of the ROCK 5B+. Then, use four CM2.5*4mm screws to fix the M2.5*7.5mm standoffs from the front of the ROCK 5B+.

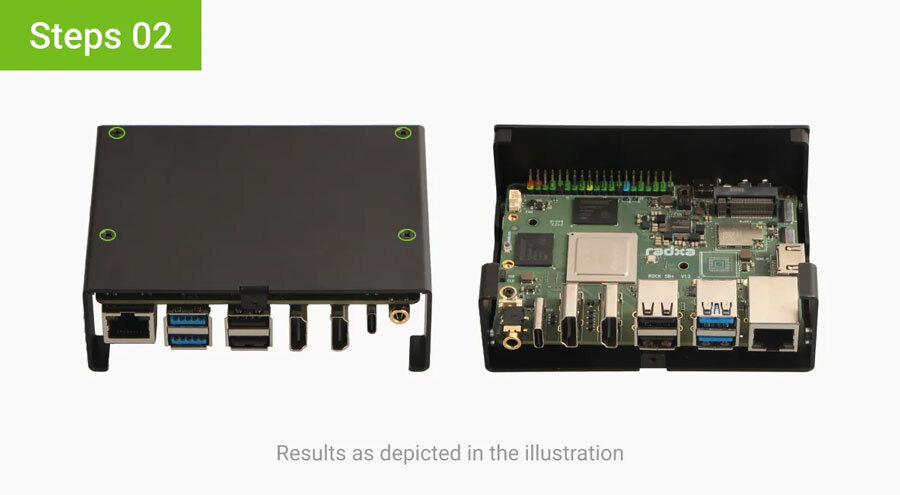

Second, place the ROCK 5B+ with the installed copper pillars into the bottom cover, ensuring that the copper pillars are aligned with the fixing hole positions of the bottom cover. Next, use four KM2.5x4mm screws to fix the M2.5x7.5mm standoffs from the back of the bottom cover.

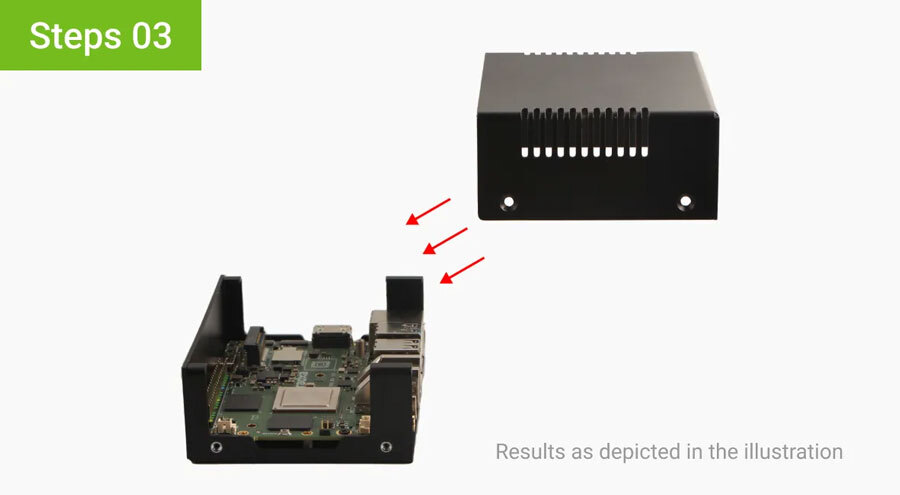

Then, align the top cover with the bottom cover and install it steadily.

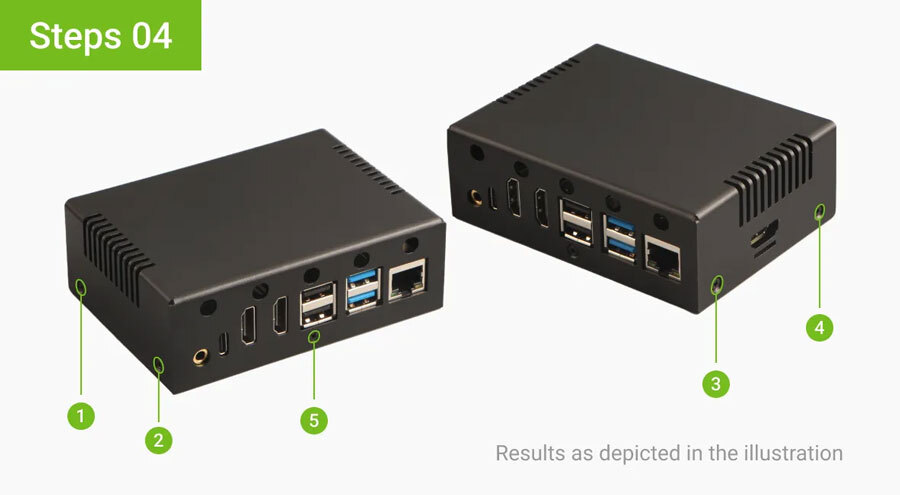

Finally, take the remaining five KM3*4mm screws, align them with the designated positions on the top cover, and fix them in place.
