Radxa Cubie A5E 8 Core Tiny AIoT SBC

Radxa

No reviews yet Write a Review
SKU:
498-RS500-D1E0J0R38S16
MPN:
RS500-D1E0J0R38S16
Radxa Cubie A5E 8-Core AIoT SBC with ARM Cortex-A55 CPU, Mali-G57 GPU, dual Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, 4K video support, and M.2 NVMe SSD storage. Compact and powerful for AI, IoT, and industrial applications.
Radxa Cubie A5E is a compact AIoT SBC featuring an 8-core ARM Cortex-A55 CPU, Mali-G57 GPU, dual Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, and 4K video support. Ideal for AI, IoT, and industrial projects, with M.2 NVMe SSD storage and GPIO expansion. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,000.10 inc. GST
₹1,695.00 ex. GST

Technical Specifications

Brand:
Radxa
SoC:
Allwinner A527
CPU:
4x Cortex®-A55 up to 1.8GHz 4x Cortex®‑A55 up to 1.4GHz
GPU:
Arm® Mali-G57 MC1 – Vulkan® 1.1/1.2/1.3 - OpenGL® ES 3.2/2.0/1.1 - OpenCL® 2.2
NPU:
Optional Neural Processing Unit (NPU) – Computing Power: 2 TOPs – Precision Support: INT 8/16/32b, Float 16/32b
Memory:
LPDDR4 RAM - 32bit memory bus - 2400MT/s transfer speed - Configurations: 1GB / 2GB / 4GB
Storage:
- 1x M.2 M Key Connector with PCIe Gen2 1-lane support for M.2 2230 NVMe SSD - 1x 8MB SPI Flash - 1x eMMC 16/32/64/128GB - 1x SD card connector
Hardware Codec:
Hardware Decoder – Resolution: Up to 4K@60fps – Formats: H.265, H.264, VP9, VP8, H.263, MPEG‑4, MPEG‑2 Hardware Encoder - Resolution: Up to 4K@25fps – Formats: H.264
Video Output:
1x HDMI 2.0 output support, supporting displays up to 4Kp60 resolution 1x MIPI DSI 4-lane up to 1080p60 resolution
Network:
1x onboard WiFi 6 / BT 5.2 with external antenna 2x 1 Gigabit Ethernet Ports - Speeds: 10 / 100 / 1000Mbps
USB:
1x USB Type-C Ports – Power and USB 2.0 OTG 1x USB 3.0 HOST Type-A Ports(5Gbps)
Video Input:
1x MIPI Camera Interfaces – Configurable as 4-lane or 2-lane MIPI CSI each – Ideal for AI vision applications
Power:
1x USB Type-C Port 5V/4A
Size:
56 mm x 65 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Radxa Cubie A5E: Compact 8-Core AIoT Single Board Computer

The Radxa Cubie A5E is a compact and versatile single-board computer (SBC) designed to meet the demands of modern AIoT (Artificial Intelligence of Things) applications. Measuring just 69 x 56 mm, this tiny yet powerful device offers a rich set of features suitable for developers, hobbyists, and industrial applications alike.

At its core, the Cubie A5E is powered by the Allwinner A527 or T527 SoC, featuring an octa-core ARM Cortex-A55 processor. This configuration includes four cores clocked up to 1.8 GHz and four cores up to 1.4 GHz, delivering efficient performance for multitasking and computational tasks. The integrated ARM Mali-G57 MC1 GPU ensures excellent graphics processing capabilities, supporting 4K video output and decoding, making it ideal for multimedia applications.

Key Features:

Flexible Memory and Storage Options

  • RAM Configurations: Available with 1 GB, 2 GB, or 4 GB of LPDDR4 RAM, operating at 2400 MT/s.

  • Storage Interfaces:

    • M.2 M Key Connector: Supports PCIe Gen2 x1 NVMe SSDs in the 2230 form factor, enabling high-speed data access.

    • MicroSD Card Slot: Provides expandable storage options for additional flexibility.

Comprehensive Connectivity

  • Networking:

    • Dual Gigabit Ethernet Ports: Facilitate the creation of customized multi-network environments with speeds of 10/100/1000 Mbps.

    • Wi-Fi 6 and Bluetooth 5.4: Ensure fast wireless connectivity and support for the latest Bluetooth devices.

  • USB Ports:

    • USB 3.0 Type-A Port: Offers high-speed data transfer at 5 Gbps.

    • USB Type-C Port: Functions as both power input (5V/4A) and USB 2.0 OTG.

Advanced Multimedia Support

  • Video Output:

    • HDMI 2.0 Port: Supports displays up to 4Kp60 resolution for high-definition video output.

    • MIPI DSI Interface: 4-lane support for displays up to 1080p60 resolution.

  • Video Input:

    • MIPI CSI Interface: Configurable as a 4-lane or 2-lane interface, ideal for AI vision applications.

Additional Features

  • 40-Pin GPIO Header: Provides access to interfaces such as I2C, SPI, PWM, and I2S, supporting a wide range of expansions and customizations.

  • Optional Neural Processing Unit (NPU): Available with the T527 industrial version, offering up to 2 TOPS of AI computing power, supporting various precisions including INT8/16/32 and Float16/32.

  • Independent RISC-V MCU: A single-core RISC-V microcontroller running up to 200 MHz for real-time operating system (RTOS) applications.

  • Wide Temperature Range: The T527 industrial version operates reliably in temperatures ranging from -40 to 85 ºC (-40 to 185 ºF), making it suitable for harsh environments.

The Radxa Cubie A5E stands out as a compact, feature-rich SBC, offering robust performance and extensive connectivity options, making it a versatile choice for various AIoT projects.

Experience the Power of Compact Computing: Explore the Radxa Cubie A5E today and elevate your AIoT applications.

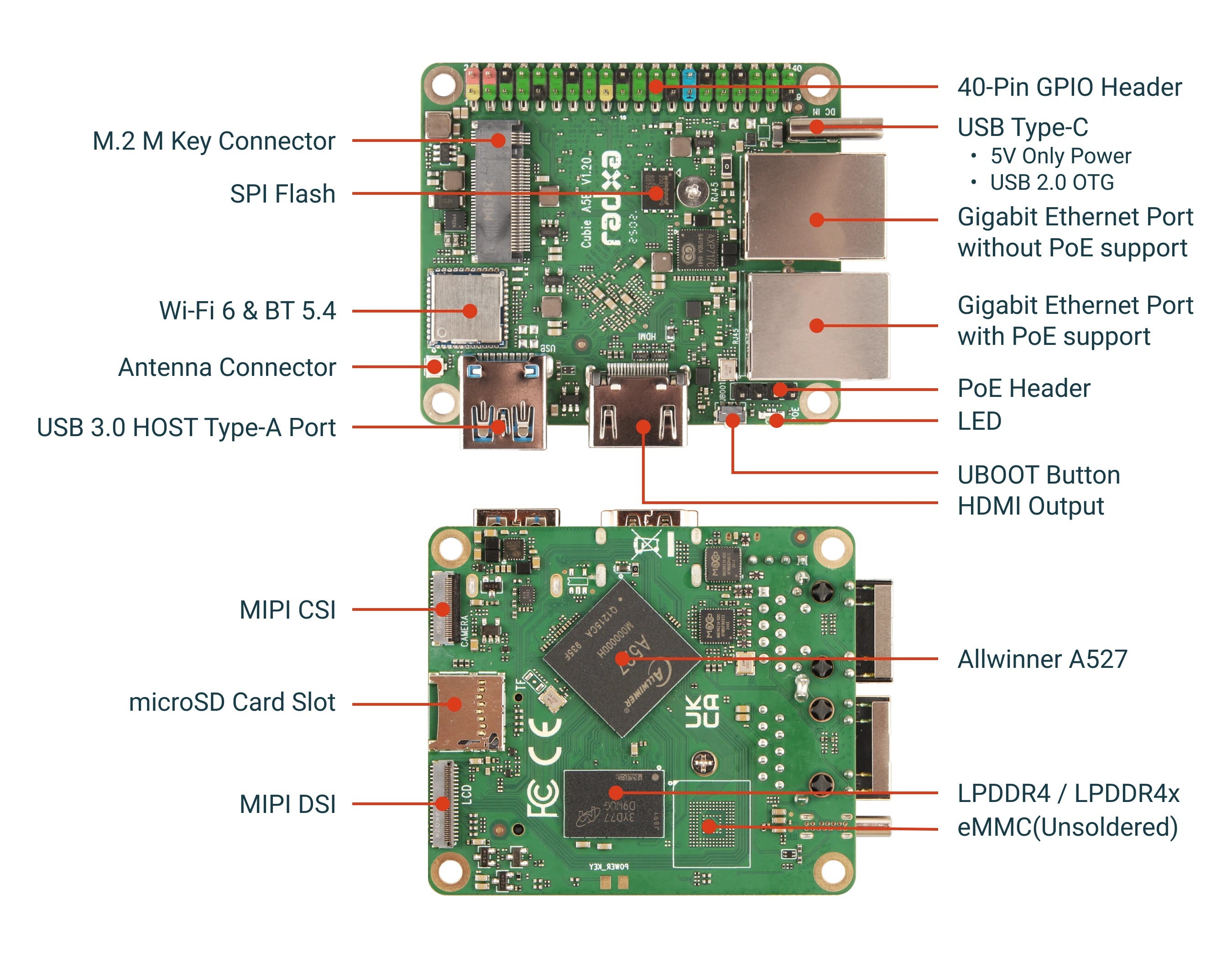

Interfaces
