PMBT2907A,215 - Bipolar Transistor PNP 60V 600mA 200MHz SOT-23-3

Nexperia

No reviews yet Write a Review
SKU:
156-PMBT2907A215
MPN:
PMBT2907A,215

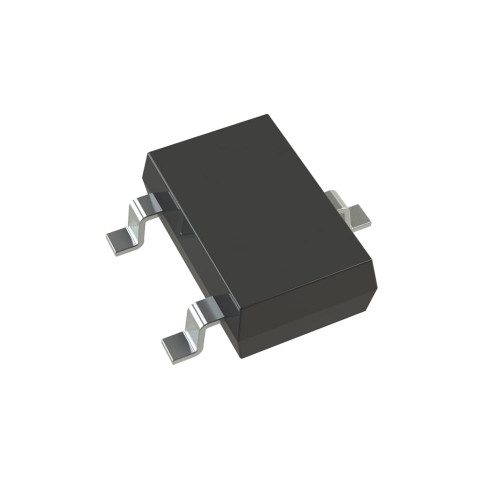

PMBT2907A 215 PNP bipolar transistor in SOT 23 3 surface mount package
Quantity
Unit Price (ex. GST)
1 - 9
₹ 3.50
10 - 99
₹ 3.15
100 or above
₹ 2.80
PNP bipolar transistor rated at 60 volt with 600 milliampere current capability suitable for high speed switching and signal amplification in compact surface mount circuits View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹4.13 inc. GST
₹3.50 ex. GST
13 people looking at this.

Technical Specifications

Brand:
Nexperia
Contact Plating:
Tin
Number of Pins:
3
Number of Terminals:
3
Ambient Temperature Range High:
150 C
Collector Base Voltage (VCBO):
-60 V
Collector Emitter Saturation Voltage:
1.6 V
Collector Emitter Voltage (VCEO):
60 V
Emitter Base Voltage (VEBO):
-5 V
hFE Min:
50
Max Collector Current:
600 mA
Max Junction Temperature (Tj):
150 C
Max Operating Temperature:
150 C
Max Power Dissipation:
250 mW
Min Operating Temperature:
-65 C
Number of Elements:
1
Polarity:
NPN, PNP
Power Dissipation:
250 mW
Transition Frequency:
200 MHz
Height:
1.1 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

High Speed PNP Bipolar Transistor for Medium Current Switching and Signal Amplification

The PMBT2907A 215 PNP bipolar transistor is designed for reliable medium current switching and signal amplification in compact electronic circuits. With a collector emitter voltage rating of 60 volt and a continuous collector current capability of 600 milliampere it delivers stable performance in driver stages load control circuits and complementary transistor configurations. The SOT 23 3 surface mount package enables efficient PCB space utilisation and supports automated assembly in high density designs.

This transistor is commonly used in power management circuits audio signal stages level shifting and general purpose switching applications. The A gain classification offers controlled and predictable DC current gain which simplifies biasing and improves design consistency. Its high transition frequency of 200 megahertz allows fast and clean signal handling in moderate to high speed analogue and switching applications used in consumer and industrial electronics.

Key Features

  • PNP Bipolar Transistor
    Suitable for signal amplification and medium current switching applications
  • High Voltage Capability
    Supports circuit operation up to 60 volt
  • Strong Current Handling
    Designed for collector current up to 600 milliampere
  • High Frequency Performance
    Enables fast switching with transition frequency up to 200 megahertz
  • Compact SOT 23 3 Package
    Ideal for space constrained surface mount PCB layouts
