PCIe2.0 to dual M.2 hat for Raspberry Pi 5, Support NVMe SSD, Support Hailo8/8L – Seeed Studio
The PCIe 2.0 Dual M.2 Hat for Raspberry Pi 5 from Seeed Studio is a high-performance expansion module designed to unlock powerful storage and AI acceleration capabilities on the Raspberry Pi 5. Featuring the ASM1182E PCIe 2.0 switch chip, this hat allows users to simultaneously connect two M.2 devices—such as NVMe SSDs and Hailo AI accelerators—with excellent compatibility and stable operation. It supports a full range of M.2 sizes (2230/2242/2260/2280), offering maximum flexibility for various storage and AI workloads. A back-mounted design ensures that the 40-pin GPIO remains fully accessible, while keeping Raspberry Pi’s original heatsinks and fans unobstructed for optimal cooling. With additional pogo pins for improved power stability and an S-shaped FPC cable that avoids blocking the microSD card, this hat is engineered for reliability, ease of use and advanced Raspberry Pi expansion.
Key Features
- PCIe 2.0 Dual Channel: Supports dual M.2 devices such as NVMe SSDs and Hailo AI accelerator cards simultaneously using the ASM1182E PCIe switch.
- Stable Connection: Extra pogo pins provide enhanced power delivery for stable high-speed performance.
- Supports Multiple M.2 Sizes: Compatible with 2230, 2242, 2260 and 2280 form factors.
- Back-Mounted Design: Keeps the 40-pin GPIO accessible and allows stacking with other hats; does not block official Raspberry Pi cooling solutions.
- User-Friendly Layout: S-shaped FPC cable ensures easy installation without obstructing the microSD card.
- Ideal for Advanced Projects: Perfect for expanding storage, enabling edge-AI processing and building high-performance Raspberry Pi systems.

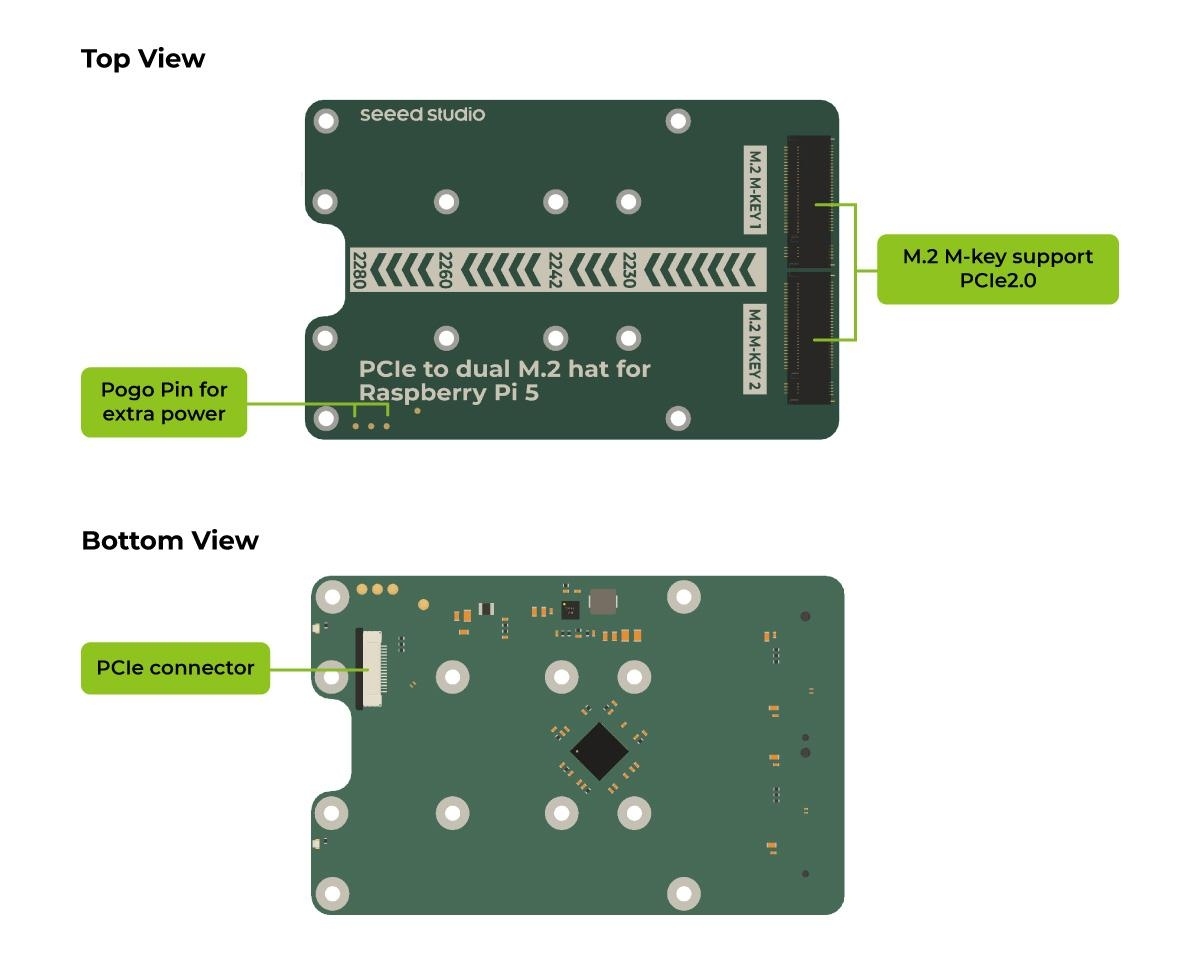

Hardware Overview
Package Content:
- PCIe to M.2 dual hatx1
- 50mm FPC cablex2
- Screw & stud packx1
