Mini Gigabit Ethernet RJ45 Slip Ring With Flange 1ch 1000M

SENRING

No reviews yet Write a Review
SKU:
530-EM022-24GV
MPN:
EM022-24GV
Miniature Gigabit Ethernet RJ45 slip ring with flange for 1-channel 1000M data transmission
Miniature Gigabit Ethernet RJ45 Slip Ring with Flange supports 1-channel 1000M high-speed Ethernet, offering low-loss 360 rotation View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹7,972.97 inc. GST
₹6,756.75 ex. GST
2 people looking at this.

Technical Specifications

Brand:
SENRING
Type:
Ethernet Slip Ring with Flange
Outer Diameter:
22mm
Number of Ethernet Channels:
1000M
Connector Type:
RJ45
Max Rotating Speed:
≤250RPM
Operating Voltage:
440VAC/VDC
Insulation Resistance:
≥1000M /500VDC
Dielectric Strength:
500VAC@50Hz,60s
IP Rating:
IP51
Operating Temperature:
–30 C to+80 C
Humidity Range:
0–85% RH
Housing Material:
Aluminum Alloy
Torque:
0.1N.m;+0.03N.m/6 circuits
Lead Wire Length:
200mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

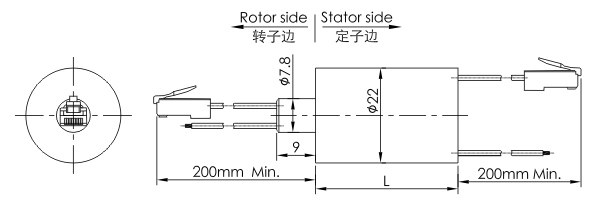

Miniature Gigabit Ethernet RJ45 Slip Ring with Flange - 1 Channel, 1000M

The Miniature Gigabit Ethernet RJ45 Slip Ring with Flange (1 channel, 1000M) is a compact and high-performance rotary communication interface designed to transmit full-duplex Gigabit Ethernet signals across rotating assemblies. Engineered for applications requiring stable, high-speed data transmission, this slip ring supports 1000 Mbps Ethernet while maintaining low signal loss, low crosstalk and excellent noise immunity during continuous 360 rotation. Its miniature design with an integrated flange allows easy mounting in tight mechanical spaces, making it ideal for robotics, pan-tilt camera systems, radar equipment, rotating sensors, inspection machinery and industrial automation. Built with precision signal-routing technology and gold-contact interfaces, it ensures reliable long-term operation even under high rotational speeds.

Key Features

  • 1-Channel Gigabit Ethernet: Supports full-duplex 1000M (1 Gbps) Ethernet communication for high-speed data systems.
  • Miniature Form Factor: Compact body with integrated flange for easy installation in small-scale or tight-space applications.
  • Stable Low-Loss Transmission: Engineered for minimal signal attenuation and low crosstalk during continuous rotation.
  • Smooth 360 Rotation: Maintains uninterrupted network communication between rotating and fixed components.
  • Industrial-Grade Performance: Ideal for robotic arms, PTZ cameras, LIDAR systems, instrumentation and automation equipment.
