Micro Solar Power Manager / Charger with Regulated Output (with Solar Panel: 2V 160mA 50x50mm)

DFRobot

No reviews yet Write a Review
SKU:
147-DFR0579
Manufacturer Part Number:
DFR0579
₹1,911.60 inc. GST
₹1,620.00 ex. GST
Micro Solar Power Manager / Charger with regulated output, supporting 1~3V solar panels, ideal for IoT devices with MPPT algorithm, stable 3.3V output, and battery protection features.
Enhance your IoT projects with the Micro Solar Power Manager. Designed for 1~3V solar panels, it offers a stable 3.3V output, MPPT algorithm for maximum efficiency, and comprehensive battery protection, ensuring reliable and continuous power. View full description
₹1,911.60 inc. GST
₹1,620.00 ex. GST

Description

Empower Your IoT Devices with the Micro Solar Power Manager
Maximize the efficiency and longevity of your IoT projects with the Micro Solar Power Manager / Charger with Regulated Output (Solar Panel Input: 1~3V, 70mA). This state-of-the-art solar power management module is engineered to deliver stable and reliable power for low-power wireless sensors and controllers, ensuring your IoT systems are always up and running.

Key Features
Optimized for Micro-Energy Harvesting
Designed specifically for small solar panels within the 1V~3V range, ensuring efficient energy collection even in low light conditions.
Stable and Reliable Output
Provides a regulated 3.3V 90mA output, meeting the power requirements of most low-power devices and maintaining system stability during data transmission and reception.
MPPT Algorithm for Maximum Efficiency
Incorporates a constant voltage MPPT (Maximum Power Point Tracking) algorithm to maximize solar energy conversion efficiency.
Comprehensive Battery Protection
Equipped with overcharge and over-discharge protection features, safeguarding your battery and extending its lifespan.
Versatile Charging Options
Supports charging via both solar panels and USB, with up to 70mA and 100mA charging current respectively.

Ideal Applications
  • Low-Power Wireless Sensor Networks
  • Bluetooth Beacon Localization
  • Miniature Solar-Powered Toys
Resources
Shipping List
  • Solar Power Manager Micro x1
  • Monocrystalline Silicon Solar Panel 2V 160mA 50*50mm x1
  • Red Single Conductor Wire 15cm 24AWG x2
  • Black Single Conductor Wire 15cm 24AWG x2
  • PH2.0-2P Male Power Wire 15cm x1
  • XH2.54-2P Header x2

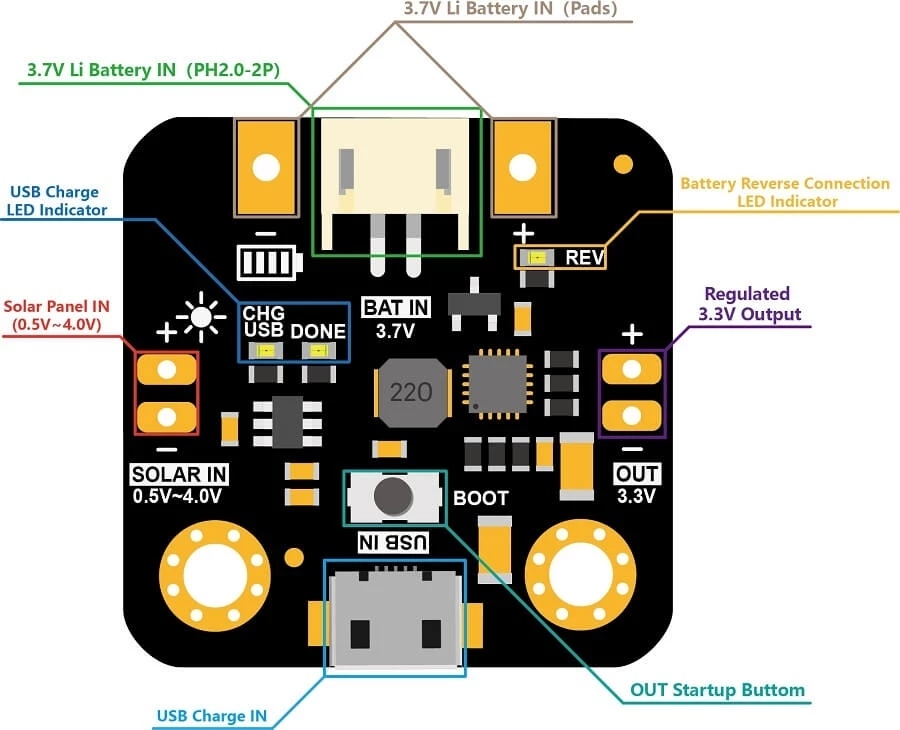

Technical Specifications

Brand:
DFRobot
Solar Power Management IC:
SPV1050
Solar Input Voltage (SOLAR IN):
0.5V~4V
Battery Input (BAT IN):
3.7V Lithium Battery
Maximum Charge Current:
100mA@USB IN; 70mA@SOLAR IN
Over-Charge Protection Threshold:
4.2V
Over-Discharge Protection Threshold:
3.1V
Regulated Power Supply:
3.3V 90mA@BAT IN 3.7V
Quiescent Current:
< 3 uA
Protection Functions:
Over-discharge, Over-charge, Reverse Connection, Short Circuit, Over Current
Operation Temperature:
-40～85C
Dimensions:
30.0mm x 30.0mm
Nominal Voltage (VMP):
2V
Nominal Current (IMP):
160mA
Open Circuit Voltage (IOC):
2.4V
Short Circuit Current (ISC):
190mA
Material:
Monocrystalline Silicon
Features:
Waterproof, Oil Resistant, Corrosion Resistant
Dimensions:
50mm x 50mm
