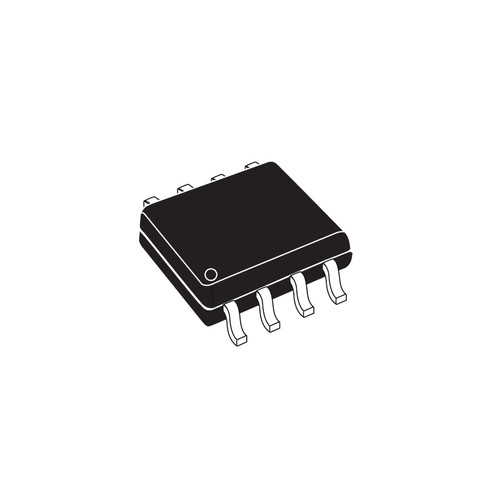

MC33063ADR - Buck, Boost Switching Regulator IC 1.5A SOIC-8

Texas Instruments

No reviews yet Write a Review
SKU:
035-MC33063ADR
MPN:
MC33063ADR
Full Reel:
2500 (order in multiples of this to receive standard manufacturer packaging)
MC33063ADR 1.5A Buck/Boost/Inverting Switching Regulator IC SOIC-8 Package
Quantity
Unit Price (ex. GST)
1 - 9
₹ 25.91
10 - 99
₹ 23.32
100 - 999
₹ 22.02
1000 or above
₹ 20.73
The MC33063ADR is a versatile 3V–40V, 1.5A DC-DC switching regulator IC for buck, boost, and inverting topologies, featuring PWM control, internal oscillator, and current limiting in a compact SOIC-8 package. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹30.57 inc. GST
₹25.91 ex. GST
18 people looking at this.

Technical Specifications

Brand:
Texas Instruments
Case/Package:
SOIC
Number Of Pins:
8
Max Input Voltage:
40 V
Max Operating Temperature:
85 C
Max Output Current:
750 mA
Max Output Voltage:
40 V
Min Input Voltage:
3 V
Min Operating Temperature:
-40 C
Min Output Voltage:
1.25 V
Number of Channels:
1
Output Current:
1.5 A
Output Voltage:
1.25 V
Quiescent Current:
4 mA
Switching Frequency:
100 kHz
Full Reel Quantity:
2500

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

MC33063ADR – 1.5A Buck/Boost/Inverting Switching Regulator IC

The MC33063ADR is a versatile and easy-to-use DC-DC switching regulator IC designed for buck, boost, and inverting converter topologies. This all-in-one power management solution integrates the primary components required for DC-DC conversion, including a temperature-compensated reference, comparator, oscillator, PWM controller with active current limiting, and a high-current output switch capable of driving up to 1.5A. With minimal external components, the MC33063ADR enables designers to build compact, efficient, and reliable power supply circuits.

Operating over a wide input voltage range of 3V to 40V, this IC is suitable for automotive, industrial, and battery-powered systems. The precision 2% internal reference ensures stable output voltage regulation, while the active current limiting and short-circuit protection enhance circuit safety and reliability. The internal oscillator can be adjusted up to 100kHz, allowing flexibility in selecting external components for the desired output performance. The device’s low standby current further improves system efficiency in power-sensitive designs.

Key Features

  • Wide Input Voltage Range: Operates from 3V to 40V for broad compatibility with various power sources.
  • High Output Switch Current: Supports up to 1.5A continuous current for efficient power delivery.
  • Adjustable Output Voltage: Easily configurable for step-up (boost), step-down (buck), or inverting converter designs.
  • Integrated Oscillator: Frequency adjustable up to 100kHz for optimized performance.
  • Precision Voltage Reference: +-2% internal reference ensures stable output voltage.
  • Active Current Limiting: Protects against overcurrent and short-circuit conditions.
  • Low Standby Current: Enhances efficiency in low-power and standby modes.
  • Built-In PWM Controller: Provides efficient and stable switching operation.
  • Temperature Range: Operates reliably from –40 C to+85 C for industrial environments.
  • Compact SOIC-8 Package: Simplifies PCB layout and offers robust thermal characteristics.
