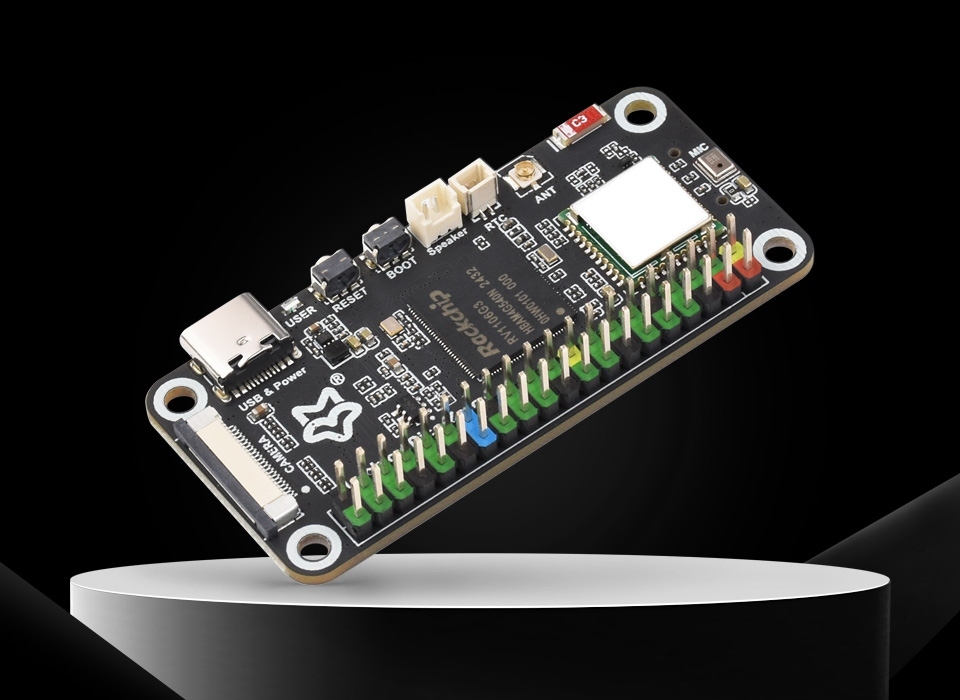

Luckfox Pico Zero Linux Micro Development Board 8GB eMMC Wireless Module

Waveshare

No reviews yet Write a Review
SKU:
061-32111
MPN:
32111
Luckfox Pico Zero Linux Development Board with RV1106G3 chip, AI NPU, 8GB eMMC, and wireless module
Quantity
Unit Price (ex. GST)
1 - 9
₹ 1,759.00
10 or above
₹ 1,688.64
Compact Linux development board with RV1106G3 chip, 1 TOPS NPU, Cortex-A7 CPU, 256MB RAM, 8GB eMMC, ISP3.2 image processing, and rich I/O for AI, IoT, and embedded applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,075.62 inc. GST
₹1,759.00 ex. GST
15 people looking at this.

Technical Specifications

Brand:
Waveshare
SoC:
Luckfox RV1106G3 – ARM Cortex‑A7 1.2 GHz
NPU Performance:
1 TOPS (INT8)
RAM:
256 MB 16‑Bit DDR3L
Storage:
8 GB eMMC (built-in), TF card slot for expansion
Wireless:
Wi‑Fi 6 (2.4 GHz), Bluetooth 5.2 (LE)
Camera Interface:
4‑lane MIPI‑CSI (up to 8 M @15 FPS)
Connectivity:
USB‑C (power/flashing), GPIO header (Pi HAT compatible)

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

 https://wiki.luckfox.com/Luckfox-Pico-Zero

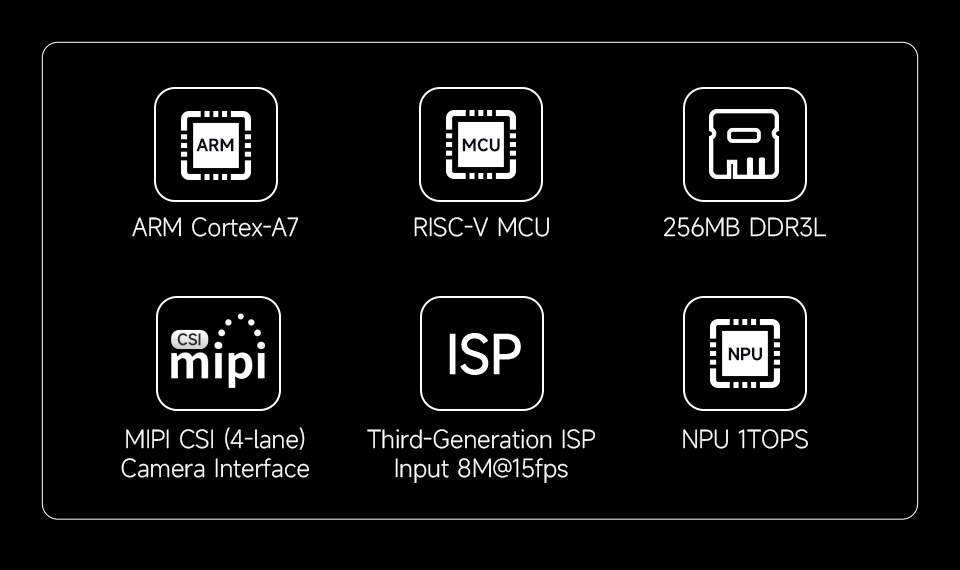

Luckfox Pico Zero

Highly integrated and powerful performance

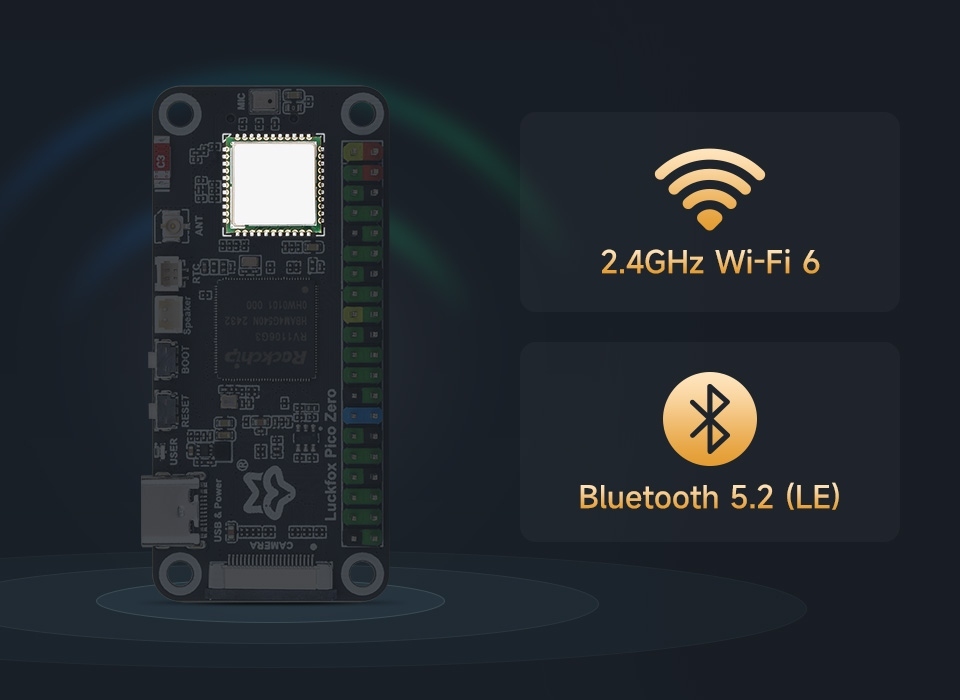

Wi-Fi 6 And Bluetooth Module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2 (LE) Bluetooth Module
Providing Stable Connection And Efficient Transmission

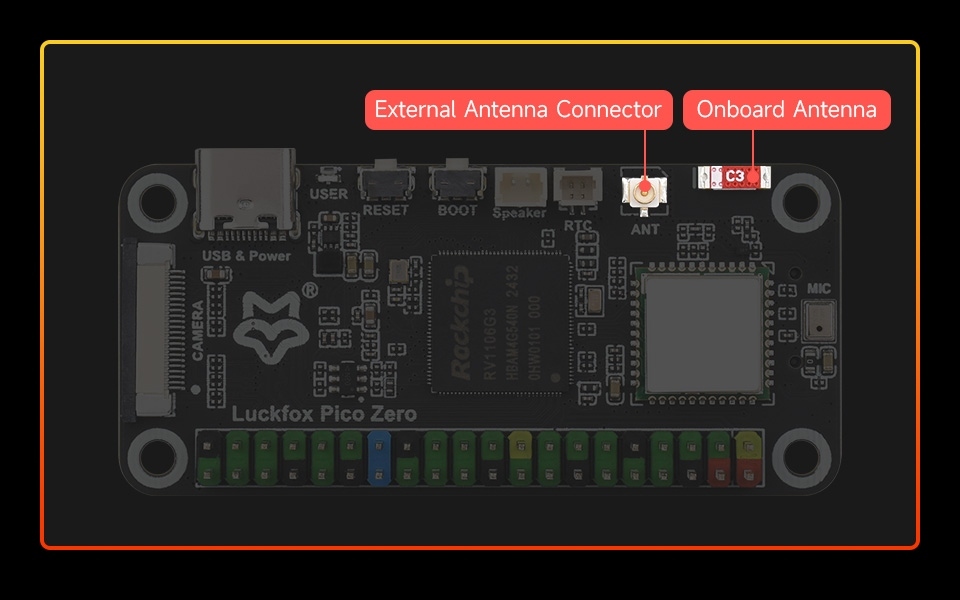

Antenna Switching

Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios

MIPI CSI 4-lane Interface

Composed of Dual MIPI-CSI (2-lane) interfaces

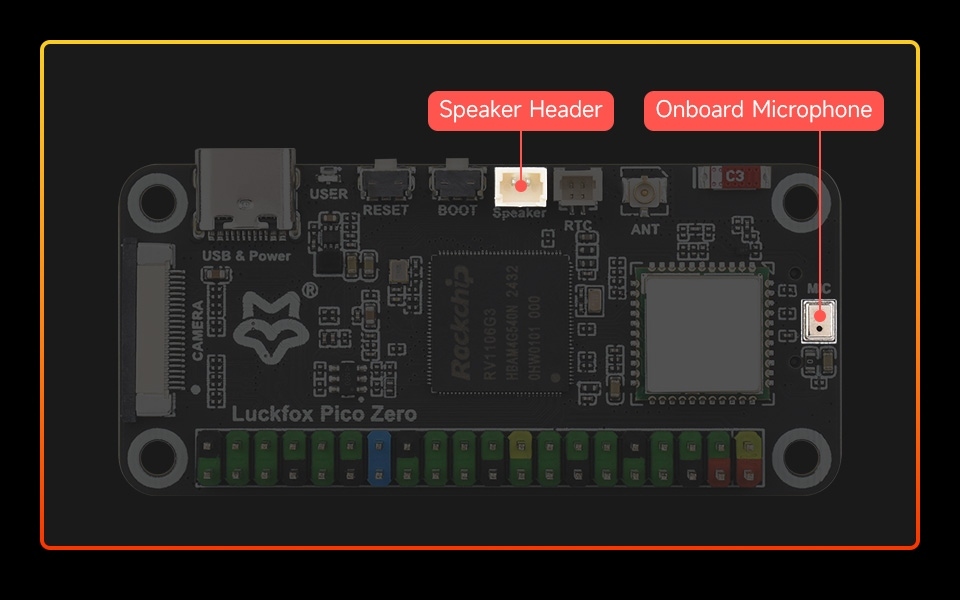

Multiple Audio Interfaces

Onboard microphone + speaker header
meets a variety of audio application scenarios

Applications

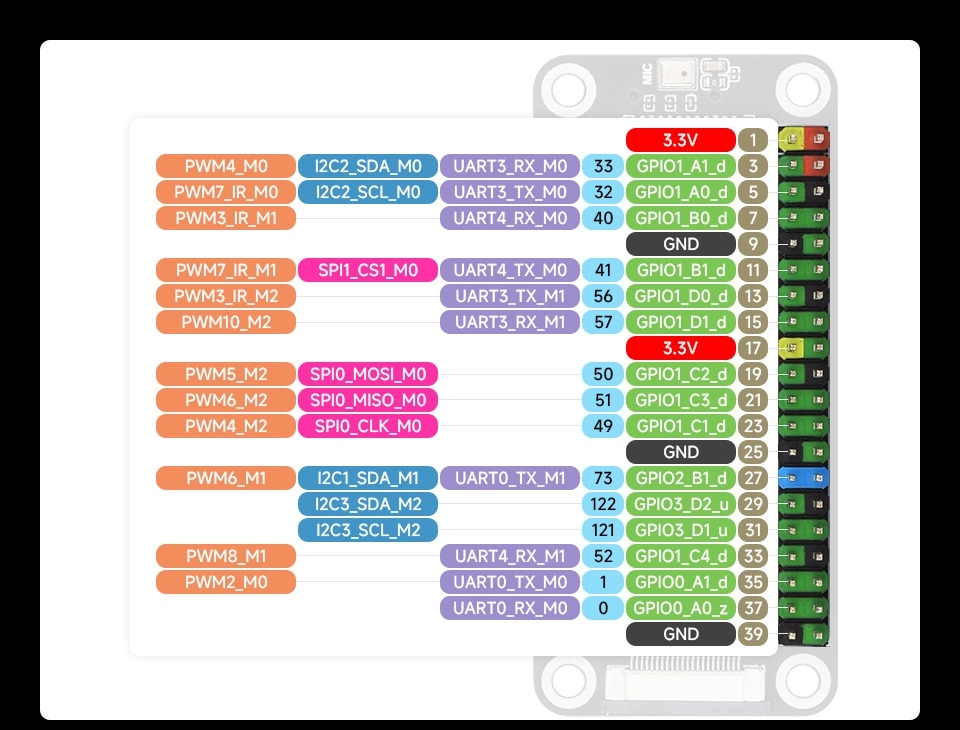

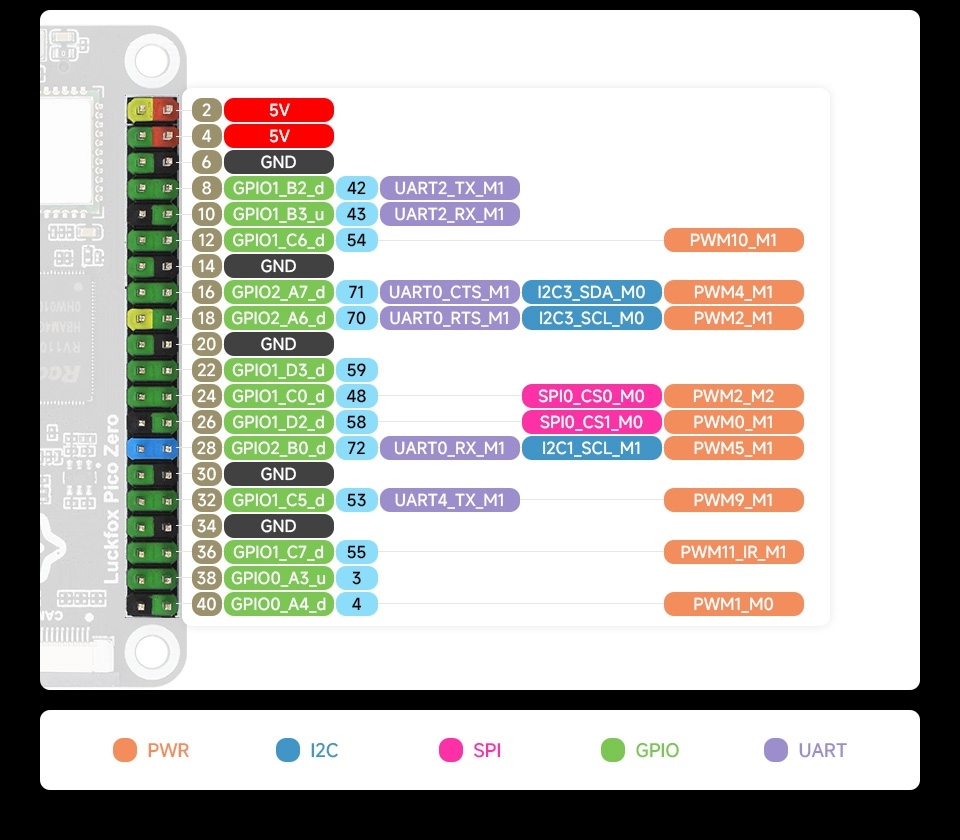

Pin Definition

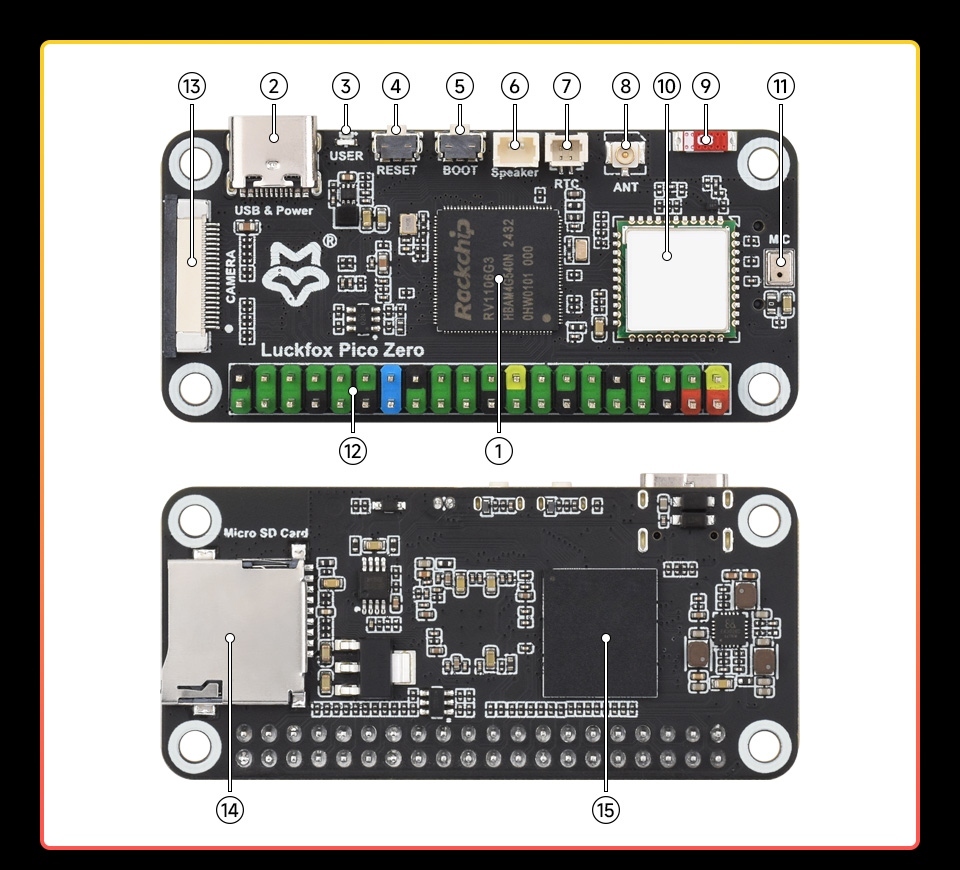

Whats On Board

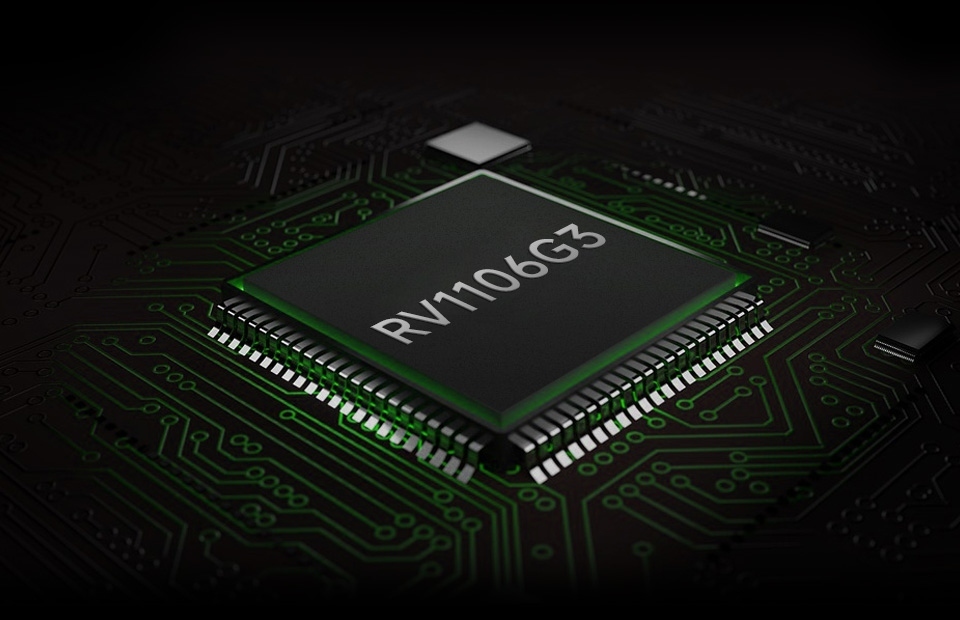

1. RV1106G3
Vision processor SoC, integrates ARM Cortex-A7 core
2. USB-C Port
for power supply and program burning
3. USER-LED
for indicating system operating status in the default image
4. RESET Button
5. BOOT Button
Press it when powering on or resetting to enter download mode
6. Speaker Header
MX1.25 2P connector, supports 8Ω 1W speaker.
7. RTC Battery Header
8. External Antenna Connector
9. Onboard Antenna
10. Wi-Fi / Bluetooth Module
2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module
11. Onboard Microphone
12. 40PIN GPIO Header
Compatible with some Raspberry Pi HATs

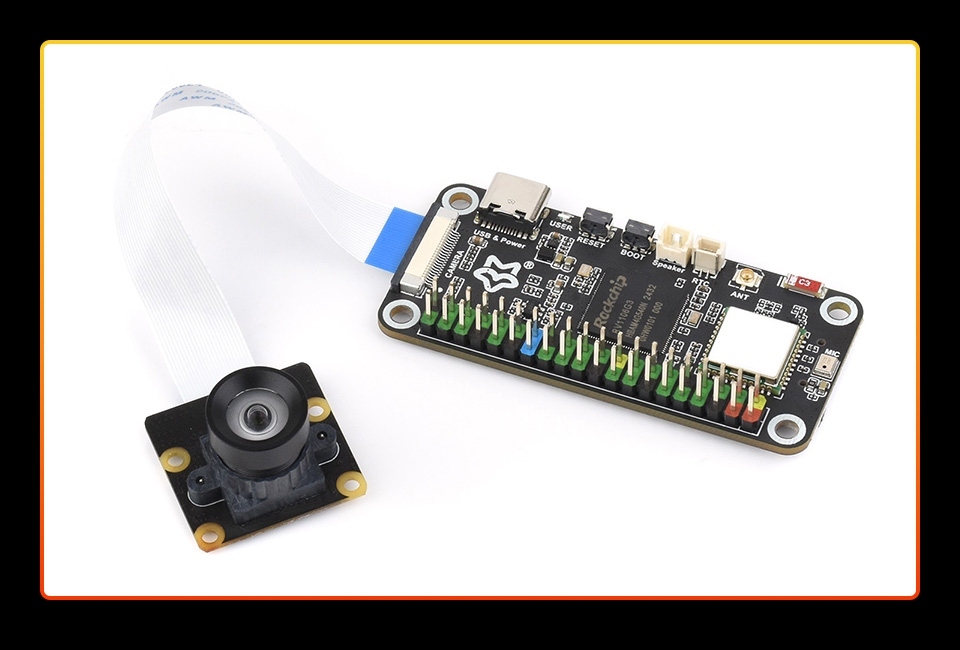

13. Camera Interface
MIPI CSI (4-lane)
14. TF Card Slot
Supports storage expansion only
15. 8GB eMMC

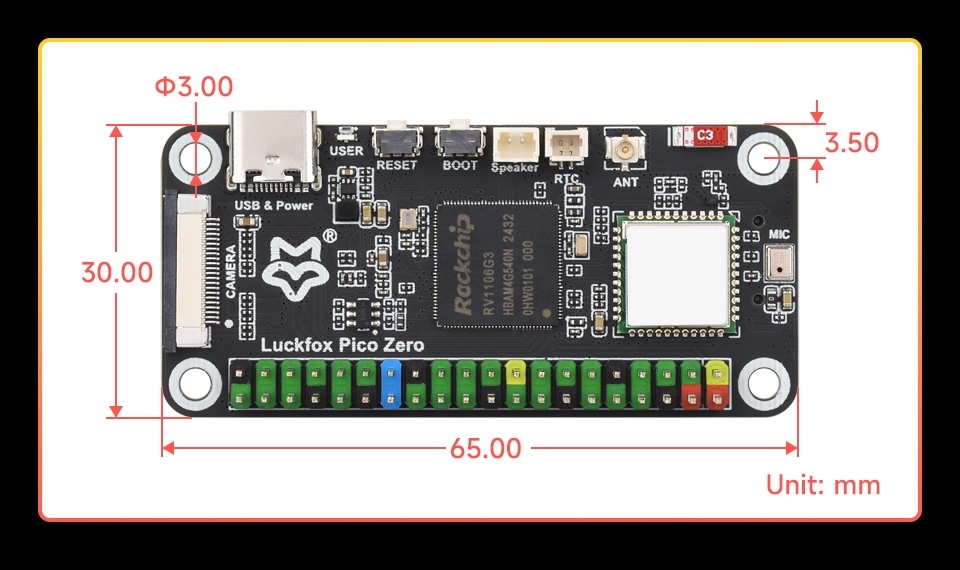

Dimensions

Package Content:

Luckfox Pico Zero x1
