Luckfox Core1106 Smart 86 Box Development Board RV1106G3 Processor, 256MB DDR3L

Resources:

Wiki: https://wiki.luckfox.com/Luckfox-Pico-86-Panel

Luckfox Core1106 Development Board – RV1106G3 Processor

The Luckfox Core1106 Development Board is a compact, high-performance embedded platform built around the Rockchip RV1106G3 processor, designed for AI vision, IoT, and wireless communication applications. It provides an efficient and reliable solution for developers requiring advanced image processing, intelligent encoding, and edge AI capabilities in compact, power-efficient designs. At its core, the RV1106G3 integrates a single-core ARM Cortex-A7 32-bit processor with NEON SIMD and FPU (Floating Point Unit), delivering solid computational power for embedded Linux-based systems. The built-in Rockchip 4th-generation NPU (Neural Processing Unit) provides up to 1 TOPS (int8 computing) performance, supporting int4, int8, and int16 hybrid quantization, enabling advanced AI inference such as object recognition, face detection, and image classification at the edge.

The development board also incorporates Rockchip’s third-generation ISP3.2 image signal processor, supporting up to 5-megapixel camera sensors with advanced imaging algorithms including HDR, WDR, and multi-level noise reduction, producing sharp, high-quality visuals even in challenging lighting conditions. Its intelligent encoding engine offers adaptive streaming and efficient compression, saving over 50% bandwidth compared to traditional CBR modes, allowing high-definition video output at lower data rates. The board also features built-in 16-bit DDR3L DRAM, capable of sustaining demanding memory bandwidths for multimedia and AI applications.

Key Features

• Processor: Single-core ARM Cortex-A7 32-bit CPU with NEON and FPU for floating-point performance.

• AI Acceleration: Integrated Rockchip 4th-gen NPU with up to 1 TOPS (int8) computing power; supports int4/int8/int16 hybrid quantization.

• ISP Engine: Built-in 3rd-gen Rockchip ISP3.2 supports up to 5MP sensors with HDR, WDR, and advanced image enhancement algorithms.

• Smart Encoding: Adaptive encoding engine saves over 50% bitrate while maintaining high-definition image quality.

• Memory: Built-in 16-bit DDR3L DRAM, ensuring high memory bandwidth for real-time multimedia processing.

• Wireless Module Ready: Designed for wireless connectivity applications in IoT and industrial environments.

• Efficient Performance: Combines low power consumption with high-speed AI processing for embedded applications.

• Application Scenarios: Ideal for smart cameras, AI vision systems, industrial monitoring, and wireless IoT modules.

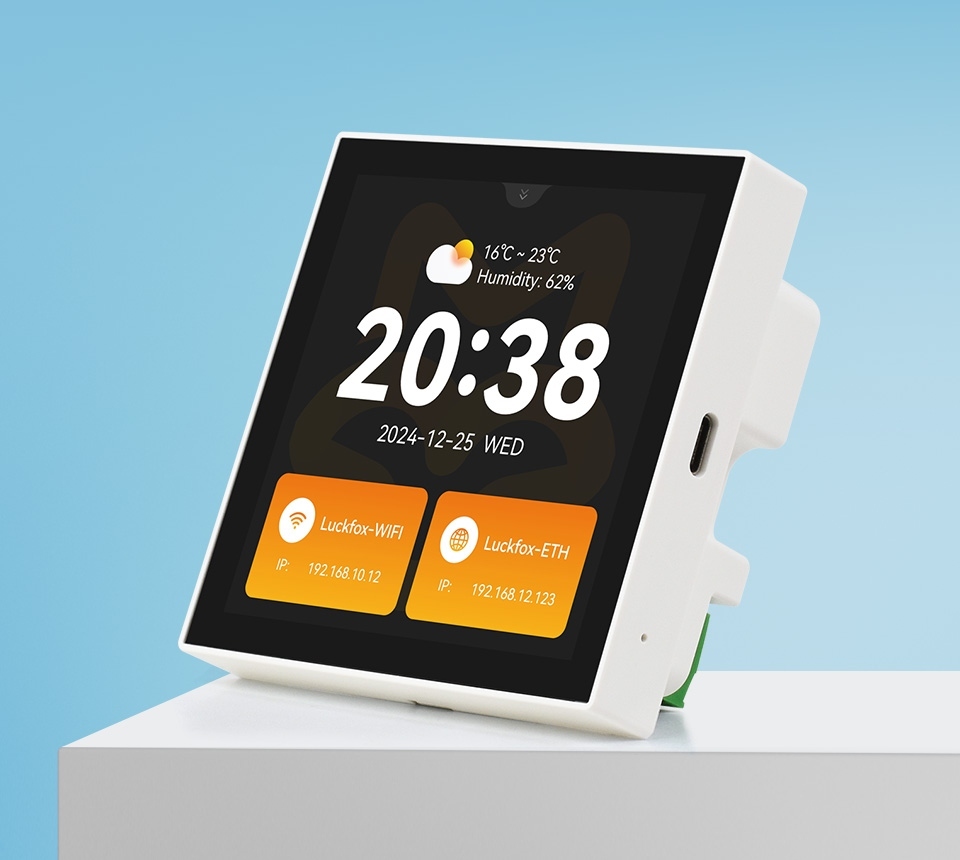

Luckfox Core1106 Smart 86 Box

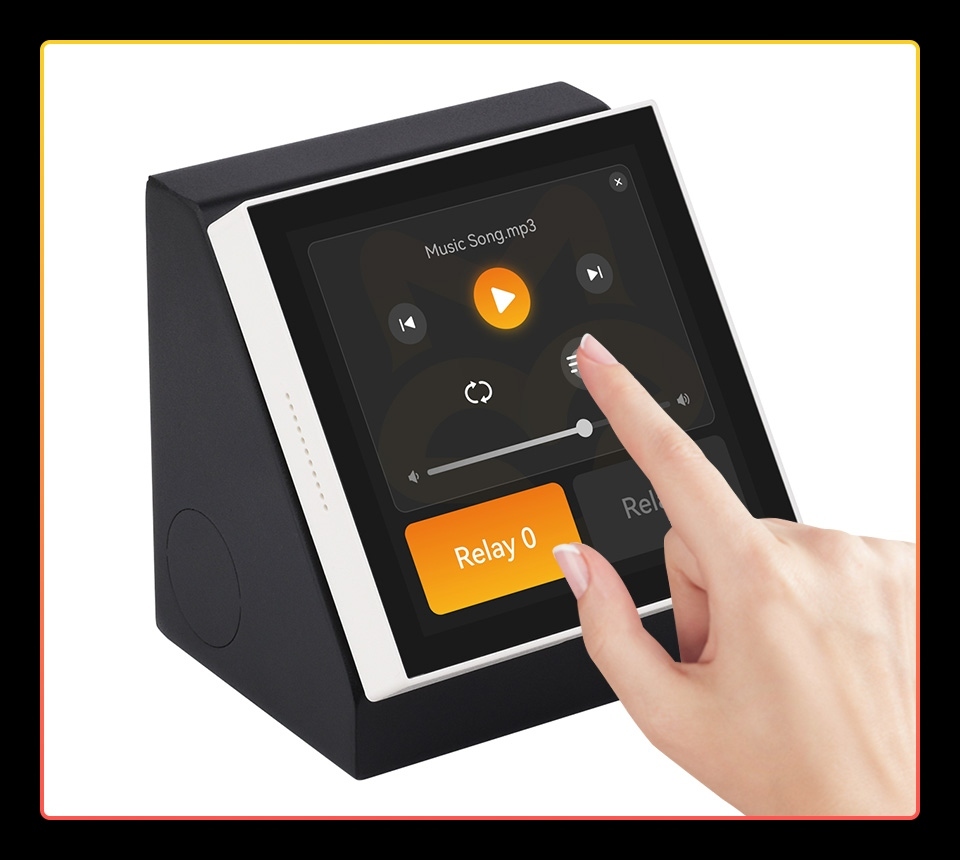

Capacitive 5-point Touch

Supports flexible and responsive touch operations to make development more convenient.

 For reference only, the base case in the picture is NOT included

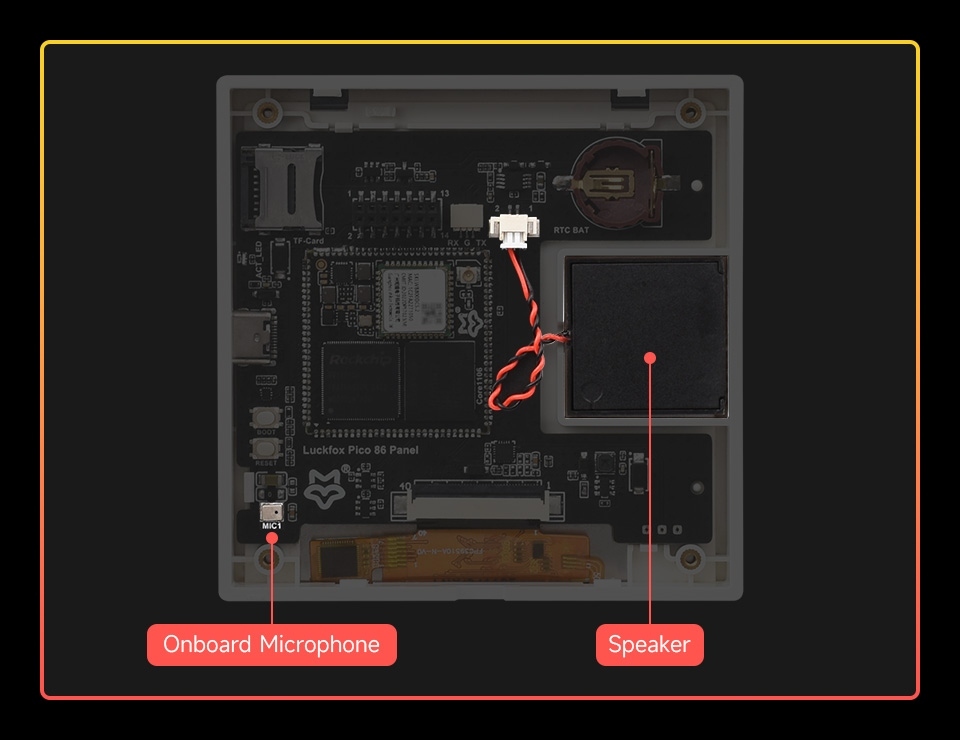

Audio Input / Playback

Onboard microphone and speaker to fulfill the needs of everyday audio applications.

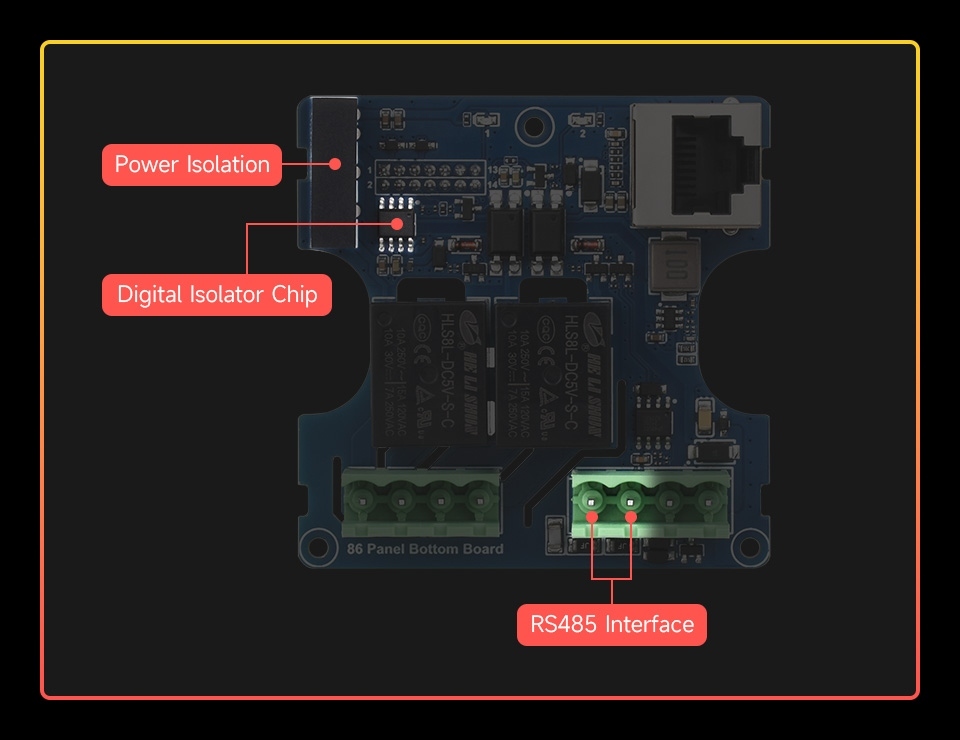

Onboard RS485 Interface

Features automatic data transmission and reception, built-in power isolation, digital isolation, TVS, and other safeguards.

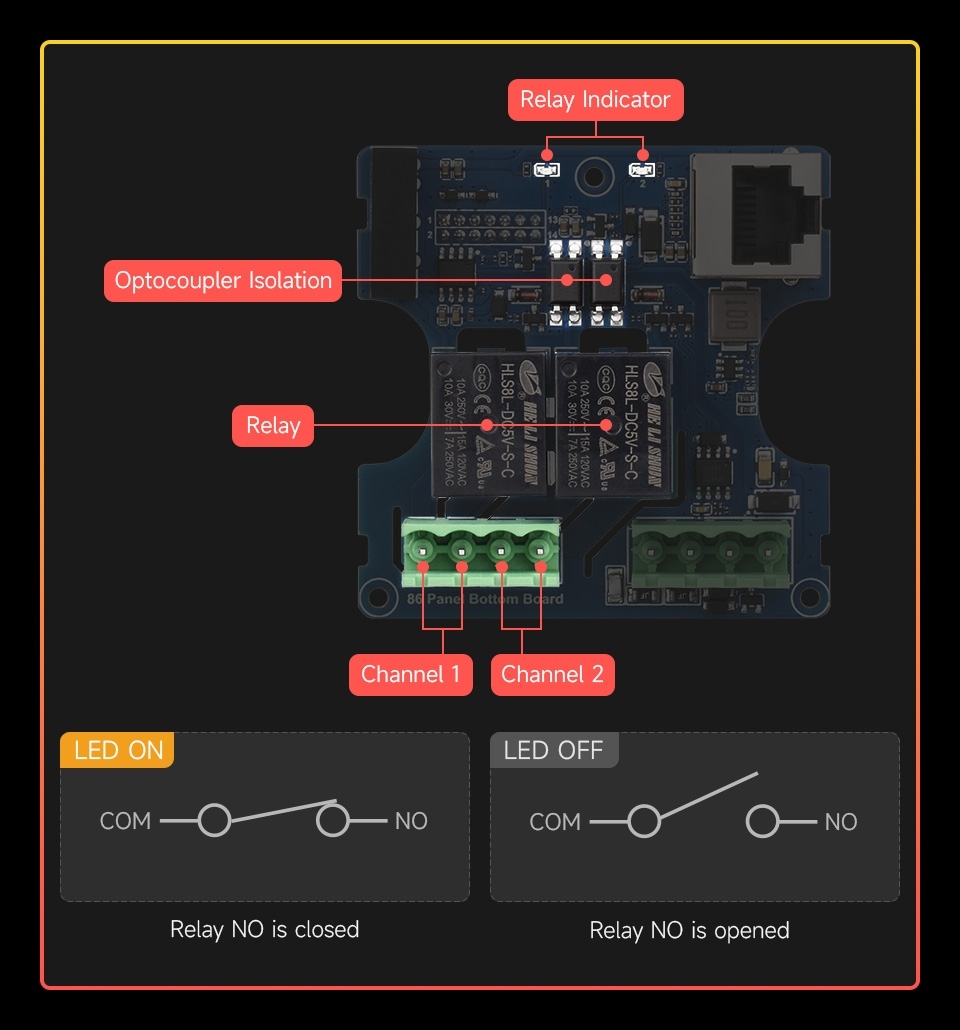

2-Channel Relay

Onboard Optocoupler isolation protects the relay from interference from high-voltage circuits.

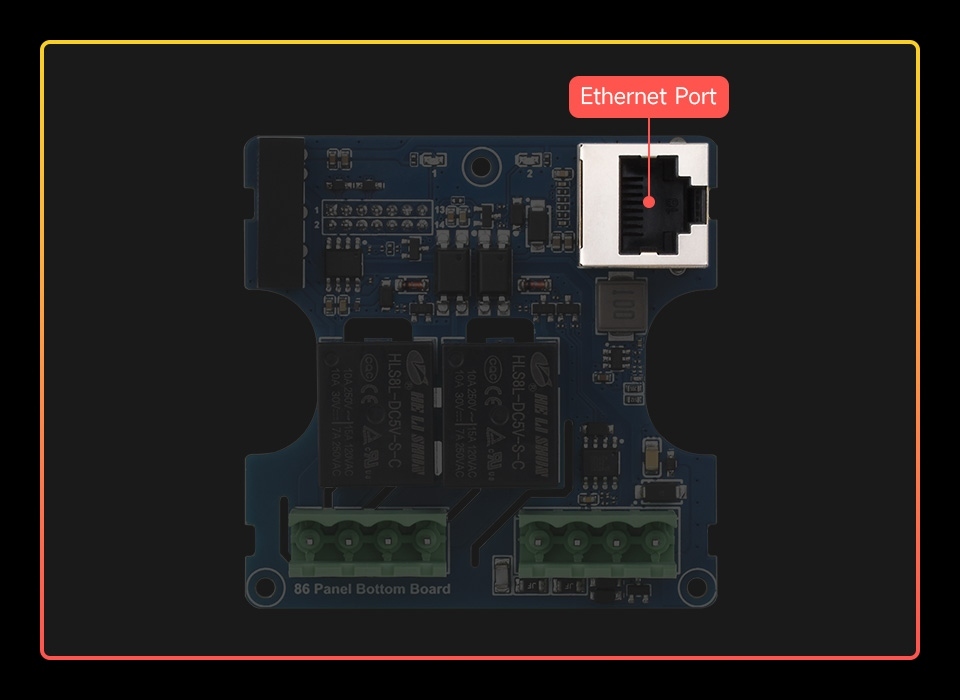

100M RJ45 Ethernet Port

Supports 10/100M Wired Network Communication

When connecting the network cable, the depth of the 86-type back box should be considered. A short-body RJ45 connector cable is recommended.

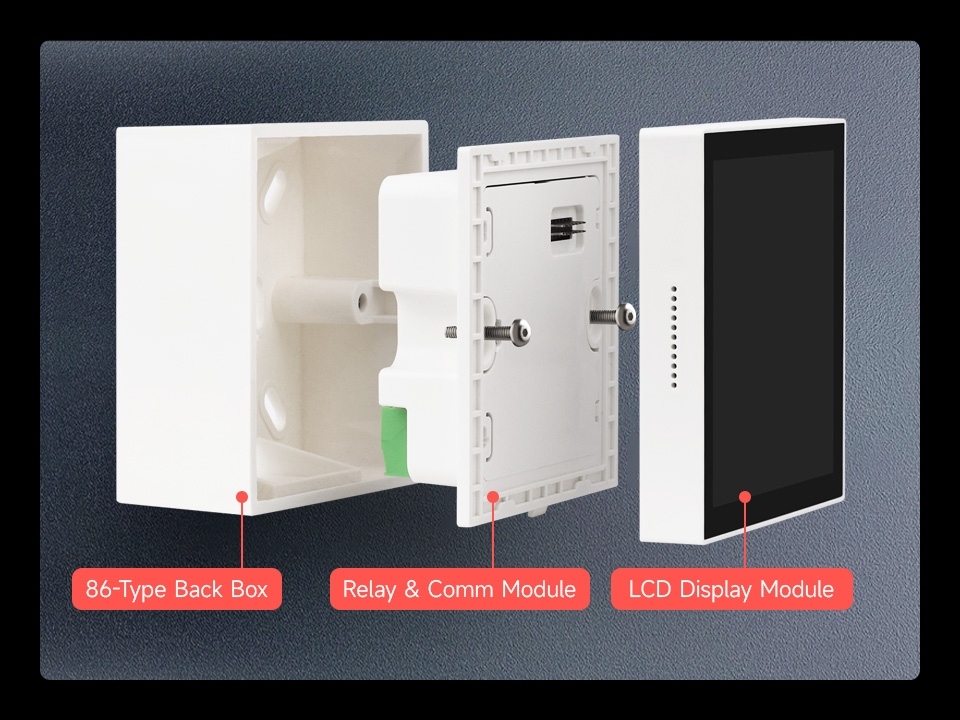

Installation Diagram

Designed with standard 86 measurements and a modular structure for simple installation.

What's On Board

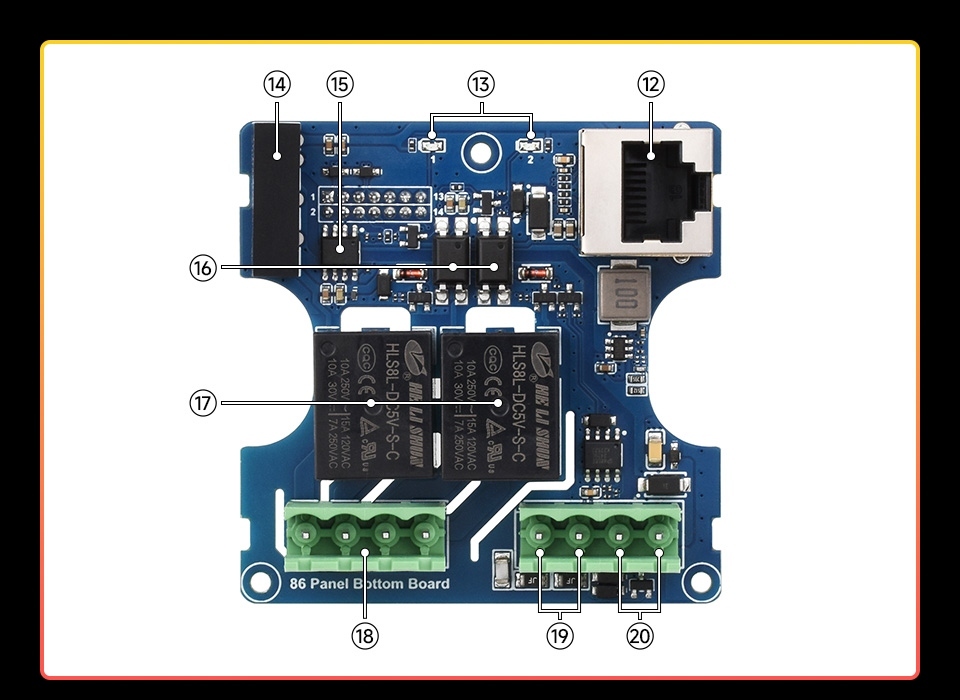

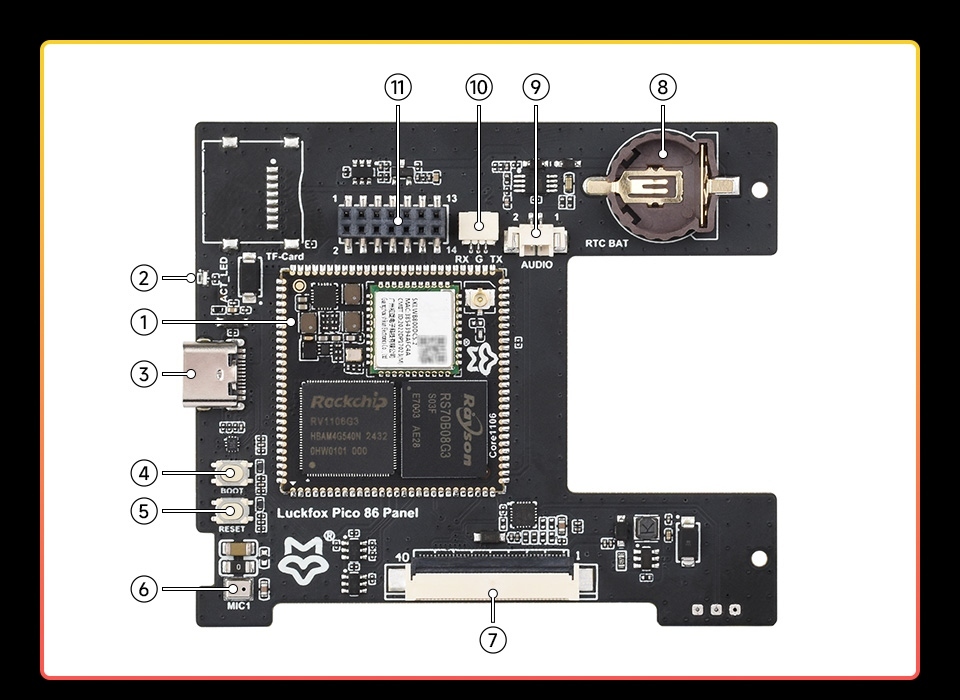

1. Core1106
   RV1106G3 / RV1106G2 core module
   optional for Wi-Fi / Bluetooth wireless module
2. ACT_LED
   for indicating system operation status in the default image
3. USB Type-C connector
   for power supply and program burning
4. BOOT button
   Press it when powering on or resetting to enter download mode
5. RESET button
   for rebooting the system
6. Onboard microphone
7. RGB LCD interface
8. RTC button cell holder
9. Audio interface
   MX1.25 2P connector, supports 8Ω 1W speaker
10. Serial port Debug interface
    SH1.0 3P connector
11. 14pin multi-function pin header
    for connecting 86 Panel Bottom Board

12. RJ45 100M Ethernet port
13. Relay indicators
14. Power isolation module
15. Digital isolator
16. Optocoupler isolation
17. Relay
18. Relay screw terminal
19. RS485 screw terminal
20. Power screw terminal
    wide voltage range input: DC 6V ~ 30V

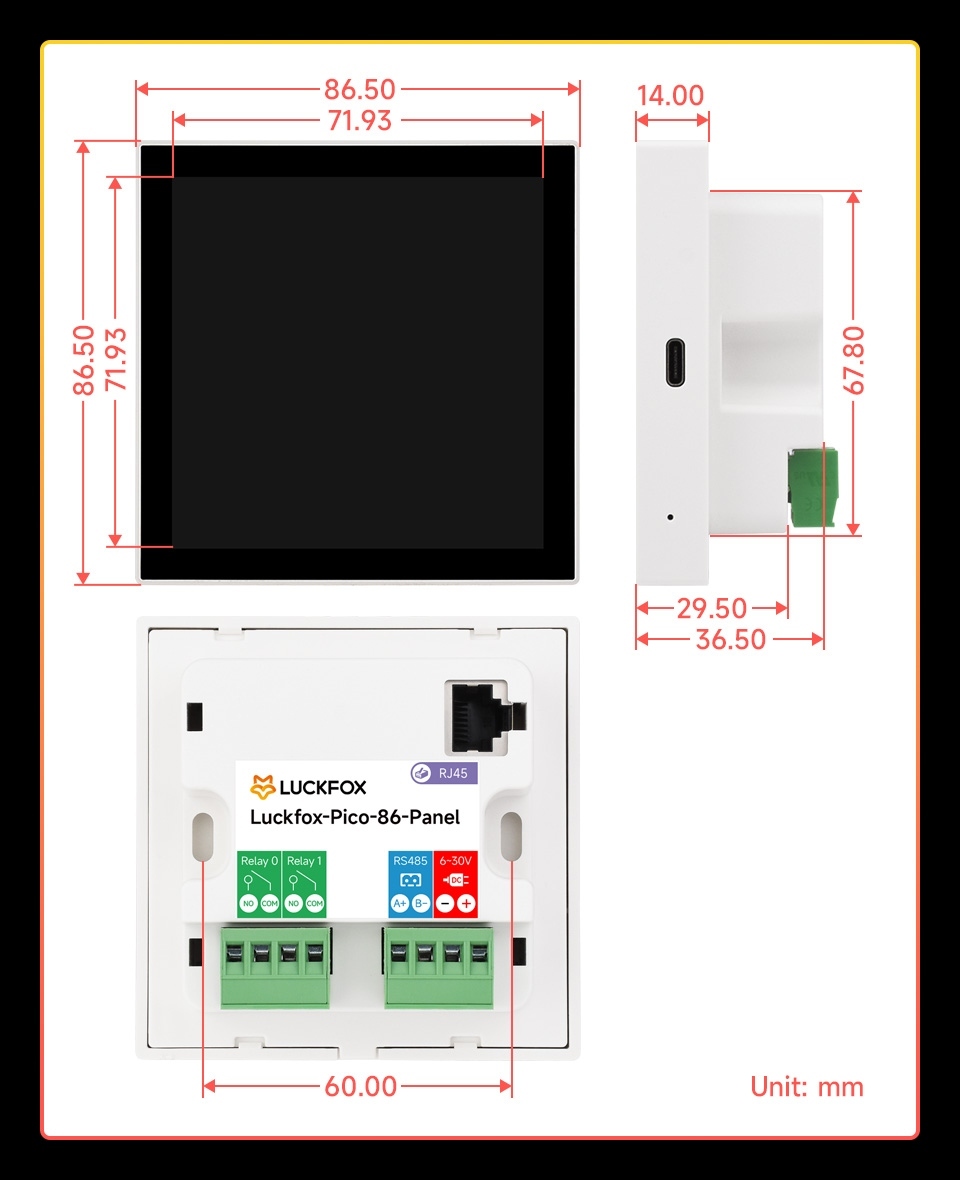

Dimensions

Package Content:

• Luckfox-Pico-86-Panelx1
