LM12 4A 90deg Male-Female Plug Industrial Waterproof Power Connector 1 Meter Cable

CNLINKO

No reviews yet Write a Review
SKU:
131-LM12-03-MP-FP-1M-002
MPN:
LM12-03-MP-FP-1M-002
LM12 Male-Female IP65 Industrial Waterproof Power Connector
Quantity
Unit Price (ex. GST)
1 - 9
₹ 929.01
10 - 24
₹ 836.11
25 or above
₹ 743.21
The LM12 Male-Female Plug is a compact IP65 waterproof industrial power connector featuring a pre-wired cable design, high tensile strength, six socket types, and superior resistance to dust, corrosion, and temperature for harsh environments. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,096.23 inc. GST
₹929.01 ex. GST
12 people looking at this.

Technical Specifications

Brand:
CNLINKO
Protection Level:
IP65
Operating Voltage:
250V
Number Of Pins:
3
Rated Current:
4A
Withstanding Voltage:
1500V
Contact Resistance:
5.0mohm
Mating Cycle:
500
Contact Diameter:
Phi 1.0x3
Temperature:
-25 C~+85 C
Series:
LM Series
Gender:
Male-Female Plug
Connector Size:
M12

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

LM12 Male-Female Plug – IP67 Industrial Waterproof Power Connector

The LM12 Male-Female Plug IP65 Waterproof Power Connector is a compact, high-performance industrial-grade circular connector designed for reliable electrical connectivity in harsh and space-constrained environments. Featuring a small form factor and rugged build, the LM12 connector is ideal for applications that demand compact installation, durability, and superior protection against environmental elements. The connector is constructed as a one-piece high-quality cable assembly, eliminating the need for manual wiring and ensuring a more stable and maintenance-free connection. Its high tensile strength and excellent bending resistance make it ideal for mobile and vibration-prone systems, ensuring long-term reliability even in continuous operation. Available with six socket variants, the LM12 series provides versatile compatibility to meet diverse equipment connection requirements. Built to industrial-grade standards, this connector offers IP65 waterproof and dustproof protection, along with resistance to corrosion, high and low temperatures, and other extreme environmental factors — making it suitable for both indoor and outdoor applications.

Key Features

  • Compact M12 Design: Small size and streamlined structure suitable for compact or limited-space installations.
  • Pre-Molded Cable Assembly: One-piece, high-quality cable design eliminates the need for manual wiring.
  • High Mechanical Strength: Excellent tensile strength and anti-bending durability for long service life.
  • Versatile Socket Options: Available in six socket types to accommodate various industrial connection needs.
  • IP67 Waterproof and Dustproof: Ensures reliable operation in wet, dusty, or outdoor environments.
  • Corrosion and Temperature Resistant: Operates reliably in harsh industrial and environmental conditions.
  • Industrial-Grade Durability: Designed for stable electrical performance and protection under demanding applications.
  • Applications: Ideal for industrial automation, sensors, LED lighting, robotics, power equipment, and outdoor systems.

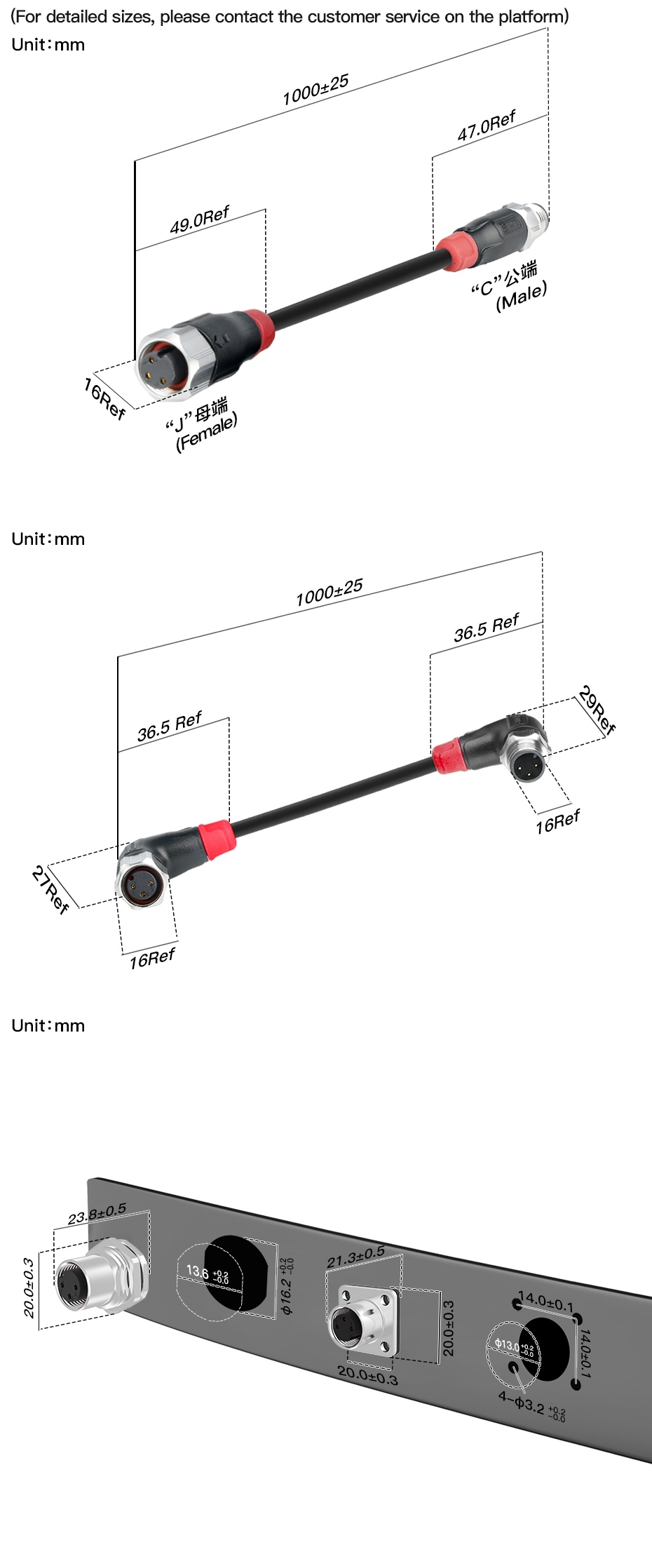

Dimensions
