Name: LattePanda Sigma - x86 Windows / Linux Single Board Computer Server 32GB RAM
Brand: DFRobot
SKU: 147-DFR1090
Price: 80821.74 INR
Availability: InStock

Technical Specifications

Brand:

DFRobot

CPU:

Intel Core i5-1340P

Cores / Threads:

12C(4P+8E) / 16T

Max Turbo Frequency:

4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)

L2 Cache:

12 MB

Base Power:

28 W

Graphics:

Intel Iris Xe Graphics

Max Dynamic Frequency:

1.45 GHz

Execution Units:

Co-Processor:

Microchip ATmega32U4-MU

Memory:

Dual-Channel 32GB LPDDR5-6000

Storage-Drive Form Factor:

M.2 SSD (NVMe/SATA), SATA Drive

Wireless Form Factor:

M.2 Wireless Module (PCIe/CNVio)

HDMI Port:

HDMI 2.1, Up to 4096X2304 60Hz

USB Type-C Port:

DP 1.4a, Up to 7680X4320 60Hz (One Monitor)

Embedded Display Port:

eDP 1.4b, Up to 4096X2304 120Hz

USB Type-A:

2XUSB2.0 (480Mbps),2XUSB3.2 Gen 2 (10Gbps)

USB Type-C:

2 x Thunderbolt 4 (40Gbps)

HDMI:

HDMI 2.1

Ethernet:

2X2.5GbE RJ45 Ports (Intel i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)

Power:

5.5mmX2.5mm DC Jack

Audio:

3.5mm Microphone Headphone Combo Connector

Sim Card:

Micro Sim Card Slot

Internal I/O - USB 2.0:

2.0mm Pitch 4-Pin Connector, 480Mbps

Fan:

1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control

SATA:

SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector

Front Panel:

2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED

Front Audio Panel:

2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in

COM:

2.54mm Pitch 9-Pin Header,Supports RS232, RS485

GPIO:

2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins

eDP:

0.5mm Pitch 40-Pin Connector, 4 Lanes

Expansion Slot-M.2 M Key:

Type 2280, Supports PCIe 3.0X4,Type 2280, Supports PCIe 4.0X4

M.2 B Key:

Type 2242/2252/2280, Supports SATA III/PCIe 3.0X1, USB2.0, USB3.0, SIM

M.2 E Key:

Type 2230, Supports PCIe 3.0X1,USB2.0, Intel CNVio

Security-TPM:

Built-in TPM (2.0)

Power Input:

5.5mmX2.5mm

DC Jack:

DC 12~20V

USB Type C:

PD 20V

Power Adapter:

19V DC, 4.74A, 90W

RTC Battery-CR1220 Battery Holder:

1.27mm Pitch 2-Pin Connector:

Microsoft Windows:

Windows 10, Windows 11

Linux:

Ubuntu 22.04

Operating Temperature:

0~45C

Relative Humidity:

0~80%

Form Factor:

3.5, 146X102 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

LattePanda Sigma - X86 Windows / Linux Single Board Computer 32GB RAM, 500GB SSD, WiFi 6E: Power-Packed Performance for Servers, AI, and Edge Computing

The LattePanda Sigma is a next-generation x86 single board computer built for versatility, speed, and power. Equipped with the Intel Core i5-1340P processor featuring 12 cores and 16 threads, along with Intel Iris Xe Graphics, this SBC delivers unmatched efficiency and performance for multitasking, AI inference, IoT projects, and edge computing. With 32GB Dual-Channel LPDDR5 RAM and a 500GB SSD, it ensures ultra-fast responsiveness for demanding applications. Supporting Windows 10, Windows 11, and Ubuntu, and offering WiFi 6E connectivity, it is the perfect choice for home servers, streaming setups, or game servers. The board supports quad 4K displays, making it an excellent choice for immersive visual experiences.

Key Features

Ultimate Performance: Powered by the Intel Core i5-1340P processor with 12 cores and 16 threads, featuring turbo boost up to 4.60 GHz on performance cores and 3.4 GHz on efficient cores.
Lightning-fast Memory: Equipped with 32GB Dual-Channel LPDDR5-6000 RAM for smooth multitasking and seamless performance.
High-level Graphics: Intel Iris Xe Graphics delivers exceptional rendering capabilities, supporting modern visual workloads.
Quad 4K Display Support: Enables connection to up to four 4K displays simultaneously for maximum productivity and clarity.
Rich Interfaces: Multiple connectivity options provide flexibility for expansion and diverse project applications.
User-friendly Layout: Designed with intuitive interface placement, ensuring effortless plug-and-play usability.
Diverse OS Compatibility: Fully supports Windows 10, Windows 11, and Ubuntu, offering flexibility for developers and users.
Future-Ready Connectivity: WiFi 6E integration guarantees faster, more stable wireless performance for modern networks.

Ultimate Performance

LattePanda Sigma is powered by the 13th Intel Core i5-1340P CPU, which has 12 cores and 16 threads with a turbo frequency of up to 4.6GHz, providing maximum performance and multitasking capabilities. This single-board computer includes Intel Iris Xe Graphics with 80 execution units (EUs) capable of reaching dynamic frequencies of up to 1.4GHz, resulting in enhanced graphics performance and rendering quality.

Lightning-fast memory

LattePanda Sigma supports up to 32GB of dual-channel LPDDR5-6000 memory and has a bandwidth speed of up to 102.4GB/s, which is twice as fast as the previous iteration.

Rapid chill with a silent whisper.

Because of its strong cooling capabilities, the LattePanda Sigma's processor constantly maintains a high 44W TDP (Thermal Design Power), giving stable and prolonged performance without degradation.

Perfect Balance of Performance and Energy

The Intel Core i5-1340P processor combines outstanding energy economy and impressive performance. For example, it has equivalent performance as the Intel Core i9-9900K but consumes half the power. This economical energy consumption does not lose computational power, providing an excellent balance suitable for a wide range of applications.

Compact Size, Mighty Power

This small PC is somewhat larger than a typical mouse, measuring 102mm*146mm. Its small size enables for easy mobility or incorporation in devices with limited space.

Quad 4K Displays

LattePanda Sigma enables easy multitasking by connecting up to four 4K screens at the same time. This functionality allows users to easily manage many jobs.

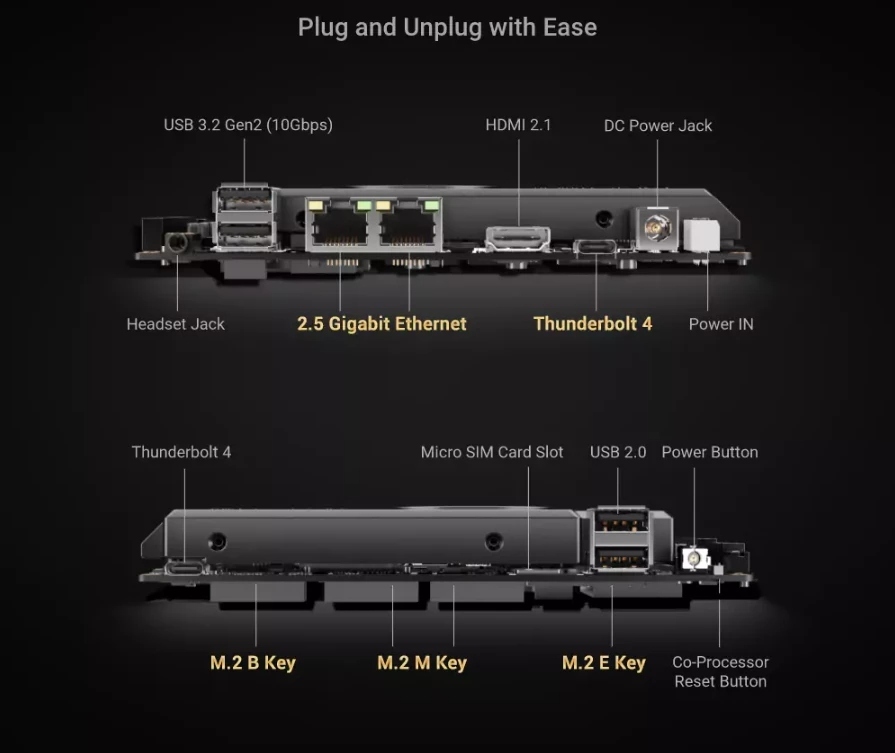

Rich interfaces

LattePanda Sigma supports a wide range of interfaces, including USB, HDMI, RS232, GPIO, Ethernet, and eDP. It also has four M.2 slots and two Thunderbolt 4 ports, allowing for fast connections and wide extension options for M.2 SSDs, 4G/5G modules, Wi-Fi modules, HD displays, eGPU, Type-C docks, and more.

Diverse OS Support

LattePanda Sigma single board server offers a wide range of operating systems, including Windows 10, Windows 11, and Ubuntu, guaranteeing that there is always one that meets your requirements.

Applications:
