LattePanda Sigma - x86 Windows/Linux Single Board Computer Server

DFRobot

No reviews yet Write a Review
SKU:
147-DFR1080
MPN:
DFR1080
LattePanda Sigma – x86 SBC with Intel i5-1340P, 16GB RAM, 500GB SSD, WiFi 6E, and quad 4K display support
LattePanda Sigma with Intel i5-1340P, 16GB LPDDR5 RAM, 500GB SSD, WiFi 6E, and Iris Xe Graphics. Runs Windows 10/11 & Ubuntu. Supports quad 4K displays for AI, IoT, automation, and edge computing. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹74,399.00 inc. GST
₹63,050.00 ex. GST
2 people looking at this.

Technical Specifications

Brand:
DFRobot
CPU:
Intel Core i5-1340P
Cores / Threads:
12C(4P+8E) / 16T
Max Turbo Frequency:
4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
L2 Cache:
12 MB
Base Power:
28 W
Graphics:
Intel Iris Xe Graphics
Max Dynamic Frequency:
1.45 GHz
Execution Units:
80
Co-processor:
Microchip ATmega 32U4-MU
Memory:
Dual-Channel 16GB LPDDR5-6400
Storage Drive Form Factor:
M.2 SSD (NVMe/SATA), SATA Drive
Wireless Form Factor:
M.2 Wireless Module (PCIe/CNVio)
Display HDMI Port:
HDMI 2.1, Up to 4096X2304 60Hz
USB Type-C Port:
DP 1.4a, Up to 7680X4320 60Hz (One Monitor)
Embedded Display Port:
eDP 1.4b, Up to 4096X2304 120Hz
External I/O USB Type-A:
2 x USB2.0 (480Mbps), 2XUSB3.2 Gen 2 (10Gbps)
USB Type-C:
2 x Thunderbolt 4 (40Gbps)
HDMI:
HDMI 2.1
Ethernet:
2 x 2.5GbE RJ45 Ports (Intel i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
Power:
5.5mm x 2.5mm DC Jack
Audio:
3.5mm Microphone Headphone Combo Connector
Sim Card:
Micro Sim Card Slot
Internal I/O-USB 2.0:
2.0mm Pitch 4-Pin Connector, 480Mbps
Fan:
1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
SATA:
SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
Front Panel:
2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
Front Audio Panel:
2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
COM:
2.54mm Pitch 9-Pin Header,Supports RS232, RS485
GPIO:
2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
eDP:
0.5mm Pitch 40-Pin Connector, 4 Lanes
Expansion Slot-M.2 M Key:
Type 2280, Supports PCIe 3.0 x4,Type 2280, Supports PCIe 4.0 x4
M.2 B Key:
Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
M.2 E Key:
Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio
Security-TPM:
Built-in TPM (2.0)
Power Input:
5.5mmX2.5mm DC Jack: DC 12~20V
USB Type C:
PD 20V
Power Adapter:
19V DC, 4.74A, 90W
RTC Battery- CR1220 Battery Holder:
3V
1.27mm Pitch 2-Pin Connector:
3V
Operating System-Microsoft Windows:
Windows 10, Windows 11
Linux:
Ubuntu 22.04
Operating Temperature:
0~45 C
Relative Humidity:
0~80
Form Factor:
3.5, 146x102 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

LattePanda Sigma – Hackable x86 Windows/Linux SBC with 16GB RAM, 500GB SSD & WiFi 6E: High-performance single board server for AI, IoT & edge computing

The LattePanda Sigma is a next-generation hackable x86 single board computer (SBC) that combines desktop-class performance with the flexibility of an embedded system. Powered by the Intel Core i5-1340P processor featuring 12 cores and 16 threads, it delivers up to 4.6GHz turbo frequency, making it an excellent choice for servers, AI inference, edge computing, IoT solutions, and high-performance maker projects.

Equipped with 16GB dual-channel LPDDR5-6400 RAM, the Sigma ensures ultra-fast data throughput and smooth multitasking for demanding applications. Its integrated Intel Iris Xe Graphics supports quad 4K display outputs, enabling immersive visualization, content creation, and professional-grade multimedia workflows. With a user-friendly plug-and-play design, versatile interface layout, and support for Windows 10, Windows 11, and Ubuntu, the LattePanda Sigma is designed to be a powerful, hackable SBC that caters to developers, system integrators, and enthusiasts alike.

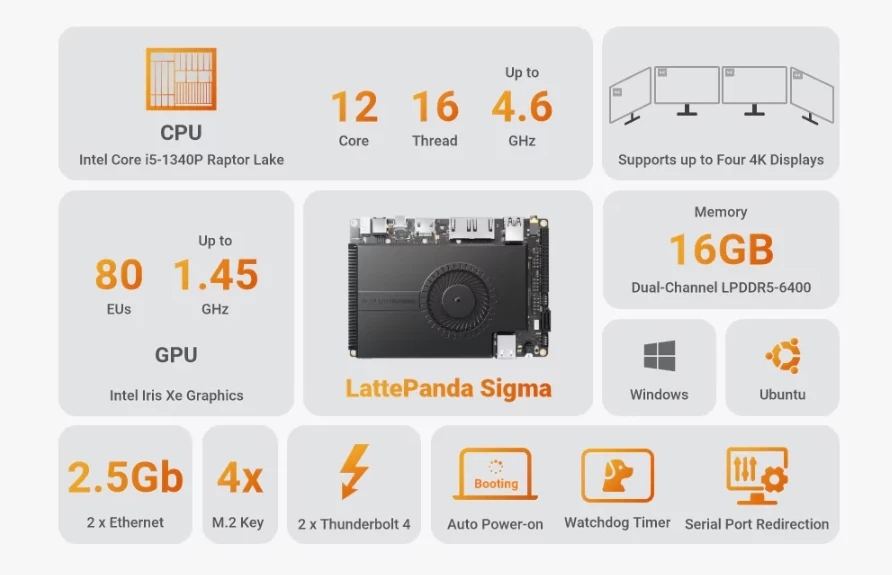

Key Features:

  • Processor: Intel Core i5-1340P, 12 cores / 16 threads, turbo frequency up to 4.60GHz (P-core) and 3.4GHz (E-core).
  • Memory: 16GB LPDDR5-6400 dual-channel RAM for high-speed multitasking.
  • Graphics: Integrated Intel Iris Xe Graphics with strong multimedia and AI acceleration.
  • Display Support: Up to quad 4K displays for superior visual clarity.
  • Rich Interfaces: Multiple connectivity options for peripherals, storage, and expansion.
  • Hackable & Flexible: Designed for developers, IoT engineers, AI researchers, and makers.
  • Operating System Support: Compatible with Windows 10, Windows 11, and Ubuntu Linux.
  • Applications: Perfect for home servers, streaming servers, game servers, AI edge computing, IoT, and industrial applications.

The Best Performance

The 13th Intel Core i5-1340P processor, which has 12 cores and 16 threads and a turbo clock of up to 4.6GHz, powers the LattePanda Sigma and provides the best performance and multitasking capabilities.

Exceptionally Quick Memory

With a remarkable bandwidth performance of up to 102.4GB/s, LattePanda Sigma doubles the speed of the previous generation and offers up to 32GB of dual-channel LPDDR5-6400 memory.

Rapid chill with a silent whisper

Because of its strong cooling capabilities, the LattePanda Sigma's processor constantly maintains a high 44W TDP (Thermal Design Power), giving stable and prolonged performance without degradation.
Furthermore, the cooling fan's silent operation at only 35 decibels in idle mode creates a peaceful environment.


Perfect Balance of Performance and Energy

The Intel Core i5-1340P processor combines outstanding energy economy and impressive performance. For example, it has equivalent performance as the Intel Core i9-9900K but consumes half the power. This economical energy consumption does not lose computational power, providing an excellent balance suitable for a wide range of applications.

Compact Size, Mighty Power

This little PC is only slightly larger than a standard mouse, measuring 102mmx146mm. Its small size enables for easy mobility or incorporation in devices with limited space.

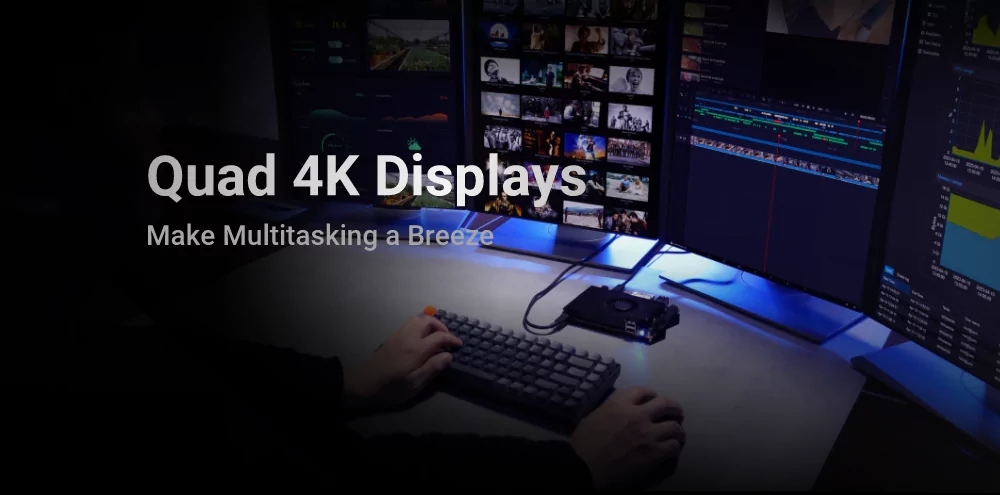

Quad 4K Displays

LattePanda Sigma enables easy multitasking by connecting up to four 4K screens at the same time. This functionality allows users to easily manage many jobs.

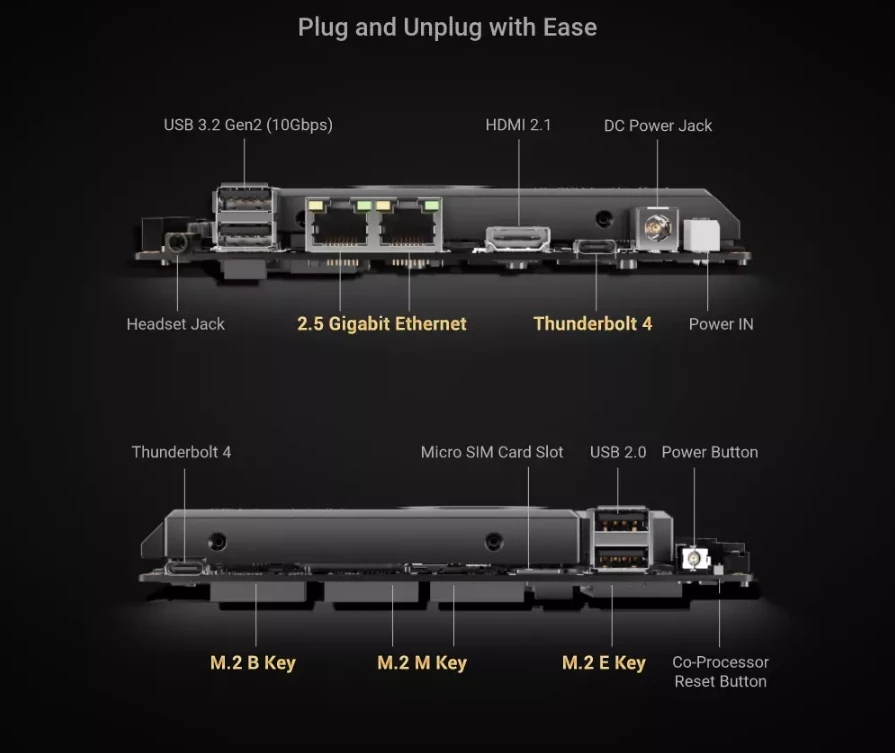

Rich interfaces

LattePanda Sigma supports a wide range of interfaces, including USB, HDMI, RS232, GPIO, Ethernet, and eDP. It also has four M.2 slots and two Thunderbolt 4 ports, allowing for fast connections and wide extension options for M.2 SSDs, 4G/5G modules, Wi-Fi modules, HD displays, eGPU, Type-C docks, and more.

Diverse OS Support

LattePanda Sigma single board server offers a wide range of operating systems, including Windows 10, Windows 11, and Ubuntu, guaranteeing that there is always one that meets your requirements.

Professional and Instant Technical Support

To suit the needs of industry users, the LattePanda team offers prompt and effective technical support. Whether it's installation and configuration, troubleshooting, or system integration, LattePanda's specialized technical team is always available to assure the stability and smoothness of your project. Kindly contact tech support lattepanda.com.

Package Contents:

  • LattePanda Sigma x1
  • Active Cooling Fan (Assembled) x1
  • Metal Protective Bottom Plate x1
  • Thermal Pads for M.2 SSD x2
  • Power Adapter with DC cable x1
  • AC Cable(EU & US & UK) for power adapter x3
  • RTC Battery (Assembled）x 1
  • User Manual x 1
  • Safety Information
