Name: LattePanda Mu - A Micro x86 Compute Module
Brand: DFRobot
SKU: 147-DFR1146
Price: 18677.04 INR
Availability: InStock

Technical Specifications

Brand:

DFRobot

Processor:

Intel Processor N100 4 Cores up to 3.4GHz

Memory:

LPDDR5 4800MT/s 8GB with IBECC supported

Storage:

eMMC 5.1 64GB

Display:

3 Ouputs; Max Resolution 4096 x 2160 60Hz

I/O-PCIe 3.0:

Up To 9 lanes

SATA 3.0:

Up To 2 Ports

USB 3.2 (10Gbps):

Up To 4 Ports

USB 2.0 (480Mbps):

8 ports I2C, UART and GPIOs

Power:

9~20V

Operating System:

Windows, Ubuntu

Environment:

0~60°C; 0~80% Relative Humidity

Size:

69.6 X60mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

LattePanda Mu – Micro x86 Compute Module with Intel N100, 8GB/16GB RAM, 64GB eMMC & Windows 11 Enterprise License: Compact yet powerful SBC for embedded innovation

The LattePanda Mu is a high-performance micro x86 compute module designed for developers, makers, and system integrators who need the power of Windows 11 Enterprise in a compact form factor. Powered by the Intel Processor N100 (quad-core, up to 3.4GHz), the LattePanda Mu balances performance and efficiency, making it ideal for IoT, AI edge computing, robotics, smart gateways, and industrial automation. Available in 8GB or 16GB LPDDR5 (4800MHz with IBECC support) configurations, the LattePanda Mu ensures smooth multitasking and reliability for data-intensive applications. With 64GB eMMC 5.1 onboard storage and the flexibility of expansion via PCIe and SATA interfaces, it provides a robust foundation for both prototyping and production systems.

The module exposes an extensive set of I/O, including 3 HDMI/DisplayPort outputs, up to 9 PCIe 3.0 lanes, 8 × USB 2.0, up to 4 × USB 3.2, 2 × SATA 3.0, and 64 GPIOs, offering developers the freedom to design custom carrier boards tailored to their project needs. Open-source KiCAD carrier board design files make customization even easier. With the inclusion of a Windows 11 Enterprise license, the LattePanda Mu is enterprise-ready out of the box, offering security, manageability, and long-term support required for commercial and industrial deployments.

Key Features:

Processor: Intel Processor N100, quad-core, up to 3.4GHz.
Memory Options: Available in 8GB or 16GB LPDDR5 (4800MHz, IBECC supported).
Storage: 64GB eMMC 5.1 onboard.
Operating System: Comes with Windows 11 Enterprise license pre-installed.
Configurable TDP: Adjustable from 6W – 35W for flexible performance scaling.
I/O Interfaces:
- 3 × HDMI/DisplayPort
- Up to 9 × PCIe 3.0 lanes
- 8 × USB 2.0 and up to 4 × USB 3.2
- 2 × SATA 3.0 ports
- 64 × GPIOs for expansion.
Carrier Board Support: Open-source KiCAD design files for rapid development.
Applications: Ideal for IoT, robotics, AI inference, smart gateways, edge computing, and industrial embedded systems.

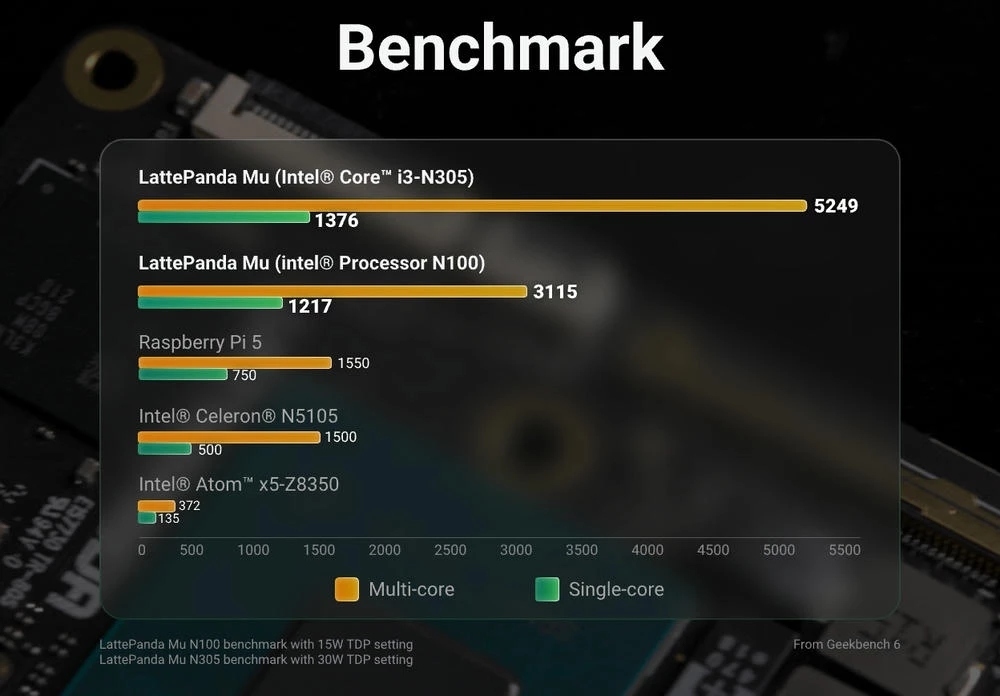

Small But Powerful

The LattePanda Mu x86 compute module includes an Intel N100 quad-core processor with a turbo clock of 3.4GHz, providing adequate performance and multitasking capabilities for the majority of applications. LattePanda Mu computing module, powered by an Intel Processor N100, achieves a multi-core score of 3115 and a single-core score of 1217 on Geekbench 6, surpassing the Raspberry Pi 5, Intel Celeron N5105, and Atom x5-Z8350. Its CPU performance twice that of the Raspberry Pi 5.

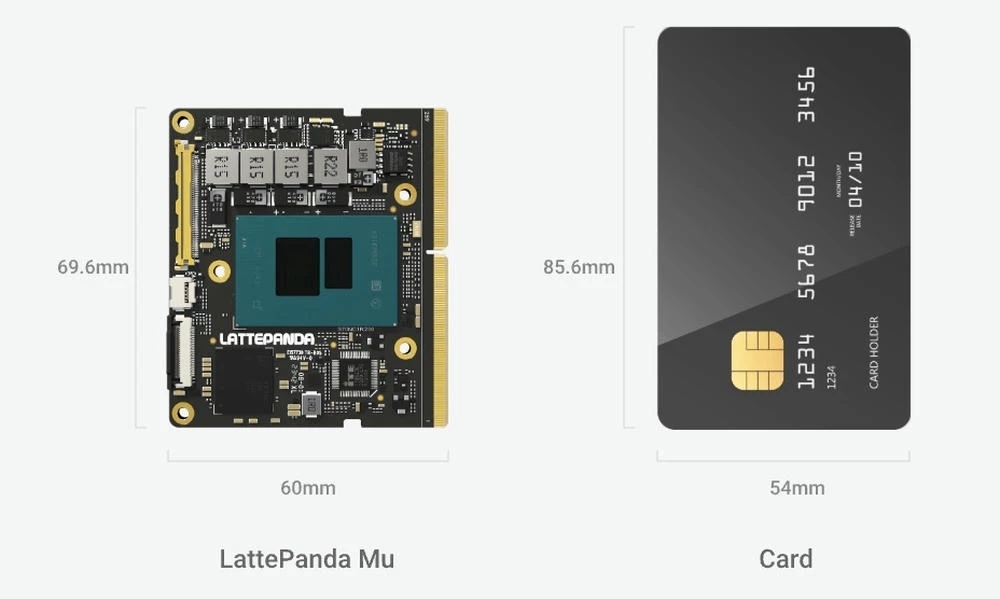

Card-Sized

Despite its compact size (69.6mm x 60mm), the LattePanda Mu computer-on-module may be integrated into space-constrained devices, providing powerful computation without taking up much room.

Flexibility in Performance and Energy

The processor's TDP can be set anywhere between 6W and 35W, giving you more control over power consumption and heat production. The 6W option allows for efficient operation with low heat and silent passive cooling, whilst the 35W level provides substantial performance but requires active cooling.

Flexible Expansion Pins

The LattePanda Mu compute module exposes numerous ports, including three HDMI/DisplayPort, eight USB 2.0, up to four USB 3.2, nine PCIe 3.0 lanes, two SATA 3.0, and 64 extensible GPIOs. This provides exceptional flexibility and expandability, allowing you to design the ideal solution.

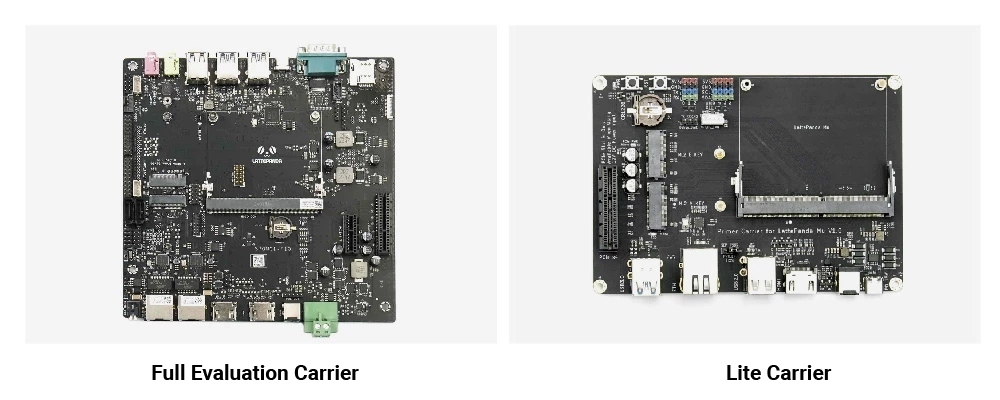

Carrier Boards - Expanding Infinite Possibilities

DFRobot provides a lightweight carrier board for the LattePanda Mu, providing a rapid development platform with critical interfaces for efficient design verification. There is also a full-function evaluation carrier board available, which exposes all of the LattePanda Mu's pins for intensive hardware and software testing.

Multi-System Support

LattePanda Mu x86 computer-on-module supports a variety of operating systems, including Windows 10, Windows 11, and Ubuntu, guaranteeing that there is always one that meets your requirements.
