Palm Sized High Performance x86 Single Board Computer for Industrial and Commercial Deployment
LattePanda IOTA is a compact yet powerful x86 single board computer designed to bridge rapid prototyping and real world commercial deployment. Powered by the Intel Processor N150 and equipped with 8GB LPDDR5 RAM and 64GB onboard eMMC storage, it delivers a significant performance upgrade over earlier LattePanda generations while maintaining a palm sized footprint suitable for space constrained designs.
Built as the next evolution of the classic LattePanda V1, IOTA integrates an RP2040 co processor to handle real time control and I O tasks alongside the main x86 processor. With support for full desktop operating systems such as Windows and Ubuntu, enhanced memory reliability through IBECC, and flexible hardware configurations, LattePanda IOTA is ideal for industrial automation intelligent gateways robotics and interactive digital installations that demand long term reliability and scalability.
Key Features
- Intel Processor N150 x86 Architecture
Delivers strong computing performance for industrial and commercial workloads
- Integrated RP2040 Co Processor
Enables real time control and flexible hardware interfacing
- High Speed LPDDR5 Memory With IBECC
Improves data integrity and system reliability in continuous operation
- Desktop Operating System Compatibility
Supports Windows and Ubuntu for broad software ecosystem access
- Palm Sized Compact Form Factor
Ideal for embedded systems robotics and space constrained deployments

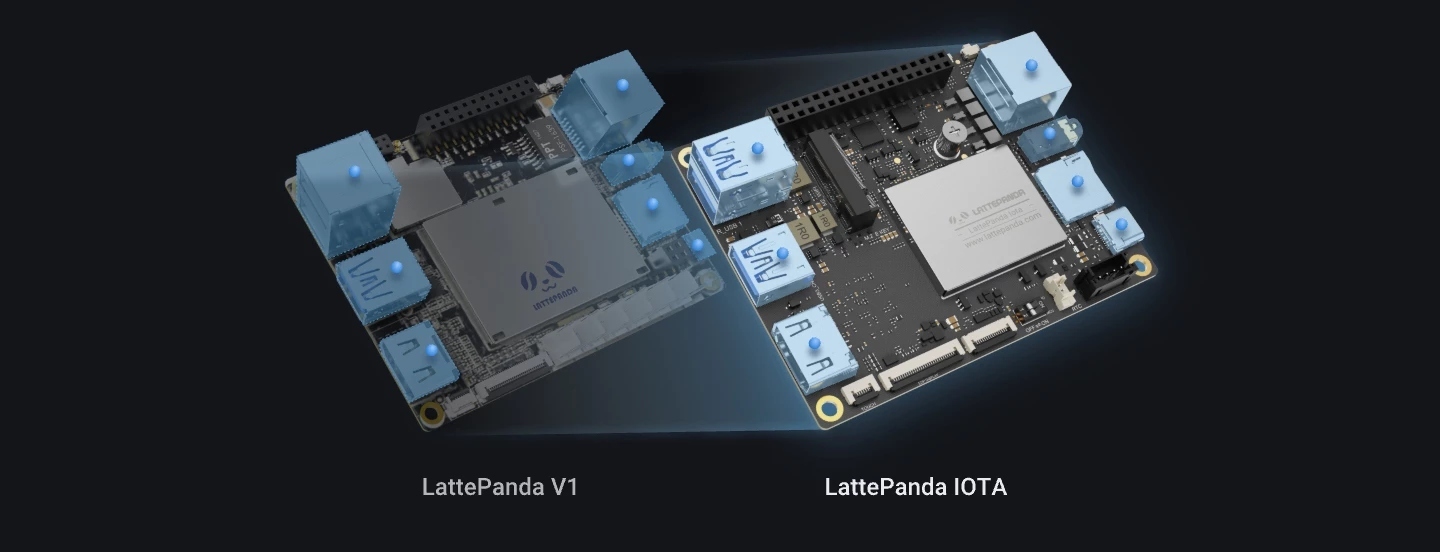

Seamless Upgrade: Retains the classic LattePanda V1 form factor for easy project migration
Maintaining the LattePanda V1's tiny size (88mmx70mm) and interface architecture, LattePanda IOTA allows for easy updates without the need for mechanical redesign or enclosure modifications, considerably saving development time and maintaining project continuity.
8xFaster Performance

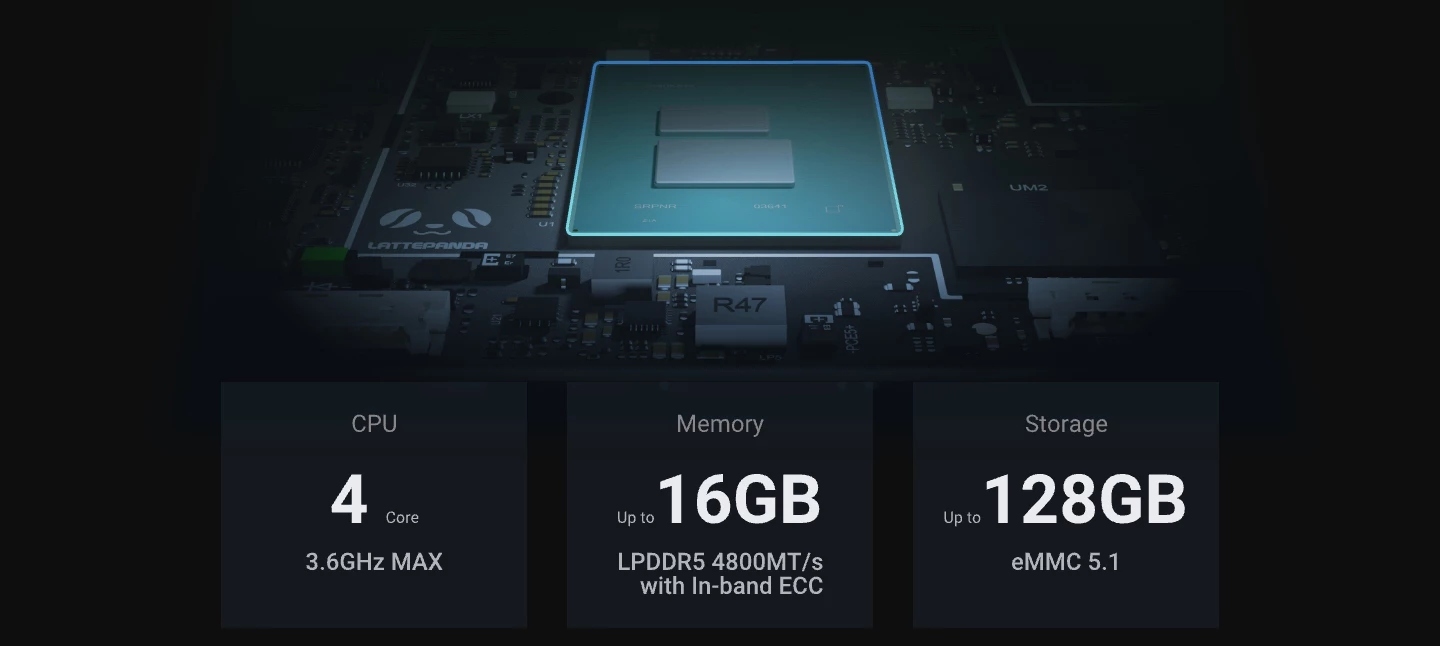

LattePanda IOTA, with its Intel Twin Lake N150 quad-core processor (up to 3.6GHz) and LPDDR5 high-speed memory, provides 8x the CPU performance of LattePanda V1, ensuring enough performance and multitasking capacity for most applications.

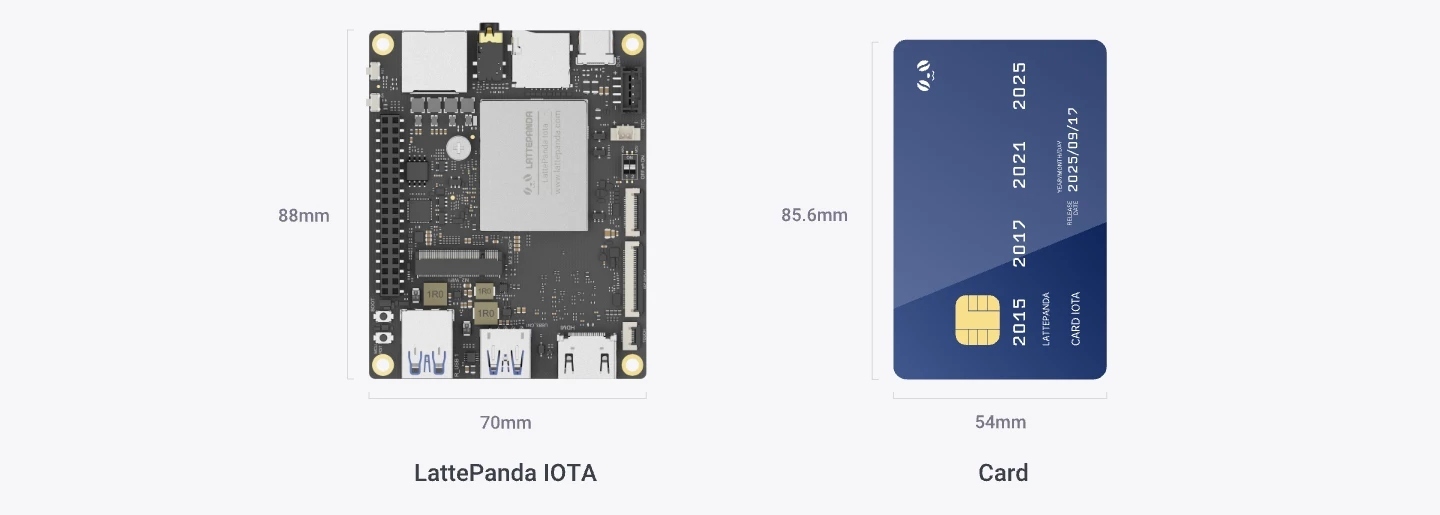

Palm-Sized Design
This small LattePanda IOTA, measuring only 88mm x 70mm, can be readily embedded into space-constrained applications such as robots, smart terminals, and portable inspection devices, significantly expanding deployment possibilities for edge embedded systems.

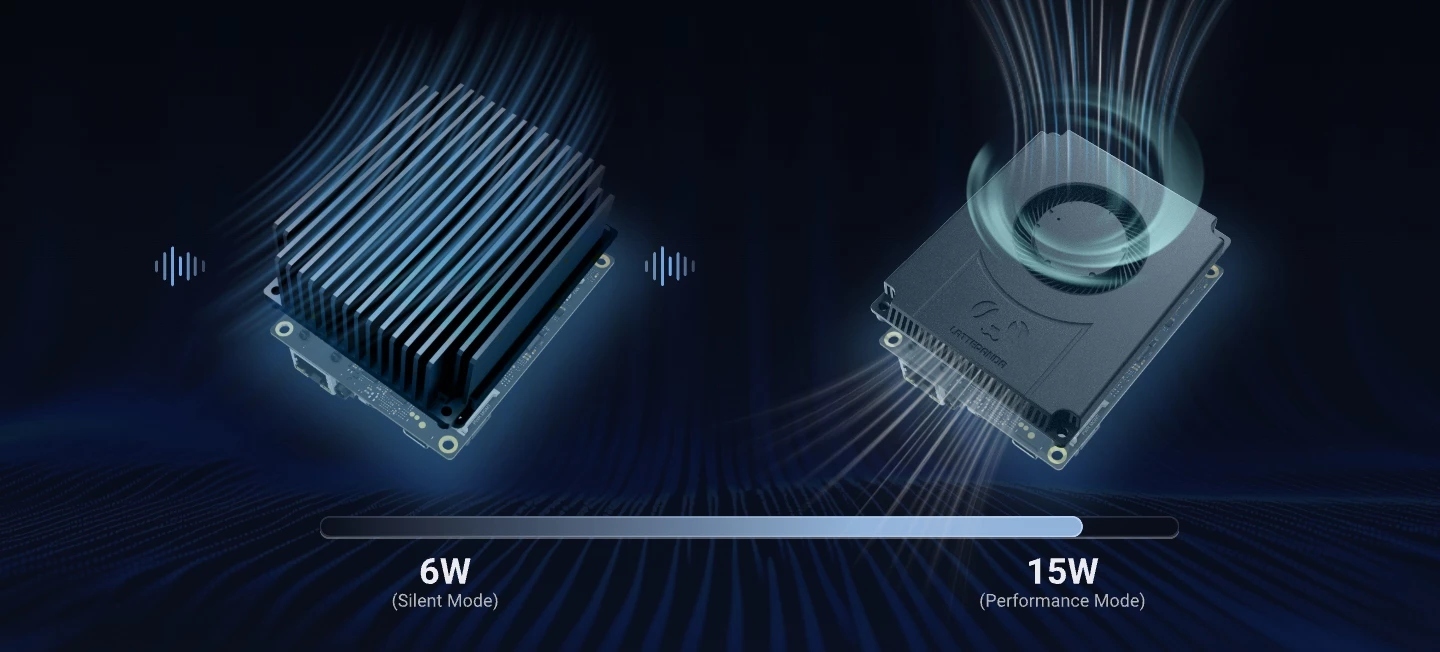

Flexibility in Performance and Energy
This small LattePanda IOTA, measuring only 88mmx70mm, can be readily embedded into space-constrained applications such as robots, smart terminals, and portable inspection devices, significantly expanding deployment possibilities for edge embedded systems.
- 6W mode: Enables fanless, silent operation, suitable for noise-sensitive embedded systems or quiet environments.
- 15W mode: Utilized with an active cooler to full performance, easily handling high-load computing tasks.

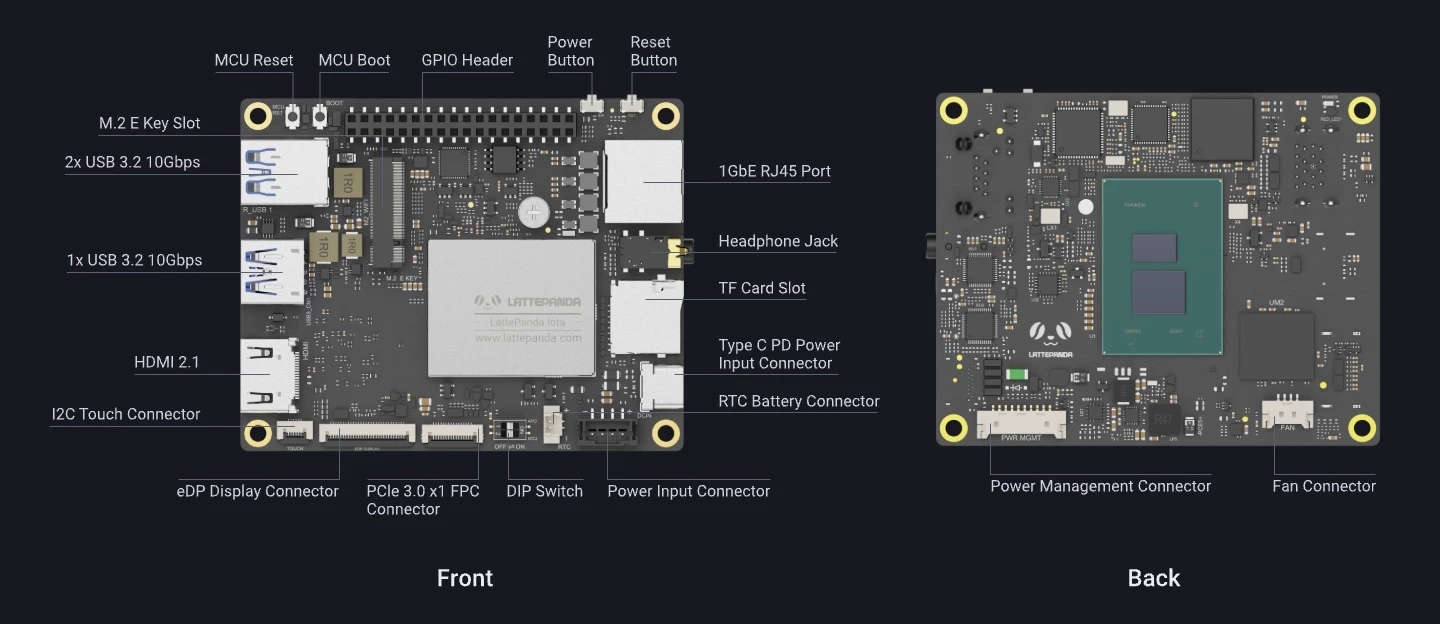

Rich I/O Connectivity
LattePanda IOTA offers a practical and comprehensive set of interfaces, including 3xUSB 3.2 Gen2 (10 Gbps) ports, a Gigabit Ethernet port, HDMI 2.1 and eDP dual video outputs, as well as M.2 E-Key and PCIe FPC expansion interfaces, allowing for a variety of peripheral connections on a single board.
Intel N150 + RP2040, Dual-Processor Collaboration
Along with the Intel N150 processor, LattePanda IOTA has an RP2040 co-processor with a dual-core Arm Cortex-M0+, plenty of GPIOs, and the ability to perform real-time I/O control, sensor data acquisition, motor drive duties, and even simulate a custom HID device. This architecture significantly minimizes the workload on the main CPU while improving system responsiveness and functional adaptability.
Various Expansion Boards
UPS Expansion board:
An uninterruptible power supply that is simple to connect. It has a runtime of up to 8 hours, automatic power-on, and safe shutdown to protect the project from power outages. (NOTE: 18650 batteries are not included).
51W POE Expansion Board:
Power the IOTA and connect to Gigabit Ethernet using a single wire. It meets the IEEE 802.3bt standard, making it ideal for remote deployments.
M.2 M-key Expansion Board:
Add a normal M.2 M-Key slot to the IOTA. Connect a high-speed NVMe SSD for enormous storage expansion or an AI accelerator card to perform edge computing activities.
M.2 4G LTE Expansion Board:
Allow IOTA to connect to the cellular network. Ideal for remote monitoring, mobile robotics, and field deployment equipment. (Note that the 4G LTE module and SIM card are not included).
Important Notice
- Heatsink Required: To ensure stable performance and prevent damage from overheating, a heatsink must be installed on the board before its first use.
- No Operating System Included: This model does not come with a pre-installed OS. You will need to provide and install your own licensed operating system (e.g., Windows, Ubuntu).
Package Includes:
- LattePanda IOTA (N150 8GB/64GB)x1
- CR2032 3V RTC Batteryx1
- Product Manualx1
