Name: LattePanda 3 Delta 864 - Windows / Linux Single Board Computer 8GB 64GB
Brand: DFRobot
SKU: 147-DFR0981
Price: 31640.52 INR
Availability: InStock

Technical Specifications

Brand:

DFRobot

Porcessor:

Intel Celeron N5105

CPU:

2.0~2.9GHz Quad-Core, Four-Thread

Graphics:

Intel UHD Graphics (Frequency: 450 – 800MHz)

Memory:

LPDDR4 8GB 2933MHz

Storage:

64GB eMMC V5.1

Expansion Slots:

1x M.2 M Key (2280), PCIe 3.0 2x, Supports NVMe SSD,1x M.2 B Key (2242/2252/2280), USB 2.0, USB 3.0, SIM, SATA (Option support PCIe 3.0 1x), Supports 4G & 5G module

Network Connectivity:

1x Wi-Fi 6 2.4GHz 5 GHz (160MHz), 1x Bluetooth 5.2,1x Intel 2.5 Gigabit Ethernet

USB Ports:

2x USB 3.2 Gen1 Type A,1x USB 3.2 Gen2 Type A, 1x USB Type C, Supports PD, DP, USB 2.0,1x USB 2.0 Pin Header

Display- 1x HDMI 2.0b:

Up to 4096x2160 60Hz HDR

Display-1x DP 1.4:

Up to 4096x2160 60Hz HDR

Display-1x eDP:

30 Pins, 2 lanes, Extendable Touch Displays up to 1920X1080

TPM:

Built-In TPM (2.0)

Co-Processor:

Arduino Leonardo ATMEGA32U4

Audio:

Microphone + Headphone Combo Connector

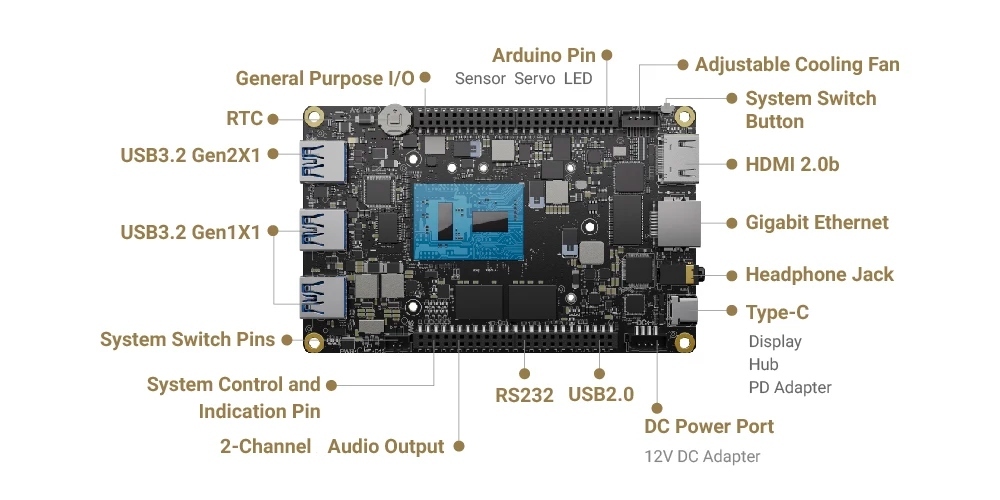

GPIO & Other Features:

Up To 12x Analog Inputs,Up to 20x Digital Input/Output (7 PWM),1x UART 1x I2C, 1x SPI,1x Audio Header,1x RS232 Header,1x USB 2.0 Header,1x Fan Port (4 Pins, 1.25mm, PWM, 5V),1x 4-Pin Header (Power and Switch)

OS Support:

Windows 10 & Windows 11 & Linux

Input Power-PH2.0 - 4Pin DC Input:

12V

Input Power-USB Type-C PD Input:

15V DC

RTC Battery:

CR927

Dimension:

125X78X16mm

Operating Temperature:

0C~60C

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

LattePanda 3 Delta 864 – Windows/Linux SBC with Win10 Enterprise License (8GB RAM / 64GB eMMC): Ultra-Performance in Pocket Size

The LattePanda 3 Delta 864 is a compact yet powerful Windows/Linux single-board computer designed for performance, flexibility, and connectivity. Powered by the Intel N5105 quad-core mobile processor (10W TDP), this SBC balances low power consumption with strong multitasking capabilities. With 8GB RAM and 64GB eMMC storage, it delivers smooth application performance while supporting storage expansion via dual M.2 slots for NVMe SSDs, 4G/5G modules, or SATA SSDs. The Win10 Enterprise license pre-installed ensures enterprise-ready security and management. Offering Wi-Fi 6, 2.5GbE Ethernet, multiple USB 3.2 ports, and 3-way video output (HDMI, DisplayPort over USB-C, and eDP), it is a complete computing solution for IoT, edge AI, robotics, and industrial applications. Its integrated Arduino coprocessor (ATmega32U4) and rich GPIO support make it developer-friendly, compatible with over 200+ sensors and actuators. With support for Windows 10/11 and Linux distributions, the LattePanda 3 Delta 864 provides unmatched versatility in a pocket-sized powerhouse.

Key Features

Low-Power, High-Performance CPU: Intel N5105 quad-core mobile processor with 10W TDP for efficiency and performance.
8GB RAM + 64GB Storage: Onboard memory and eMMC ensure fast multitasking and reliable performance.
Ultra-Fast Connectivity: Wi-Fi 6 and 2.5GbE Ethernet provide blazing speeds for streaming, downloads, and networking.
High-Speed Data Transfer: Includes 1× USB 3.2 Gen2 and 2× USB 3.2 Gen1 ports, up to 20× faster than USB 2.0.
Dual 4K HDR & 3-Way Video Output: Supports HDMI, DisplayPort over USB-C, and eDP for flexible display setups.
Dual M.2 Expansion Slots: M.2 B-key for 4G/5G or SATA SSD, and M.2 M-key for NVMe SSDs.
Rich GPIOs & Arduino Coprocessor: Integrated ATmega32U4 supports 200+ sensors and actuators for prototyping and IoT.
Multiple OS Compatibility: Runs Windows 10/11 and Linux (Ubuntu, etc.) for flexible deployment.
Enhanced BIOS Functions: Features Auto Power On, Watchdog Timer, and Serial Port Redirection for enterprise-grade reliability.
Pre-Licensed Win10 Enterprise: Secure, enterprise-ready operating system included for professional use

Ultra Performance In A Pocket Size:

The LattePanda 3 Delta is an x86 single-board computer powered by the Intel N5105 quad-core processor. It can achieve speeds of up to 2.9 GHz thanks to Intel Turbo Boost technology. In comparison to the previous LattePanda 2 Delta, the CPU performance has been doubled and the GPU speed has been tripled. It's well-suited for activities including image processing, edge computing, automation control, and more.

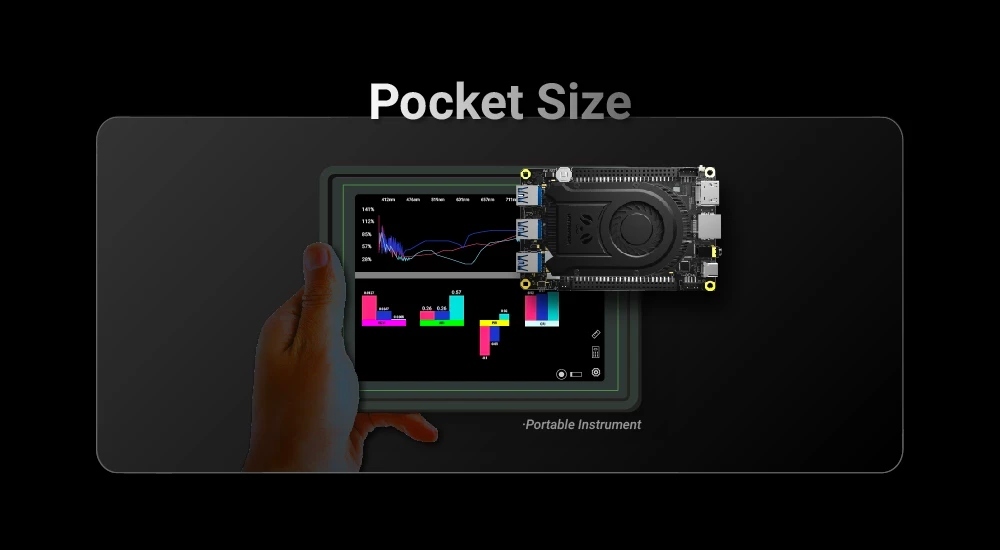

Pocket Size:

The LattePanda 3 Delta Windows 10 single board computer's ultra-slim and pocket-sized design makes it ideal for integration into space-constrained products, enabling powerful computation without taking up much space. The dimensions, interfaces, and layout of the LattePanda 3 Delta are similar to those of the preceding LattePanda 2 Delta, providing a smooth migration or upgrade of your applications.

Faster Memory, Larger Storage:

LattePanda 3 Delta comes with 8GB of 2933MHz LPDDR4 high-speed memory, twice as much as LattePanda 2 Delta, ensuring smooth performance during heavy data processing and multitasking. Furthermore, the eMMC storage capacity has been increased to 64GB, doubling that of the previous generation, enabling for more professional applications and data without the need for additional storage.

Windows And Linux Compatible:

LattePanda 3 Delta comes pre-installed with Windows 10 and is fully compatible with both Windows 11 and other Linux operating systems.

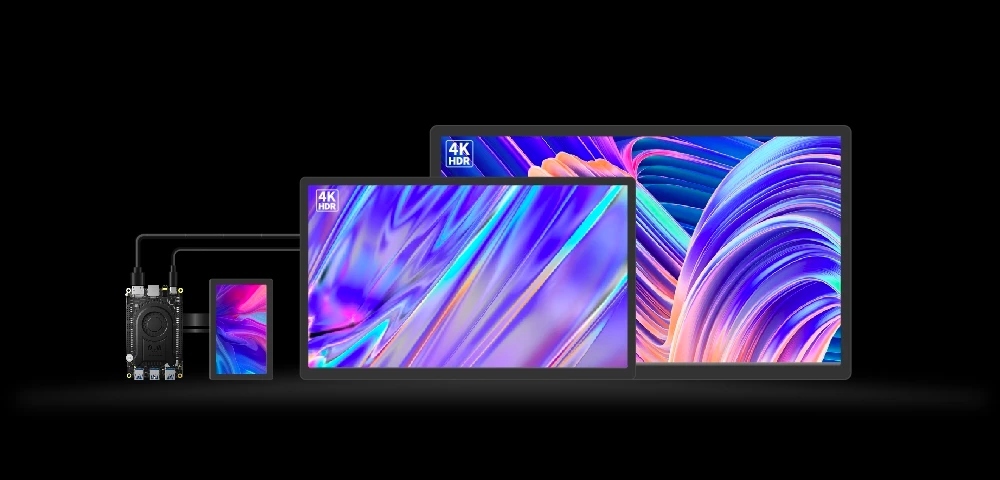

3-Way Video Output:

The LattePanda 3 Delta x86 single board computer has three video outputs: HDMI, Type C, and eDP, which all support dual 4K HDR. This not only provides the display of high-definition and realistic visuals, but it can also support many displays, either exhibiting the same content together or presenting distinct content.

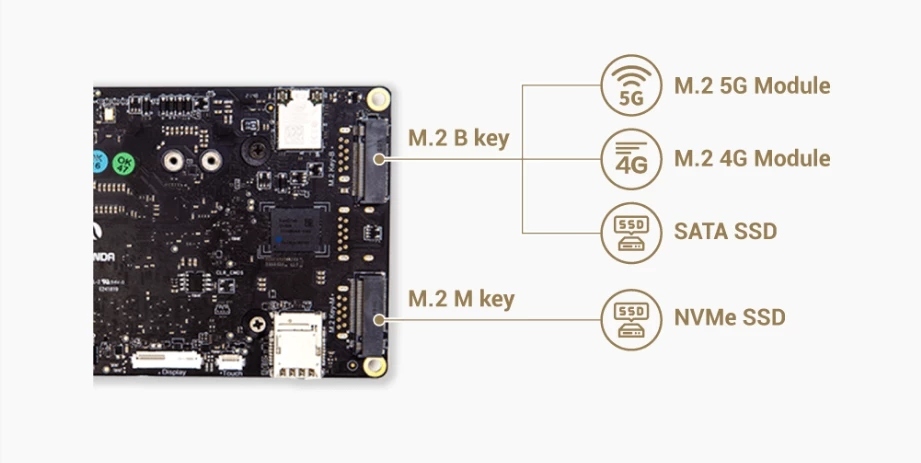

Rich Expandable Interfaces:

In addition, LattePanda 3 Delta x86 SBC features M.2 B Key and M.2 M Key slots, allowing for the expansion of M.2 NVMe or SATA SSDs as well as 4G/5G communication modules.
