Industrial LoRaWAN Wireless Smart Relay Controller, Modbus RTU

Macnman

No reviews yet Write a Review
SKU:
529-MacSet-L-Type1
MPN:
MacSet-L-Type1
LoRaWAN Smart Relay Controller by Macnman Technologies – RS485 and Analog compatible IoT control device with BLE configuration via Macnman Maya App
Macnman LoRaWAN Smart Relay Controller enables long-range wireless control and monitoring via RS485 and Analog sensors. BLE-based configuration through Maya App ensures easy setup for industrial, agricultural, and environmental automation. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹10,566.40 inc. GST
₹8,954.58 ex. GST
20 people looking at this.

Technical Specifications

Brand:
Macnman
Interfaces:
1xRS485,2x4-20 mA,2x0-10 V,2xDigital,1xDI
Chips:
nRF5340,STM32WL5
Cloud Platforms:
Private Clouds , On Prim ,TTN ,Loriot , Orbiwise
Dimensions:
152 mmx43 mmx62 mm
Mounting Methods:
Wall Mounting
Weight:
460 gms (With Batteries)
IP Rating:
Waterproof IP65 Enclosures
Operating Temperature:
- 35C ~ +60C
Storage Temperature:
- 40C ~+70C
Coverage Range:
Up to 2 km
Operating Voltage:
12-24V DC, 80-230V AC
Firmware Update:
OTA via LoRaWAN or BLE
Operation Mode:
Online and offline scheduling

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

Industrial LoRaWAN Wireless Smart Relay Controller Modbus RTU: Rugged IoT Control for Remote Automation

The MacSet LoRaWAN Controller is a high-performance industrial wireless controller designed for reliable operation in both connected and disconnected environments. It enables remote automation and control of motors pumps valves fans and other field equipment using LoRaWAN networks. With offline mode the controller can execute pre-programmed schedules and automated tasks even without network connectivity ensuring uninterrupted operations across factories warehouses smart buildings and outdoor industrial sites.

Built for industrial IoT applications the MacSet LoRaWAN Controller provides up to 2 km long-range coverage with a rugged RF design and high-gain antenna for stable communication. It supports RS485 analog control and relay outputs allowing seamless integration with existing PLCs sensors and actuators. The controller also features over-the-air firmware updates two-way communication and user-friendly configuration via the Macnman Maya app making it suitable for smart agriculture water management industrial automation and smart city deployments.

Features

  • Automated Scheduling and Logic Control Enables pre-programmed operation of connected devices based on schedules sensor inputs or preset conditions

  • Seamless Remote Control Provides precise remote operation of motors pumps fans and valves for efficient automation

  • Multi-Device Compatibility Supports RS485 and analog outputs 0-10V 4-20mA for integration with existing equipment

  • User-Friendly Configuration Configure and manage device settings via the Macnman Maya app for easy scheduling and automation

  • Two-Way Communication Real-time bidirectional control to monitor device status and send commands remotely

  • Durable and Reliable Resistant to dust moisture and temperature fluctuations suitable for harsh industrial environments

  • Offline Operation Stores operation logs and settings internally to maintain functionality during network disruptions

  • Over-the-Air Updates Wireless firmware updates via LoRaWAN or BLE without manual intervention

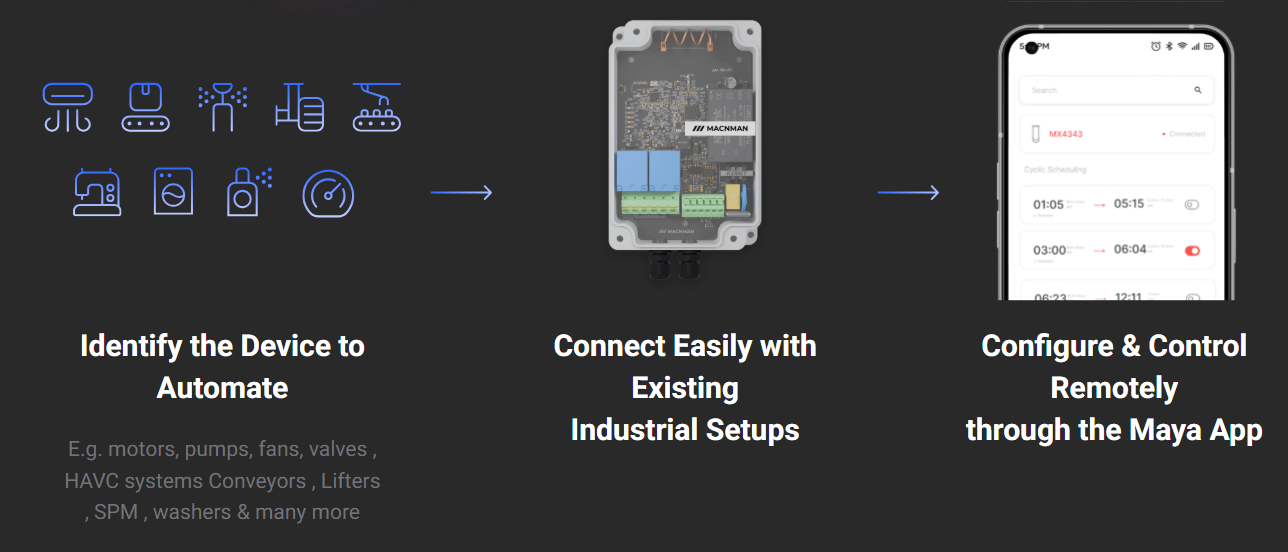

How Does a MacSet LoRaWAN Controller Work

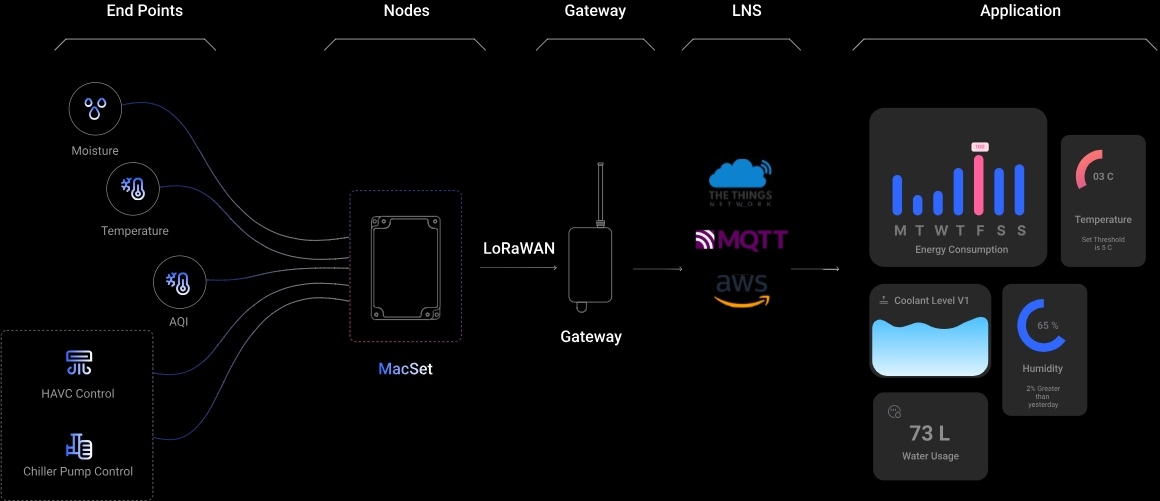

The LoRaWAN Architecture

Package Content:

  • MacSync-XX-XX
  • Mounting Clips
  • Cable Extender
  • Screws
  • Power Adapter
  • User Manuals
  • Warranty Cards
