IMX577 12MP USB Camera (B) 3840x3024 Plug and Play Supports C/CS Lenses

Waveshare

No reviews yet Write a Review
SKU:
061-33161
MPN:
33161
IMX577 12MP USB camera with C/CS lens mount and plug-and-play USB interface
IMX577 12MP USB camera with Sony CMOS sensor, 3840×3024 resolution, plug-and-play UVC support, and C/CS lens compatibility. Ideal for machine vision, industrial inspection, and high-resolution imaging applications. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹6,512.51 inc. GST
₹5,519.08 ex. GST
8 people looking at this.

Technical Specifications

Brand:
Waveshare
Pixels:
12MP
Sensor:
IMX577
Interface:
USB2.0 Type-C port / SH1.0 4PIN header
Sensor Size:
1/2.3 inch
Lens Support:
C-mount / CS-mount (C-CS adapter included)
Format Support:
MJPG, YUY2
Static Image Resolution:
3840x3024
Operating Voltage:
5V+-5%
Operating Temperature:
0 C ~ 50 C
Module Size:
34.00x34.00 (mm)

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Wiki: www.waveshare.com/wiki/IMX577_12MP_USB_Camera_(B)

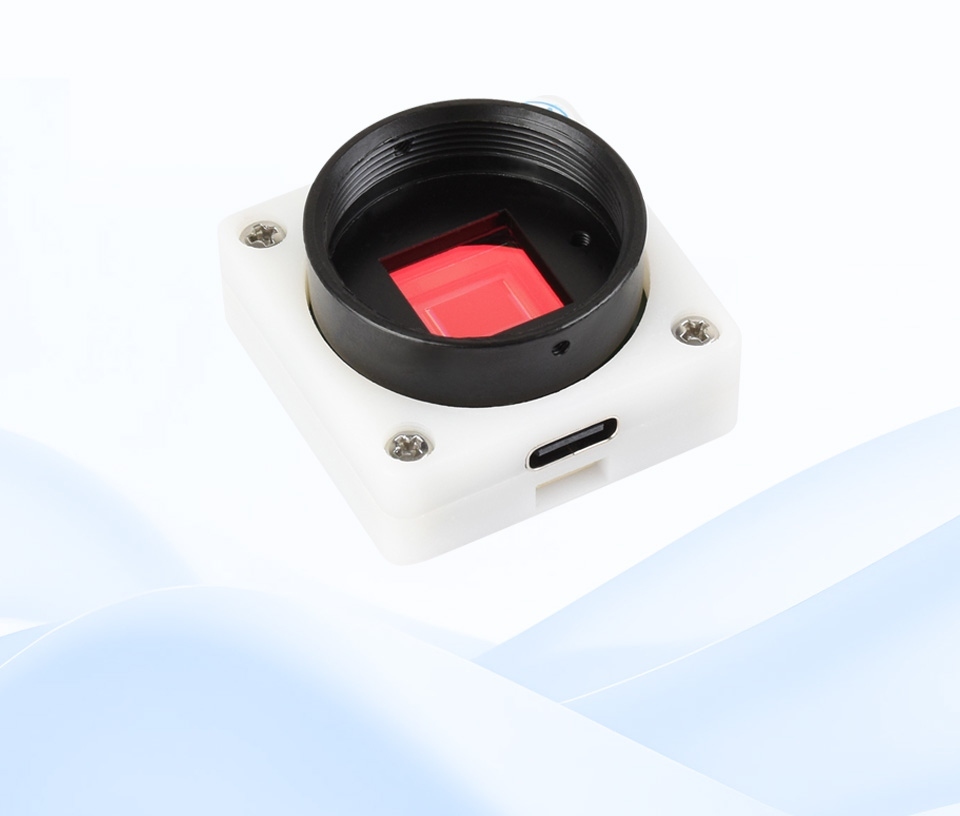

IMX577 12MP USB Camera 3840×3024 Plug and Play Supports C/CS Lenses

The IMX577 12MP USB Camera is a high-resolution imaging solution designed for professional machine vision, industrial inspection, and advanced embedded vision applications. Built around the Sony IMX577 CMOS image sensor, it delivers exceptional image clarity with a maximum resolution of 3840x3024. Featuring a standard USB interface with UVC support, the camera offers true plug-and-play operation without the need for additional drivers. Its support for interchangeable C and CS mount lenses provides flexibility to adapt to various fields of view and application requirements. With stable performance, high sensitivity, and broad platform compatibility, this USB camera is ideal for use with PCs, industrial systems, and embedded AI platforms.

Key Features

  • Sony IMX577 CMOS Sensor – High-performance 12MP sensor for sharp, detailed imaging
  • Ultra-High Resolution Output – Supports up to 3840x3024 for precision vision tasks
  • USB Plug-and-Play Operation – UVC compliant for driver-free connectivity
  • C/CS Lens Mount Support – Allows use of interchangeable lenses for flexible optical configurations
  • High Image Quality and Sensitivity – Suitable for demanding machine vision and inspection environments
  • Wide Platform Compatibility – Works with PCs and embedded vision platforms
  • Robust and Compact Design – Designed for continuous operation in industrial and professional setups.
IMX577 USB Camera

12MP high-resolution | USB2.0 Type-C port | C/CS Lenses Support

12MP Resolution

Supports 3840x3024 20 FPS Output

Plug And Play, Easy Connection

Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using


For reference only, please refer to the package content for the detailed part list

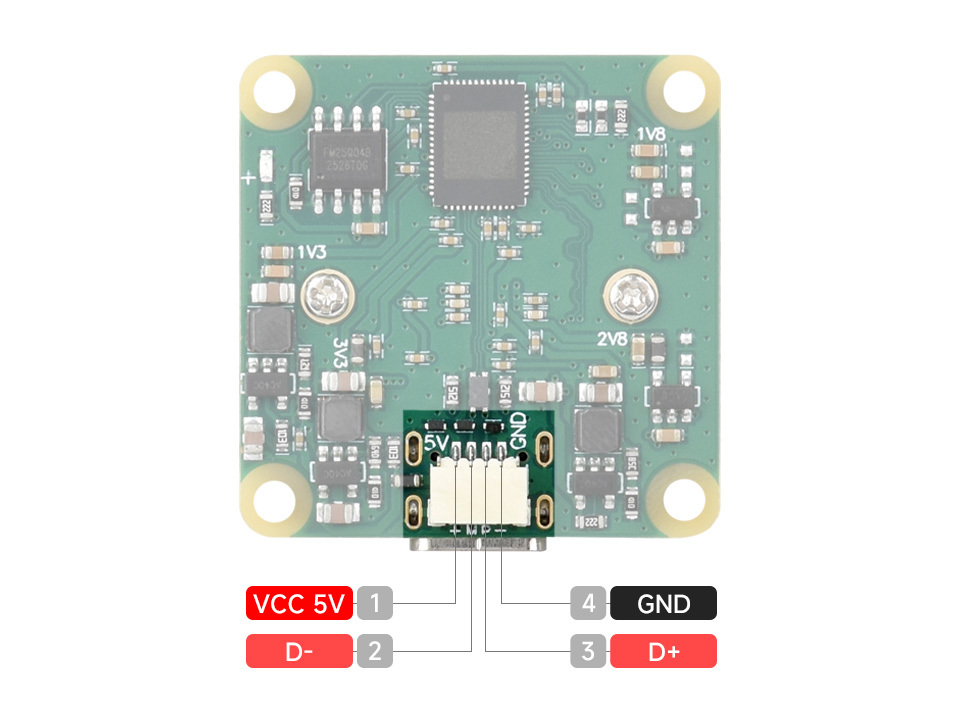

Pinout Definition

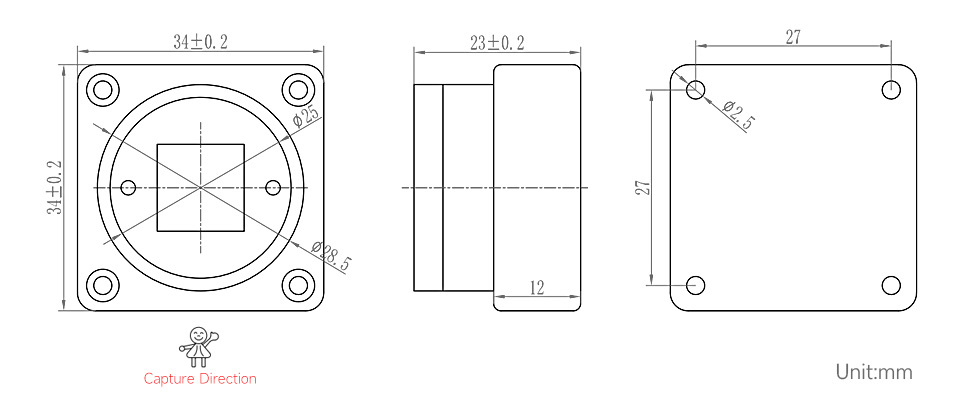

Dimensions

Package Includes:

  1. IMX577 12MP USB Camera (B) x1
  2. SH1.0 4PIN dual plug cable x1
  3. C-CS adapter + dust cap x1
