IMX378-190 12.3MP Wide-Angle Camera Module for Raspberry Pi

DFRobot

No reviews yet Write a Review
SKU:
147-SEN0633
MPN:
SEN0633
IMX378-190 12.3MP wide-angle camera module with 190-degree FOV for Raspberry Pi and AI vision applications
IMX378-190 12.3MP wide-angle camera with Sony sensor and 190° FOV for Raspberry Pi. High-resolution imaging with low-light support, perfect for AI vision, robotics, SLAM, panoramic capture, and object detection. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹3,898.39 inc. GST
₹3,303.72 ex. GST
19 people looking at this.

Technical Specifications

Brand:
DFRobot
Photosensitive chip:
Sony IMX378
Pixels:
12.3 million
Chip pixel size:
1.55umx1.55um
Resolution:
4056x3040
Camera type:
color
Shutter mode:
rolling shutter
Focus mode:
fixed focus
CMOS size:
1/2.3 inches
Infrared filter:
integrated
Aperture:
2.4
Focal length:
6.5mm
Field of view:
190°
Distortion:
＜58%
Interface:
MIPI-CSI-2Lane
Lens size:
M12

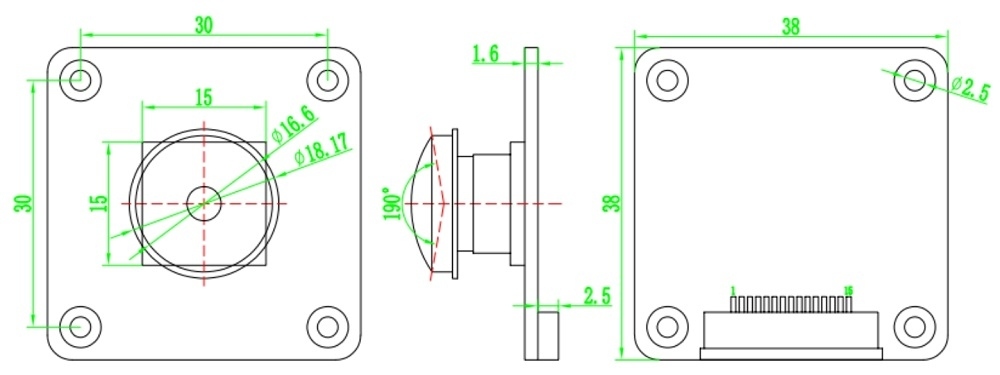

PCB size:
38*38mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

12.3MP IMX378 Wide-Angle Camera Module for High-Resolution Raspberry Pi Imaging 4B / 5 (4056x3040 Resolution, FOV190°):

This camera module is intended to provide superb high-definition images and is ideal for capturing 360-degree panoramic vistas. It features the Sony IMX378 photosensitive chip, which has 12.3 million pixels and a resolution of 4056x3040, resulting in clear and detailed images. The 190° wide-angle fisheye lens captures enormous areas with clarity and low distortion, making it ideal for surveillance, robotics, and virtual reality applications. The module is entirely compatible with Raspberry Pi series single-board computers (Raspberry Pi 4B / Raspberry Pi 5), with easy connections made possible by two FPC cables, avoiding the need for additional purchases or setup.

High-Resolution Imaging

The Raspberry Pi camera module's 12.3 million pixels and 4056x3040 resolution, along with the Sony IMX378 photosensitive chip, enable ultra-clear, high-definition image capturing. Whether for security monitoring or immersive virtual environments, high resolution ensures that minute details are apparent even in large situations.

190° Wide-Angle Fisheye Lens

The camera's 190° wide-angle fisheye lens captures expansive images, making it perfect for applications requiring a large field of vision, such as 360-degree panorama cameras. This capability lowers the need for several camera installations in wide-area coverage applications, making setup easier and lowering hardware costs.

Seamless Integration with Raspberry Pi

The 12.3MP camera module is intended for easy integration with Raspberry Pi SBCs. It comes with two FPC cables, allowing for a simple connection without the need for extra cables. The module's plug-and-play interoperability allows for easy prototyping and development in a variety of Raspberry Pi-based projects.

Applications:

  • 360-degree surveillance
  • Virtual reality
  • Robotics

Resources:

Package Content:

  • IMX378-190 12.3MP Raspberry Pi Camera x1
  • 15Pin to 15Pin FPC cable x1
  • 15Pin to 22Pin FPC cable x1
