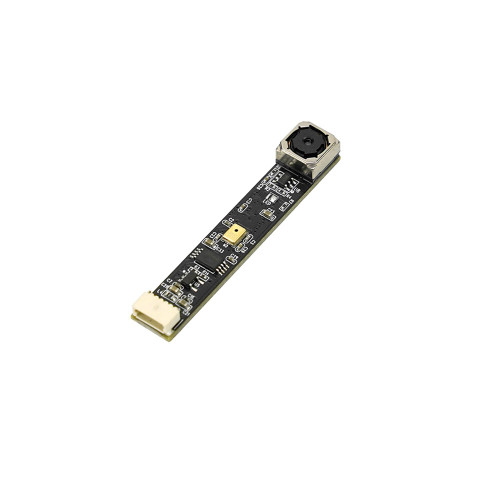

IMX179 8MP USB Camera Module With Microphone for Raspberry Pi, NVIDIA, LattePanda

Resources:

Github

IMX179 8MP USB Camera Module With Microphone for Raspberry Pi/ NVIDIA / LattePanda

The IMX179 8MP USB Camera Module is a high-performance imaging solution designed for embedded vision, machine vision, and multimedia applications. Built around the Sony IMX179 image sensor, it delivers sharp 8-megapixel image quality with reliable autofocus and excellent colour reproduction. Using a standard USB 2.0 interface and USB Video Class (UVC) protocol, the camera offers true plug-and-play operation without the need for additional drivers. It supports a maximum resolution of 3280 × 2464 and delivers smooth 30 FPS video at 1080p, making it suitable for real-time video capture. With an integrated microphone and broad compatibility with platforms such as Raspberry Pi, NVIDIA Jetson, LattePanda, RDK X5, and PCs, this USB camera module is ideal for machine vision, security surveillance, and high-definition video conferencing applications.

Key Features

• Sony IMX179 Image Sensor – Delivers high-quality 8MP images with excellent clarity and colour accuracy
• 8-Megapixel Resolution – Supports up to 3280x2464 for detailed image capture
• Smooth Full HD Video Output – Provides 30 FPS at 1080p for fluid video performance
• USB 2.0 UVC Interface – Enables plug-and-play operation without additional drivers
• Wide Platform Compatibility – Works with Raspberry Pi, NVIDIA Jetson, LattePanda, RDK X5, and PCs
• Integrated Microphone – Supports audio recording for video conferencing and surveillance use
• Autofocus Support – Ensures sharp focus across varying distances
• Compact Camera Module Design – Suitable for embedded and space-constrained applications

High-Fidelity 8MP Imaging

This high-resolution imaging device, which is powered by a 1/3.2-inch Sony IMX179 sensor, takes photos and videos with exceptional detail and color fidelity. The 8 megapixel pixel count enables the capture of small details, which is essential for applications like document scanning, quality control inspection, and identity identification. This embedded vision camera, which supports numerous output formats such as MJPEG and YUY2, provides the flexibility required to balance image quality with bandwidth needs for a variety of tasks.

Dynamic and Responsive Autofocus

The integrated focusing system automatically adjusts the lens to retain a sharp, clear image of subjects at distances ranging from 10 cm to infinity. This eliminates the need for manual intervention and ensures consistent image quality in dynamic environments where the distance between the camera and the subject varies. This functionality is very useful for interactive kiosks, instructional document cameras, and machine vision systems that need to monitor things in motion.

Seamless Plug-and-Play Integration

This plug-and-play camera is completely compliant with the UVC standard and has been designed for quick deployment and easy use. This allows for genuine driver-free functionality across a wide range of operating systems, including Windows, macOS, Android, and Linux-based platforms such as the Raspberry Pi, NVIDIA Jetson, LattePanda, RDK X5, and other single-board computers. The common USB 2.0 Type-A connection simplifies physical integration, significantly lowering development time and allowing developers to concentrate on their core application rather than extensive hardware configuration.

Compatible Systems
