Hybrid Slip Ring OD56mm 2Ch Air G1/8 24Circuits 2A

Resources:

Datasheet

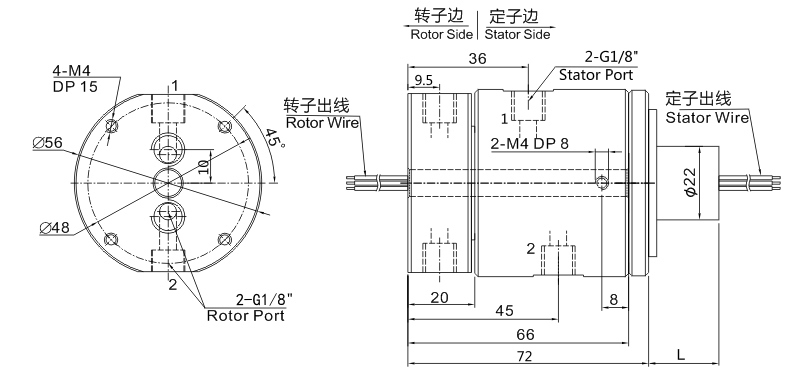

Hybrid Slip Ring OD56mm – 2 Channels Air G1/8 + 24 Circuits 2A

The Hybrid Slip Ring OD56mm (2Ch Air G1/8+24 Circuits 2A) is a robust and versatile rotary transmission solution designed for systems requiring both pneumatic and electrical power/signal transfer through a continuously rotating interface. Featuring 2 air channels with G1/8 ports and 24 independent electrical circuits (2A each), this hybrid slip ring enables seamless 360 rotation while maintaining stable airflow and reliable electrical connectivity. Its 56mm compact cylindrical structure is engineered for demanding industrial applications, ensuring low friction, high durability and minimal leakage during operation.It is ideal for automation machinery, packaging systems, robotics, medical devices, pneumatic tools, rotary tables and equipment that requires integrated air + electrical transmission.

Key Features:

• Hybrid Transmission System: Combines 2 pneumatic air channels (G1/8) with 24 electrical circuits (2A each) for multifunctional rotary applications.
• Stable Airflow Transfer: Ensures smooth, low-leakage air passage during continuous 360 rotation.
• High-Density Electrical Channels: 24 circuits provide efficient power and signal routing for motors, sensors, actuators and control systems.
• 56mm Compact Design: Fits medium-sized rotary equipment while maintaining high durability and efficiency.
• Robust Industrial-Grade Build: Suitable for automation machinery, pneumatic rotary platforms, production lines, robotics and medical instruments.
• Reliable Continuous Operation: Engineered for stable performance in high-speed or long-duration rotational setups.
