Technical Specifications
Brand:
Feetech
Storage Temperature Range:
-30 C～80 C
Operating Temperature Range:
-20 C～60 C
Temperature Range:
25 C +-5 C
Humidity Range:
65%+-10%

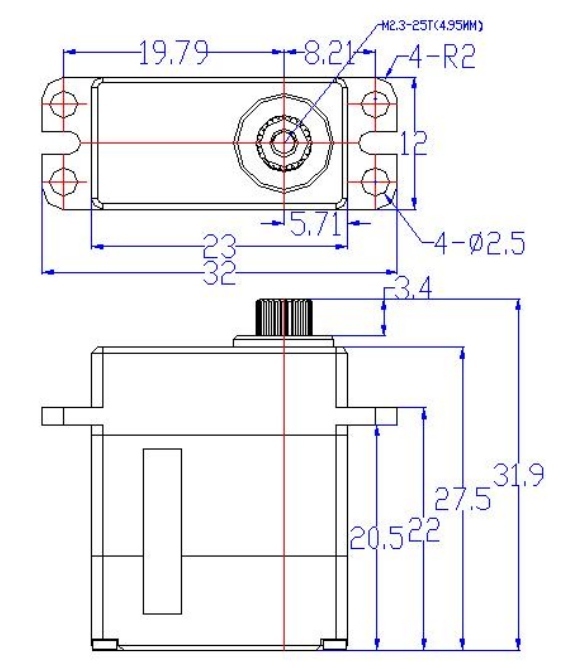

Size:
23mmx12mmx27.5mm
Weight:
20.6+-1g
Gear Type:
Copper+Steel
Limit Angle:
NO Limit
Bearing:
Ball Bearings
Horn Gear Spline:
25T/OD4.95mm
Case:
Aluminium
Connector Wire:
15cm
Motor:
Coreless Motor
Rated Input Voltage:
4.5-7.4V
No Load Speed:
0.09sec/60(111RPM)@6V
Runnig Current(At No Load):
150mA@6V
Peak Stall Torque:
6kg.cm@6V
Stall Current:
1.3A@6V
Rated Load:
1.5kg. cm@6V
Rated Current:
350mA@6V
KT:
4.5kg. cm/A
Terminal Resistance:
2.8Ohm
Command Signal:
Digital Packet
Protocol Type:
Half Duplex Asynchronous Serial Communication
ID Range:
0-253
Communication Speed:
38400bps ~ 1 Mbps
Control Algorithm:
PID
Neutral Position:
180（2048）
Running Degree:
360 (when 0~4096)
Rotating Direction:
Clockwise(0→4096）
