HD-SDI Slip Ring OD22mm 1ch 3G 12Circuits 2A Wire Length 250mm

SENRING

No reviews yet Write a Review
SKU:
530-O022-12
MPN:
O022-12
HD-SDI slip ring, 3G SDI rotary joint, OD22mm slip ring, 12 circuits 2A slip ring, PTZ camera SDI ring
HD-SDI Slip Ring OD22mm features 1-channel 3G-SDI video transmission plus 12 circuits (2A each) providing stable 360° rotation for PTZ cameras, robotics and HD video systems. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹12,402.39 inc. GST
₹10,510.50 ex. GST
23 people looking at this.

Technical Specifications

Brand:
SENRING
Frequency Rate:
DC-3GHz

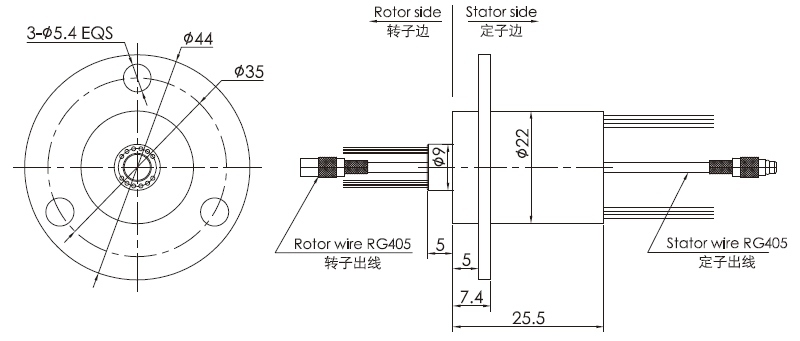

Outer Diameter:
22mm
Insertion Loss Fluctuation:
+/-0.05dB
Impedance:
50Ohm
Working Life:
10millions for ref(depends on working conditions)
Rotating Speed:
250RPM continuously
Working Temp:
-30 C∼80 C
Work Humidity:
0∼85% RH
Housing Material:
Aluminum Alloy
Torque:
0.1N.m+(0.03N.m/6 circuits）
Insertion Loss:
0.65dB/1GHz Max
Return Loss:
-18 dB/1GHz Max
Max Speed:
50RPM
Voltage Range:
0∼440VAC/VDC
Insulation Resistance:
≥1000MΩ/500VDC
Lead Wire Spec.:
AWG26# Silver-plated teflon
Lead Wire Length:
Standard 250mm
Dielectric Strength:
500VAC@50Hz，60s

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Datasheet

HD-SDI Slip Ring OD22mm – 1 Channel 3G-SDI + 12 Circuits 2A, Wire Length 250mm

The HD-SDI Slip Ring OD22mm (1ch 3G + 12 Circuits 2A) is a high-performance rotary transmission solution designed for professional video, broadcast equipment and precision rotating systems. With support for 3G-SDI high-definition video, this slip ring enables lossless, real-time transmission of HD signals through a rotating interface while maintaining exceptional signal integrity and ultra-low jitter. The additional 12 power/signal circuits (2A each) provide flexible connectivity for powering cameras, sensors, encoders and control systems within rotating platforms. Built with a compact 22mm outer diameter, the slip ring offers smooth 360° continuous rotation, durable gold-to-gold contacts and excellent noise immunity, ensuring long-term reliability even in demanding environments. The extended 250mm wire length simplifies installation and integration into video equipment, PTZ systems, robotics, inspection machinery and industrial automation.

Key Features:

  • 1 Channel 3G-SDI Video Transmission: Supports real-time high-definition SDI signals with low loss and stable performance.
  • 12 Auxiliary Circuits (2A Each): Ideal for powering devices and transmitting control or sensor signals simultaneously.
  • Compact 22mm Capsule Design: Efficient size suitable for PTZ cameras, video turrets, inspection equipment and robotics.
  • Gold Contact Technology: Provides low electrical resistance, low noise and long operational lifespan.
  • 360 Continuous Rotation: Ensures uninterrupted power and video signal flow in rotating systems.
  • High Signal Stability: Engineered to minimise jitter, attenuation and interference in high-speed data/video transmission.
  • 250mm Wire Leads: Pre-attached flexible wires for easy installation and integration.
