Grove - Optocoupler Relay M281 Bi-directional SPSD - Seeed Studio

The Grove – Optocoupler Relay (M281) is a high-performance, solid-state relay (SSR) designed for safe, efficient and reliable switching in a wide range of applications. This bi-directional SPSD (single-pole, single-throw), normally-open relay uses MOSFET-based switching technology, enabling it to handle both AC and DC loads with ease. With an exceptionally low on-resistance of just 0.5ohm(max), the module ensures minimal power loss and high efficiency in high-power scenarios. It requires only a low input control current—typically 3 mA—making it ideal for microcontroller-based systems such as Arduino, Raspberry Pi and Seeed Studio’s Grove ecosystem. The relay also provides strong input-to-output isolation up to 1.5 kV, enhancing safety and preventing interference between the control and load sides. Its Grove unified interface makes it fully plug-and-play, providing rapid prototyping convenience for automation, smart home systems, motor control and various switching applications.

• Low On-Resistance for High Power: Maximum on-resistance of 0.5ohm ensures efficient operation in high-power applications.
• AC & DC Load Compatibility: MOSFET-based design supports bi-directional switching of both AC and DC loads.
• Low Control Current: Operates with a typical input control current of just 3 mA, suitable for low-power microcontroller systems.
• High Isolation Safety: Provides robust 1.5 kV minimum input-to-output electrical isolation for safe operation.
• Grove Plug-and-Play: Unified Grove interface enables easy integration without soldering or complex wiring.

• Automated Test Equipment
• Meter reading systems
• Medical equipment
• Battery monitoring
• Multiplexers

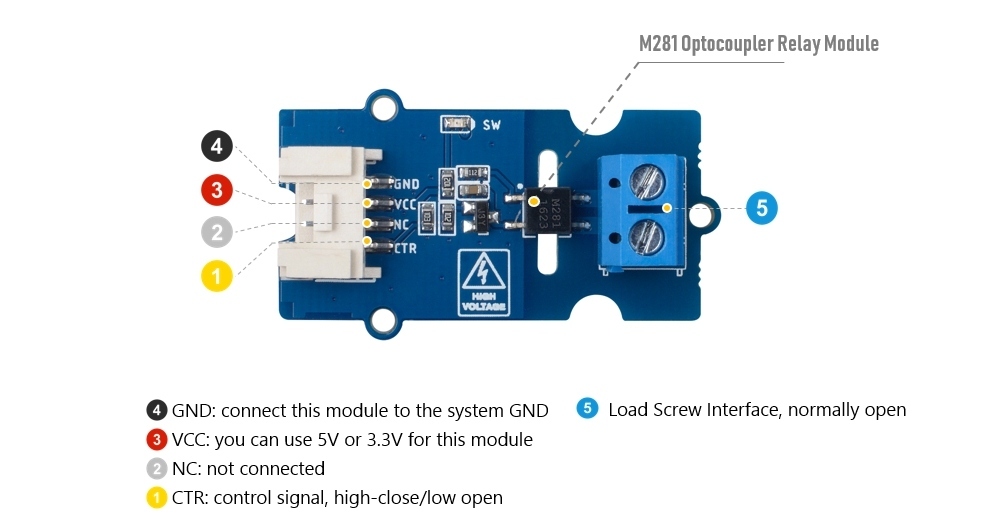

Hardware Overview

Package Content:

• Grove - Optocoupler Relay (M281)x1
