Grove - NFC Module PN532: Contactless Communication, I2C/UART - Seeed Studio

The Grove – NFC (PN532) module is a versatile contactless communication solution designed for secure, high-frequency wireless data exchange. Built around the PN532 chipset, a widely adopted NFC controller, this module supports communication at 13.56 MHz and works seamlessly with ISO14443 Type A and Type B protocols. It offers flexible interface options—either I2C or UART (default)—making it easy to integrate with Arduino, Raspberry Pi and other development platforms. With a maximum tag detection distance of up to 28 mm depending on antenna size, the module is suitable for NFC tag reading, card emulation, access control, wireless authentication, smart devices and IoT applications. The Grove interface ensures true plug-and-play compatibility, enabling rapid development with minimal wiring and configuration effort.

• Long-Distance Detection: Supports NFC tag detection at distances up to 28 mm, depending on antenna size.
• 13.56 MHz RF Communication: Operates at the NFC standard frequency for reliable contactless data exchange.
• ISO14443 Protocol Support: Compatible with both ISO14443 Type A and Type B standards.
• Flexible Interface Options: Supports both I2C and UART host interfaces (UART by default).
• Grove Plug-and-Play: Provides easy and quick integration with Grove-compatible systems without soldering.

• Access control system
• Electric business card
• IC card
• Smart Home
• Electric toys
• IoT systems
• NFC pay

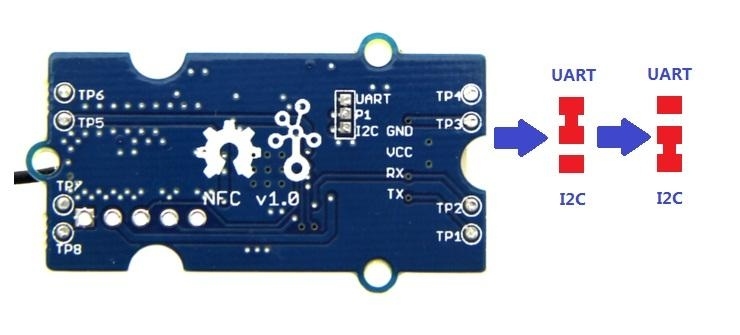

Hardware Overview

Package Content:

• Grove - NFCx1
• NFC Antennax1
• IPX connect wire - 120mmx1
• 24AWG Grove Cable  - 4P-4P-2.0-200mmx1
