Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module: Complete Development and Testing Platform
The Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module is a powerful development platform designed to unlock the full potential of the LattePanda Mu. By exposing all pins of the compute module, it provides hardware engineers, developers, and system integrators with a comprehensive solution for evaluation, testing, and prototyping. With its rich set of interfaces, extensive expansion slots, and wide voltage input support, this board ensures seamless integration with peripherals and accelerates hardware-software compatibility testing. Built to the ITX standard size, it offers flexibility for various project setups and industrial applications, significantly reducing development time.
Key Features:
- Full Pin Exposure: Provides complete access to all pins of the LattePanda Mu compute module for detailed evaluation.
- Rich Interface Options: Includes 2× HDMI 2.0 ports, 2× 2.5GbE ports, 4× USB 3.0 ports, and more for versatile connectivity.
- Extensive Expansion Slots: Equipped with 1× PCIe x1 slot, 1× PCIe x4 slot, and 2× M.2 slots for adding peripherals such as PCIe cards, storage, or 4G/5G WWAN modules.
- Wide Voltage Input: Supports 12–20V input, offering flexibility for different power environments.
- ITX Standard Size: Compact, standardized form factor for easy integration into cases and development setups.
- Accelerated Development: Simplifies prototyping, compatibility testing, and evaluation, reducing project timelines.
Complete Pin Exposure

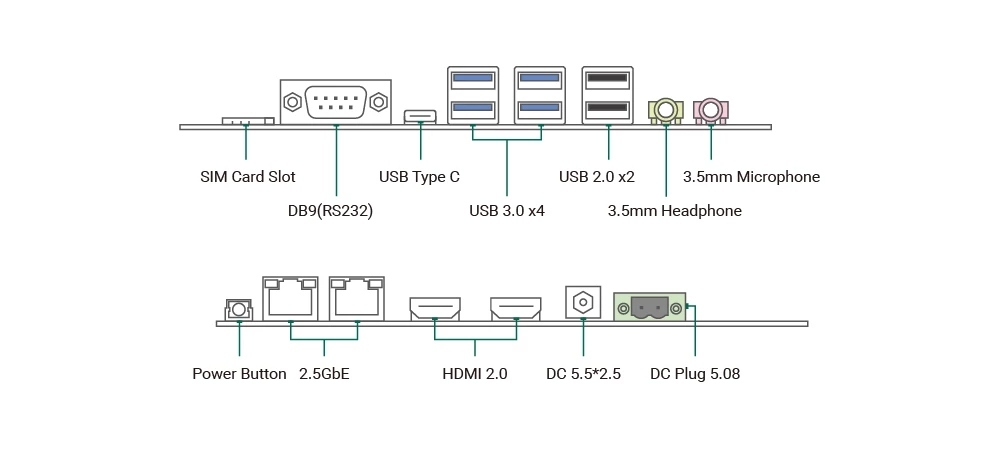

This board entirely exposes all of the pins of the LattePanda Mu computing module and has a plethora of interfaces and expansion ports. These include 4 USB3.0 ports, 2 Intel I225 2.5G network ports, 2 HDMI 2.0 ports, 2 M.2 slots, 1 standard PCIe x1 slot, 1 standard PCIe x4 slot, and 1 Type C port, among others. It also includes a number of extension pin headers that enable the connecting and testing of various devices and modules.
Wide Voltage Input
This carrier board has a wide voltage input range of 12-20V, making it suitable for varied power supply settings.
Standard PCIe slots
This carrier board is equipped with conventional PCIe 3.0 x1 and PCIe 3.0 x4 slots, allowing for the convenient expansion of various peripherals such as graphics cards, sound cards, network cards, and so on.
Dual M.2 slots
In addition to PCIe slots, it has M.2 E key and M.2 B key slots, which allow for easy extension of WiFi cards, 4G or 5G cards, and so on.
Dual 2.5G ports
This carrier board has two Intel i225-V 2.5G network interfaces that enable high-speed data transmission.
ITX Standard Size
This device, which uses the ITX motherboard standard size, may be used directly with ITX motherboard test benches, allowing it to fit effortlessly into your various projects and systems.
Note:
- 1. The LattePanda Mu computing module is not included in this offering.
- 2. To utilize this product, make sure you already have the LattePanda Mu computing module.
- 3. Before connecting or disconnecting LattePanda Mu, any cables, or internal interfaces, the power supply must be disconnected.

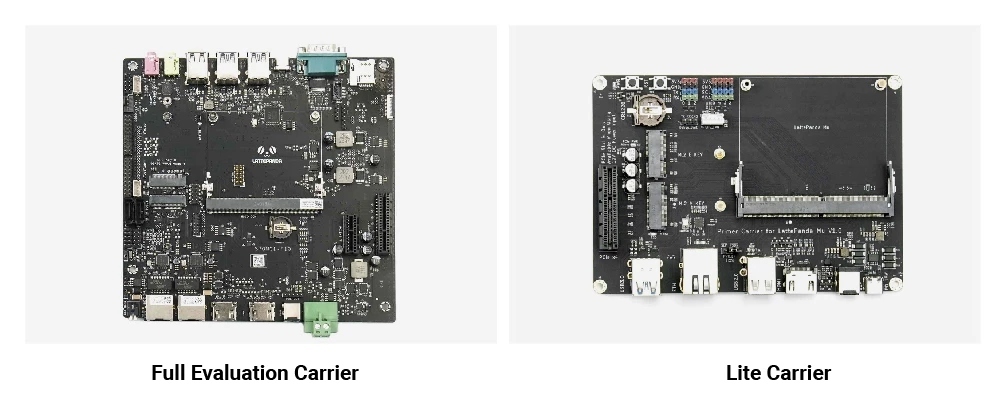

DFRobot provides a lite carrier board for the LattePanda Mu, which serves as a full development platform with several interfaces for quick design verification. There is also a full-function evaluation carrier board available, which exposes all of the LattePanda Mu's pins for intensive hardware and software testing.
Carrier Boards Of LattePanda Mu

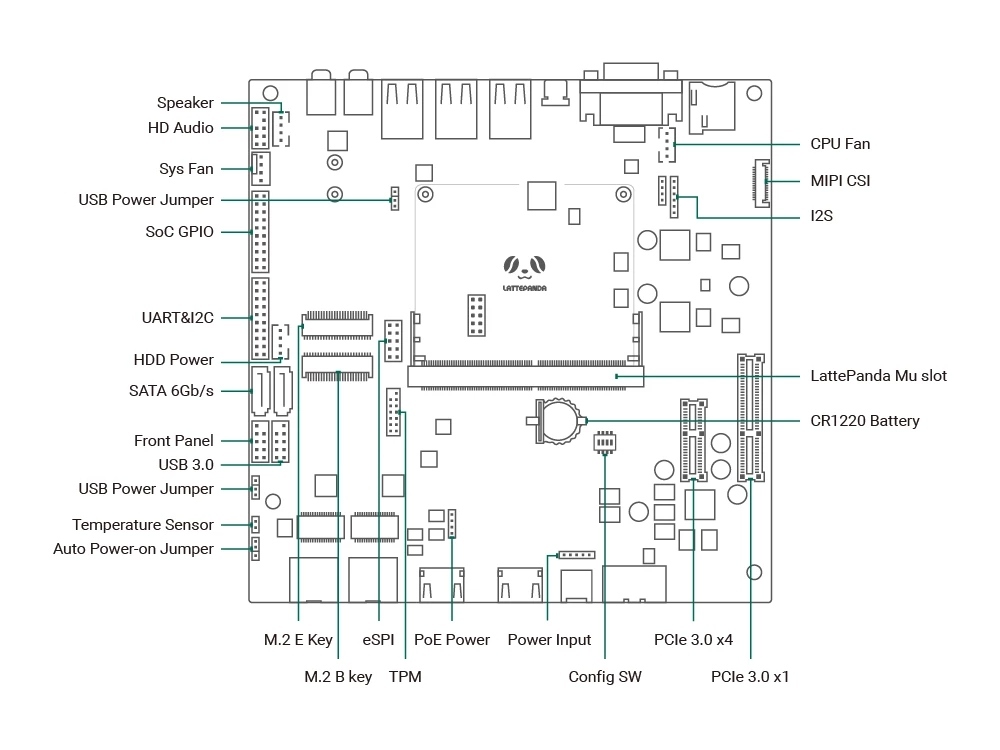

Specifications:
Pins/Jumpers/Buttons
- 1x CPU fan interface (CPU_FAN)
- 1x System fan interface (SYS_FAN)
- 1x MIPI CSI-2 interface (MIPI_CSI)
- 1x I2S header (I2S1)
- 1x TPM header (TPM)
- 1x eSPI header (ESPI_CON)
- 1x Auto power-on jumper (AUTO_PWR)
- 1x Temperature sensor header (TMP)
- 1x USB 2.0 header (F_USB1)
- 1x Front panel header (F_PANEL1)
- 1x UART and I2C header (UART_I2C_1)
- 1x SoC GPIO header (GPIO_1)
- 1x Speaker interface (SPEAKER)
- 1x HD Audio header (F_AUDIO)
- 1x Function Configuration DIP switches (ID_SW)
- 1x USB header power control jumper (F_USB_PWR)
- 1x Front USB power control jumper (R_USB_PWR)
- 1x PoE power header (POE_IN)
- 1x Hard disk power interface (HDD_PWR1)
- 1x Power input header (POE_OUT)
Package Contents:
- Full-Function Evaluation Carrier Board x1
- SATA Data Cable x2
- SATA Power Cable x1
- Product Manual x1
