Technical Specifications
Brand:
Feetech
Storage Temperature Range:
-30 C～80 C
Operating Temperature Range:
-20 C～60 C

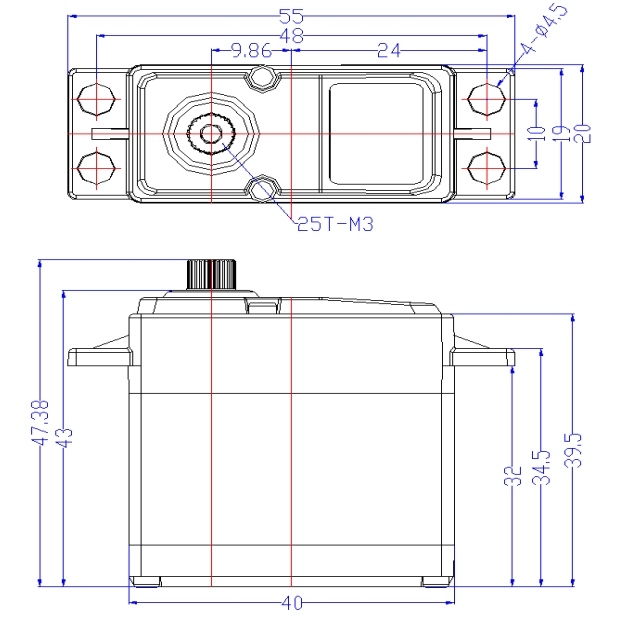

Size:
55mmx20mmx43mm
Weight:
67+-1g
Gear Type:
Steel tooth
Limit Angle:
NO Limit
Bearing:
Ball Bearings
Horn Gear Spline:
25T/5.9mm
Horn Type:
Plastic,POM
Case:
PA+Aluminum
Connector Wire:
30CM
Motor:
Core Motor
Operating Voltage Range:
6V-7.4V
Idle Current (At Stopped):
6MA@7.4V
No load speed:
0.192sec/60@7.4V
Running Current(At No Load):
180mA@7.4V
Peak Stall Torque:
35.5kg.cm@7.4V
Rated Torque:
11.8kg.cm@7.4V
Stall Current:
3.9A@7.4V
Command Signal:
Pulse Width Modification
Amplifier Type:
Digital Comparator
Pulse Width Range:
500~2500usec
Stop Position:
1500 usec
Running Degree:
360（at 500-2500 usec)
Dead Band Width:
≤4usec
Rotating Direction:
Counterclockwise (+-1500→2000u sec)
