Technical Specifications
Brand:
Feetech
Storage Temperature Range:
30 C～80 C
Operating Temperature Range:
-20 C～60 C

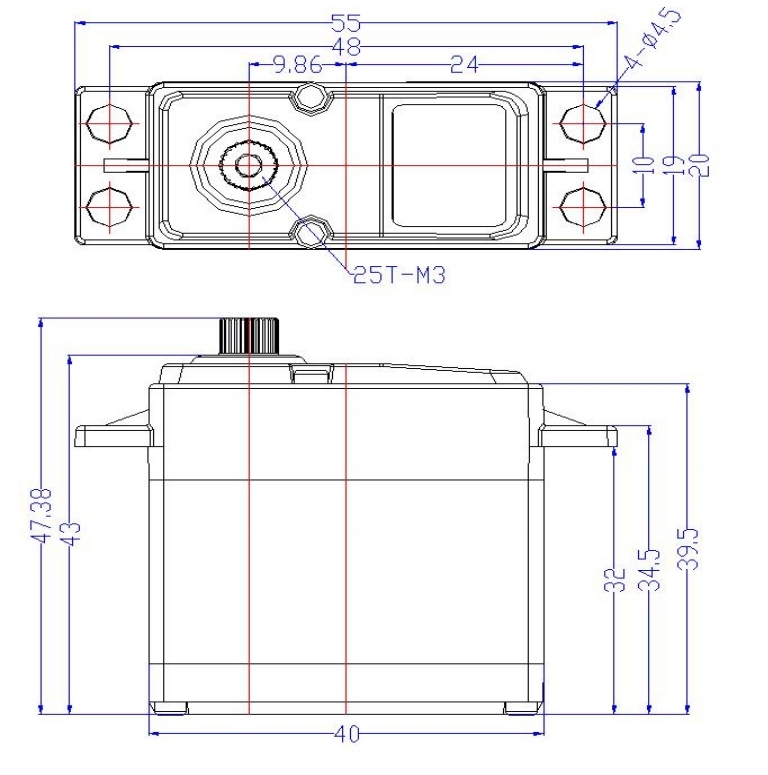

Size:
55mmx20mmx43mm
Weight:
67+-1g
Gear Type:
Copper Gear
Limit Angle:
NO Limit
Bearing:
Ball bearings
Horn Gear Spline:
25T/5.9mm
Horn Type:
Plastic
Case:
PA+Aluminum
Connector Wire:
30CM
Motor:
Core Motor
Operating Voltage Range:
6V-7.4V
Idle Current:
6MA@7.4V
No Load Speed:
0.151sec/60@7.4V
Running Current(At No Load):
120mA@7.4V
Peak Stall Torque:
20kg.cm@7.4V
Rated Torque:
6.5kg.cm@7.4V
Stall Current:
3A@7.4V
Command Signal:
Pulse width modification
Pulse Width Range:
500~2500 usec
Stop Position:
1500 usec
Running Degree:
180（at 500- > 2500 usec)
Dead Band Width:
≤4 usec
Rotating Direction:
Counterclockwise (+-1500→2000 usec)
