Technical Specifications
Brand:
Radxa
SoC:
Qualcomm Dragonwing IQ-9075
CPU:
Octa-Core Kryo Gen 6 (based Cortex-A78C) @2.36 GHz
MCU:
Quad-Core Cortex-R52 @ 1.85GHz
GPU:
Adreno 663 GPU,Delivers 1.2 TFLOPS FP32 with secure GPU compute, Supports Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.0 FP, Supports Adreno NN Direct
NPU:
200 TOPS@INT8 (Sparse Computing Power)
RAM:
36GB 96-bit LPDDR5@6400MT/s (with ECC support)
Video Decode:
Formats: AV1 / HEVC / H.265 / H.264 / VP9 / MPEG-2,- 1x 8Kp60 / 2x 8Kp30 / 4x 4Kp60 / 8x 4Kp30 / 16x 1080p60 / 32x 1080p30
Video Encode:
Formats: H.264 / H.265 / HEIF / HEIC,2x 4Kp60 / 4x 4Kp30 / 8x 1080p60 / 16x 1080p30,Concurrent 2x 4Kp60 encode + 2x 4Kp60 decode
Storage:
1xOnboard 32MB SPI Flash,1x UFS & eMMC Connector,1x Onboard 128GB UFS 3.1 (Gear4 x2),1x M.2 M Key Slot (PCIe Gen4 x4)
Wireless:
1x Mini PCIe Slot, Support Wi-Fi 6 / BT 5.4, - Supports 4G / 5G Mini PCIe module for cellular network connectivity,1x Nano SIM Slot, Supports up to 3 external antennas
Ethernet:
2xRJ45 2.5G GbE (with TSN)
Display:
1xStandard HDMI 2.0 (Supports up to 4K@60fps)
USB Ports:
1xUSB 3.1 Gen2 HOST Type-A Port, 1xUSB 3.1 Gen2 OTG Type-A Port, 1xType-C Serial Console Port
Power Supply:
12V / 5.4A DC (5.5 x 2.5 mm) Power Input

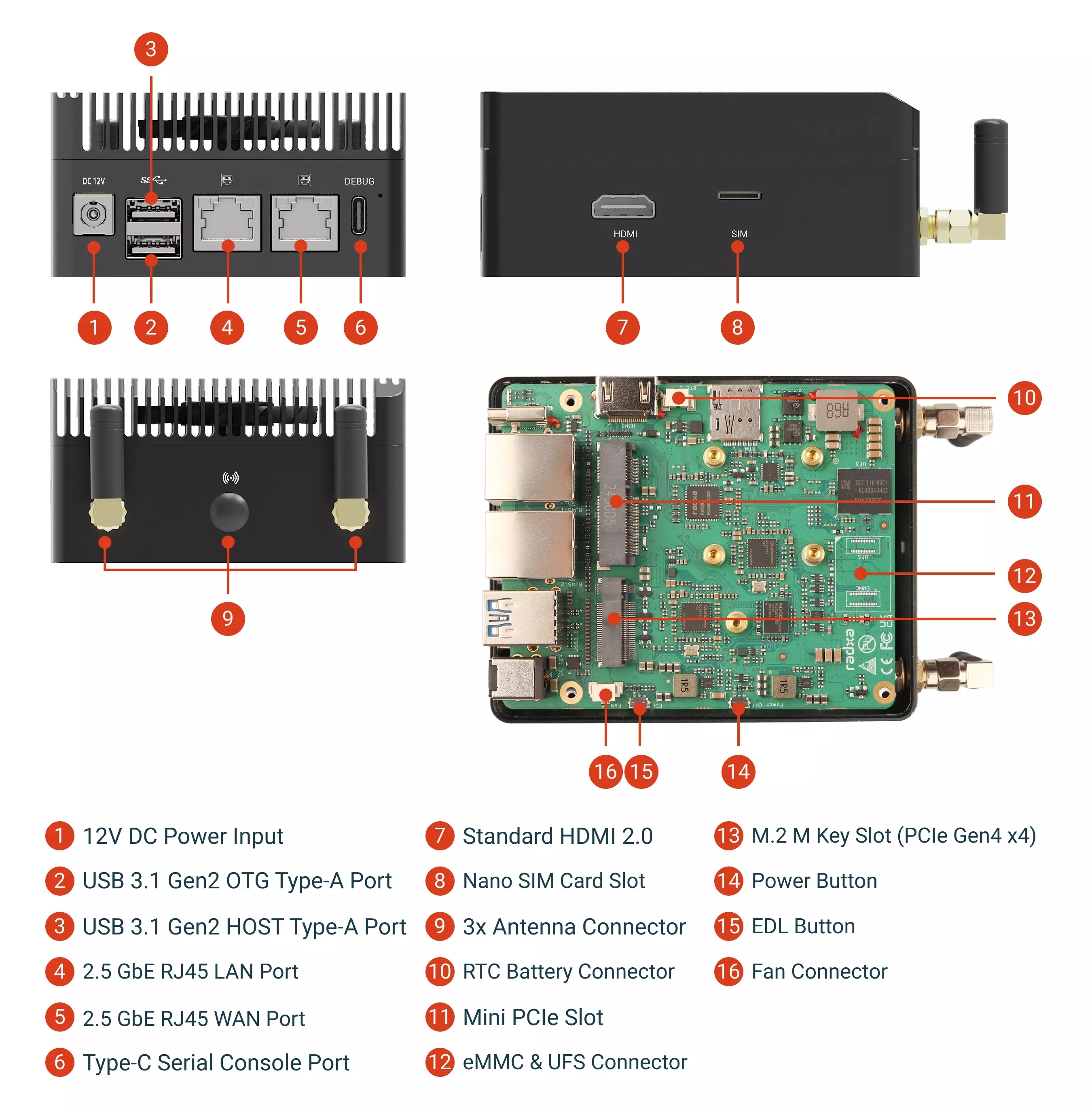

Interfaces:
1xPWM Fan Connector, 1xRTC Battery Connector, 1xPower Button, 1xEDL Button
Dimension:
104x84x45 mm
Operation Temperature:
0 C ~ 60 C
Case & Cooling:
Aluminum alloy enclosure with built-in PWM cooling fan
