Finger Vein Scanner Module (A), All-in-one Thin-Type

Waveshare

No reviews yet Write a Review
SKU:
061-29062
MPN:
29062
Finger Vein Scanner Module (A), All-in-One Thin-Type biometric scanner with 32-bit ARM Cortex-M4F core, USB drive-free adaptability, IP56 waterproof design, and compact architecture for smart locks and access control systems.
Quantity
Unit Price (ex. GST)
1 - 9
₹ 2,149.00
10 or above
₹ 2,063.04
High-precision Finger Vein Scanner Module featuring an ARM Cortex-M4F core, USB drive-free adaptability, IP56 waterproof rating, and advanced biometric capabilities for seamless integration into smart locks and access control systems. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,535.82 inc. GST
₹2,149.00 ex. GST
11 people looking at this.

Technical Specifications

Brand:
Waveshare
SOC:
144MHz 32-Bit ARM Cortex-M4F Microprocessor
User Capacity:
100 ID
Recognition Speed:
< 1s
Matching Method:
1:1 or 1:N
Vein Template Data:
Single Template ≤ 1K Bytes
False Acceptance Rate (FAR):
< 0.0001% (At High Security Level)
False Rejection Rate (FRR):
0.01% (At Higher Security Level)
Communication Interface:
USB: Adaptive USB Drive-Free (Windows) UART: 3.3V TTL, Default Baud Rate: 57600bps
Operating Voltage:
3.3V (±3%)
Operating Current:
43.0mA
Standby Current:
≤ 2uA
Dimensions:
59.0 x 26.0 x 15.0 (mm)
Enclosure:
ABS + PC
Fire Rating:
UL94-5VB
Waterproof Rating:
IP56 (Except for the Port Part)

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Advanced Finger Vein Scanner Module (A): The Perfect Fusion of Precision, Security, and Integration

The Finger Vein Scanner Module (A) is an all-in-one thin-type biometric solution designed for high-security applications. Engineered with a robust 32-bit ARM Cortex-M4F core operating at a frequency of up to 144MHz, this module offers unmatched accuracy, computational power, and energy efficiency. Its fully enclosed design with IP56 waterproof rating ensures durability, even in challenging environments. With its USB drive-free adaptability and UART communication interface, the module is user-friendly and easily integrable into various smart systems.

Ideal for use in slim-handle smart locks, sliding smart locks, embedded locks, glass door locks, apartment locks, and access control systems, the module’s ultra-thin design (13.5mm mounting thickness) and high-precision architecture redefine compact security solutions.

Key Features

High-Precision Computing:

  • Built-in 32-bit ARM Cortex-M4F core with floating-point algorithm calculation and DSP instruction set.

Energy Efficiency:

  • Standby power consumption below 2uA and working power consumption below 43.0mA. Power-up response time is less than 20ms.

Robust Design:

  • Fully enclosed structure with IP56 waterproof rating; exposed parts achieve IP66 waterproofing.
  • Conforms to industrial-grade Triple-Proof standards for durability and reliability.

Seamless Integration:

  • USB port adaptability and compatibility with fingerprint industry standards.
  • Supports fingerprint and private protocols for enhanced versatility.

Anti-Interference Capability:

  • Performs reliably in environments with illumination levels below 30,000LUX.

Perfect for Modern Applications

This module’s adaptability and efficiency make it the ideal choice for smart locks, access controls, and embedded systems requiring top-notch security and reliability.

Resources

Wiki: Wiki: www.waveshare.com/wiki/Finger_Vein_Scanner_Module_(A)

Package contents
  • Finger Vein Scanner Module (A) x1
  • 3.3V adapter board x1
  • Type-A male to MX1.25 4PIN cable x1
  • MX1.25 9PIN to 4PIN cable x1
  • MX1.25 4PIN dual-plug cable x1
  • MX1.25 9PIN to 2.54 cable ~200mm x1

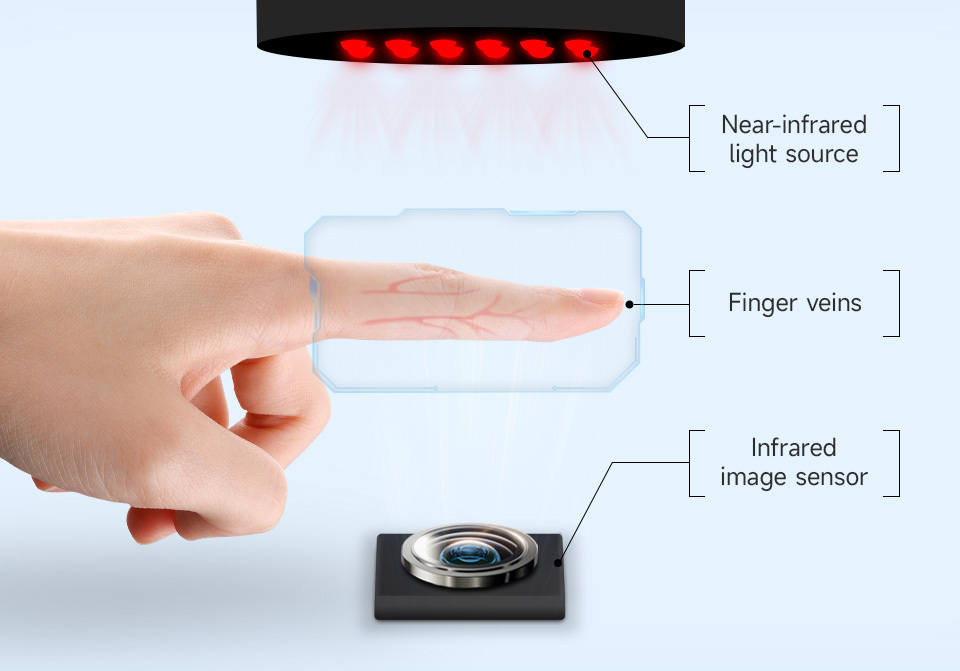

Finger Vein Recognition

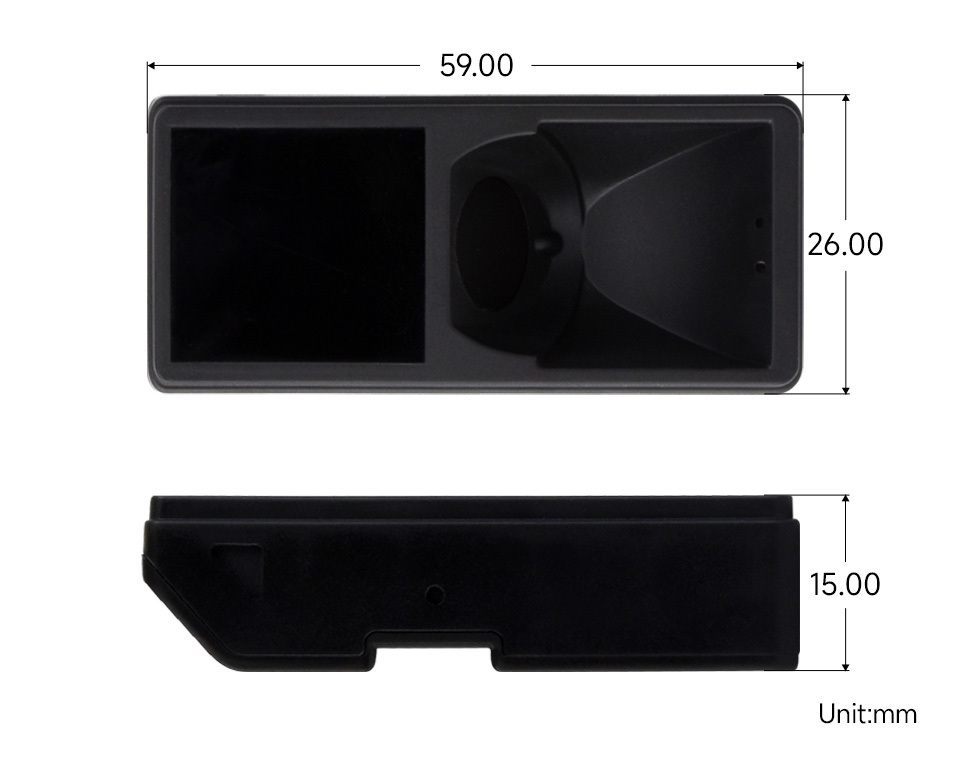

Dimensions
