FC722 F7 Flight Controller Stack 65A 4-in-1 2-8S Brushless ESC / For FC FPV Drone Quadcopter

DYS

No reviews yet Write a Review
SKU:
448-DYS-FC722-F7-AM32-65A
MPN:
DYS-FC722-F7-AM32-65A

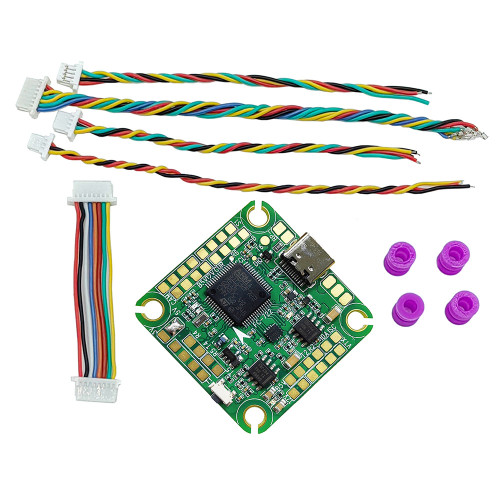

FC722 flight controller and AM32 65A 4-in-1 ESC combo stack for FPV freestyle drone
FC722 30×30 Flight Controller + AM32 65A 4-in-1 ESC combo supports 2–8S LiPo, HD/analog FPV, Bluejay firmware, bidirectional DSHOT and RPM filtering—ideal for powerful FPV freestyle drones and quadcopters. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹7,368.17 inc. GST
₹7,017.30 ex. GST
12 people looking at this.

Technical Specifications

Brand:
DYS
MCU:
STM32 FC722
Gyro:
ICM42688P
Barometer:
BMP280
OSD Chip:
AT7456E
Flash:
16MB (Blackbox flash)
UARTS:
6Port
Motor Outputs:
4x (SH1.0 connector)
I2C serial:
SDA / SLA pads
LED controller:
Yes
Beeper Pad:
Yes
Firmware Target:
BETA FLIGHT
Mount Pattern:
30.5x30.5mm / 4mm PCB hole diameter
Dimensions:
38x38 mm
Weight:
10.0g
BEC:
3.3V/1A; 5V/3A; 12V/3A
Supports:
PWM, Oneshot125, Oneshot42 Multishot, Dshot150, Dshot300, Dshot600.
Firmware:
AM_32
Mounting Holes:
30.5x30.5mm/4mm
Supports:
2-8S lipo
Telemetry Output:
NO
Current Sensor:
Yes
Constant:
65 Amps
Current Rate:
200
Burst:
80 Amps
Weight:
15.3g
MCU:
BB21
BEC:
NO

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

FC722 Flight Controller 30×30+AM32 65A 4-in-1 ESC Combo for FPV Freestyle Drone & Quadcopter

The FC722 Flight Controller 30×30+AM32 65A 4-in-1 Brushless ESC Combo is a powerful, well-matched electronics stack designed for FPV freestyle drones and performance quadcopters. This combo delivers excellent stability, smooth throttle response and reliable power handling for aggressive flying and high-load setups. The FC722 flight controller offers robust power management with integrated 3.3V / 5V / 12V BECs, beginner-friendly soldering, and advanced firmware support, while the AM32 65A 4-in-1 ESC provides high-current capability with low electrical noise across a wide 2S–8S LiPo range.

Designed for ease of build and clean wiring, the stack supports HD and analog FPV systems, includes DJI HD VTX plug-and-play connectivity, and features LED indicators for quick visual debugging. With Bluejay firmware support, bidirectional DSHOT and RPM filtering, this FC+ESC combo ensures precise motor control, reduced vibration and smooth, locked-in flight performance—making it an excellent choice for both beginners and experienced FPV pilots.

Key Features

  • Matched FC+ESC Stack: Optimised combination for FPV freestyle and high-performance quadcopters.

  • FC722 Flight Controller (30x30):

    • Integrated 3.3V / 5V / 12V BEC for stable peripheral power

    • Large, well-spaced solder pads ideal for beginners

    • HD/Analog camera & receiver direct plug interfaces

    • Four onboard LED status indicators for clear system feedback

    • Supports Bluejay firmware, bidirectional DSHOT and RPM filtering

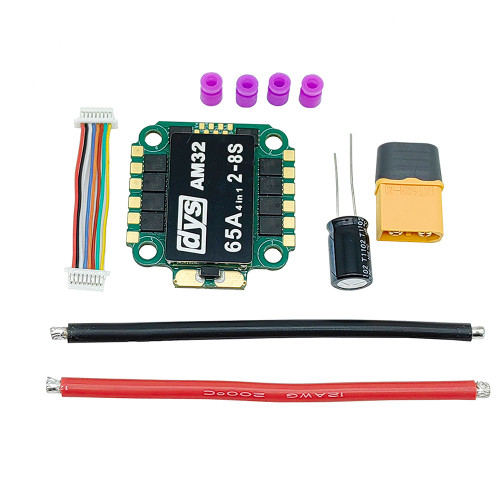

  • AM32 65A 4-in-1 Brushless ESC:

    • Supports 2S–8S LiPo batteries

    • 65A continuous current for high-power motors

    • Improved circuit design with low electrical noise

    • DJI HD VTX plug-and-play connector (no soldering required)

    • Integrated LC filter for clean, stable power

    • FC indicator LEDs for easy debugging

  • Freestyle-Ready Performance: Smooth throttle response, reduced vibration and excellent flight control.

  • Compact & Clean Build: 30×30 mounting pattern fits most FPV frames with minimal wiring clutter.

Package Content:

  • 1PCxDYS FC722 Flight Controller
  • 1PCxDYS AM32 65A 4-IN-1 ESC
  • 1SETxSilicon Grommets
  • 1SETxWire Harness For F7 Flight Controller
