F65A 1000W 24000 RPM Air-Cooled Spindle Kit For TTC6050/TTCH40 CNC with Inverter

TwoTrees

No reviews yet Write a Review
SKU:
507-212901026
MPN:
212901026
Twotrees F65A air-cooled CNC spindle mounting base for engraving, cutting, and milling applications
Twotrees F65A air-cooled spindle mounting base for CNC routers. Supports engraving, cutting, and milling with high precision and low maintenance design. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹34,048.90 inc. GST
₹28,855.00 ex. GST
7 people looking at this.

Technical Specifications

Brand:
TwoTrees
Type:
F65A Air-cooled Spindle Kit
Molding Technology:
Cast Aluminum
Main Body Color:
Black + Silver + Gray
Main Body Material:
Aluminum + Injection-molded Parts
Spindle Size:
D50xL200
Inverter Size:
85x170x124
Engraving Materials:
Plywood/Density Board/Solid Wood Board/Acrylic/Carbon Fiber/Aluminum/Copper/Stainless Steel
Net Product Weight:
4.06KG
Package Weight:
4.91KG
Inner Package Size:
325x315x130mm
Outer Package Size:
350x330x140mm
Standard Carton:
Specification: 4 units/carton; Size: 350×660×280mm; Weight: 20.5KG
Rated Power:
1KW
Voltage:
220V
Current:
2.5A
Frequency:
400Hz
Rotating Speed:
24000
Shaft End Connection:
ER11
Lubrication Method:
Grease
Number of Bearings:
3
Weight:
2.8KG
Rated Voltage/Frequency:
3-phase: 380V~440V, 50Hz/60Hz; Single-phase: 200V~240V, 50Hz/60Hz
Allowable Voltage:
3-phase: 320V~460V; Single-phase: 180V~260V; Voltage Unbalance:
Operating Range:
0Hz ~ Rated Input Voltage
Output Voltage:
0 ~ Rated Input Voltage
Output Frequency:
0Hz ~ 4000Hz
Overload Capacity:
120% Rated Current for 1 Minute
Compatible Models:
TTC450, TTC450 Pro, TTC450 Ultra
Engraving Ambient Temperature:
0 C~ 40 C

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

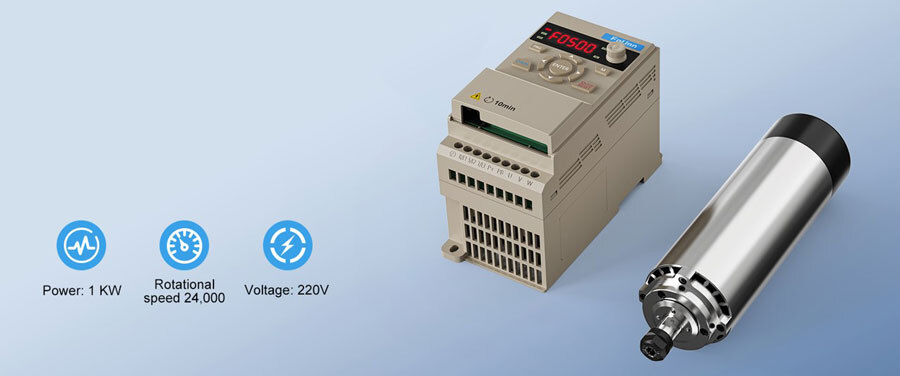

Robust Air-Cooled Spindle Mounting Base for CNC Routers, Engraving, and Milling Applications - High Speed Performance 24000 RPM

The F65A 1000W air cooled spindle kit is built for stable and precise CNC machining across engraving, cutting, and milling applications. Designed for TTC6050 and TTCH40 systems and compatible with 69 mounting socket series, it provides reliable spindle performance for workshops, production setups, and advanced DIY users. Its 24000 RPM operating speed supports efficient material removal and smooth machining results on a wide range of substrates.

With an air cooled design, this spindle kit reduces maintenance complexity by removing the need for a water cooling system. The robust construction helps minimise vibration for better machining accuracy, while high precision bearings support stable rotation during continuous operation. It is suitable for working on solid wood, MDF, acrylic, PVC sheets, aluminium alloy, and copper in furniture making, craft production, sign making, and small scale manufacturing.

Key Features

• High Speed Performance
Operates at 24000 RPM for efficient engraving cutting and milling.

• 1000W Spindle Power
Delivers stable output for small to medium CNC machining tasks.

• Air Cooled Design
Removes the need for water cooling and simplifies maintenance.

• Wide Machine Compatibility
Designed for TTC6050 and TTCH40 and compatible with 69 mounting socket series.

• Stable Machining Support
Rigid mounting structure helps reduce vibration and improve cutting accuracy.

• Material Versatility
Suitable for solid wood MDF acrylic PVC aluminium alloy and copper.

• High Precision Bearings
Supports smooth spindle rotation and consistent machining quality.

• Workshop Ready Construction
Built for regular use in professional workshops small industries and advanced hobby setups.
