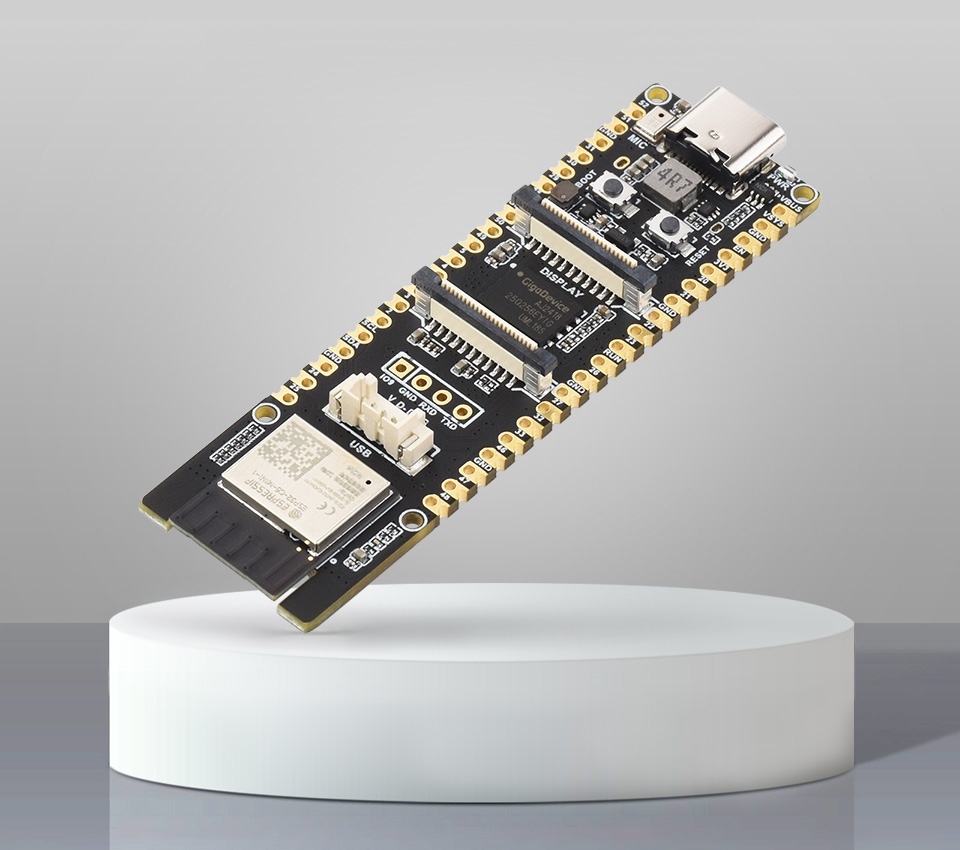

ESP32-P4-WIFI6 Development Board, Wi-Fi 6 And Bluetooth 5 / BLE

Resources:

www.waveshare.com/wiki/ESP32-P4-WIFI6

ESP32-P4-WIFI6 Development Board – Wi-Fi 6 and Bluetooth 5 BLE High-Performance Multimedia Board: Build Powerful and Secure IoT Applications

The ESP32-P4-WIFI6 Development Board is a next-generation multimedia and IoT-ready solution built around the ESP32-P4 MCU combined with the ESP32-C6 wireless module, enabling seamless Wi-Fi 6 and Bluetooth 5/BLE connectivity. With a 400MHz RISC-V dual-core processor, advanced multimedia support, and extensive interface options, it is designed for Human-Machine Interfaces (HMI), edge computing, and secure embedded systems. Featuring 32MB PSRAM, 32MB Flash, and advanced image and voice processing capabilities such as JPEG Codec, Pixel Processing Accelerator, and H.264 encoder, the board ensures efficient performance for demanding applications. Its 40-PIN GPIO header, compatible with Raspberry Pi Pico HATs, further enhances design flexibility for developers.

Key Features

• High-Performance RISC-V MCU: Dual-core and single-core processors running up to 400MHz for robust computing power.

• Integrated Wi-Fi 6 & Bluetooth 5: ESP32-C6 wireless module ensures faster connectivity, higher efficiency, and BLE 5.0 support.

• Rich Memory Options: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM, onboard 32MB PSRAM, and 32MB Flash.

• Advanced Multimedia Functions: Built-in ISP with MIPI-CSI, MIPI-DSI, H.264 encoder, JPEG Codec, and Pixel Processing Accelerator for image and video handling.

• Versatile Interfaces: USB 2.0 OTG, SDIO 3.0, TF card slot, I2C, SPI, I2S, ADC, UART, PWM, MCPWM, RMT, microphone, and speaker header.

• GPIO Expansion: 2×20 GPIO headers with 27 additional programmable GPIOs, Raspberry Pi Pico HAT compatible.

• Security & Encryption: Equipped with Secure Boot, Flash Encryption, Digital Signature Peripheral, cryptographic accelerators, TRNG, and privilege separation for enhanced data protection.

• Edge Computing Ready: Optimised for low-cost, high-performance applications requiring real-time processing and multimedia capability.

High-Performance Development Board Based On ESP32-P4 And ESP32-C6

Rich Human-Machine Interfaces

Kit Selection

Highly Integrated And Powerful Performance

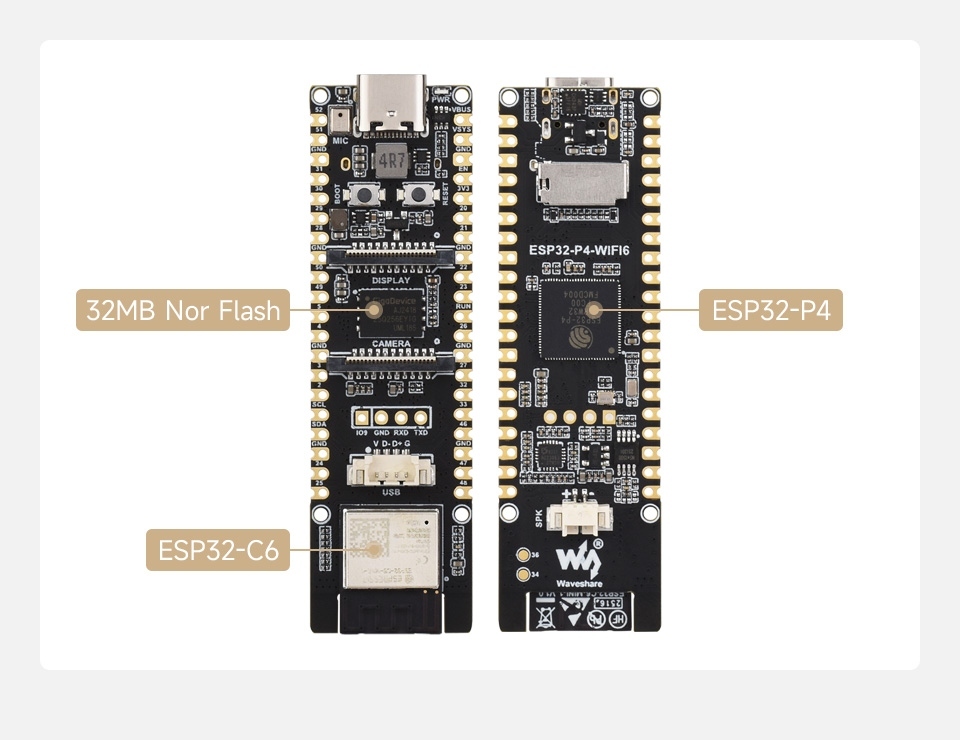

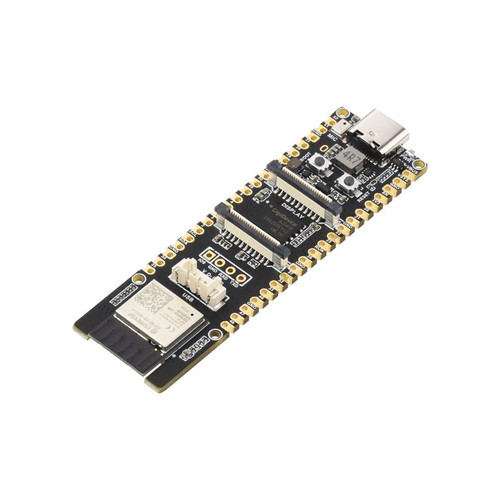

Adopts ESP32-P4 Module, Onboard ESP32-C6 And 32MB Nor Flash

WiFi 6 And Bluetooth Module

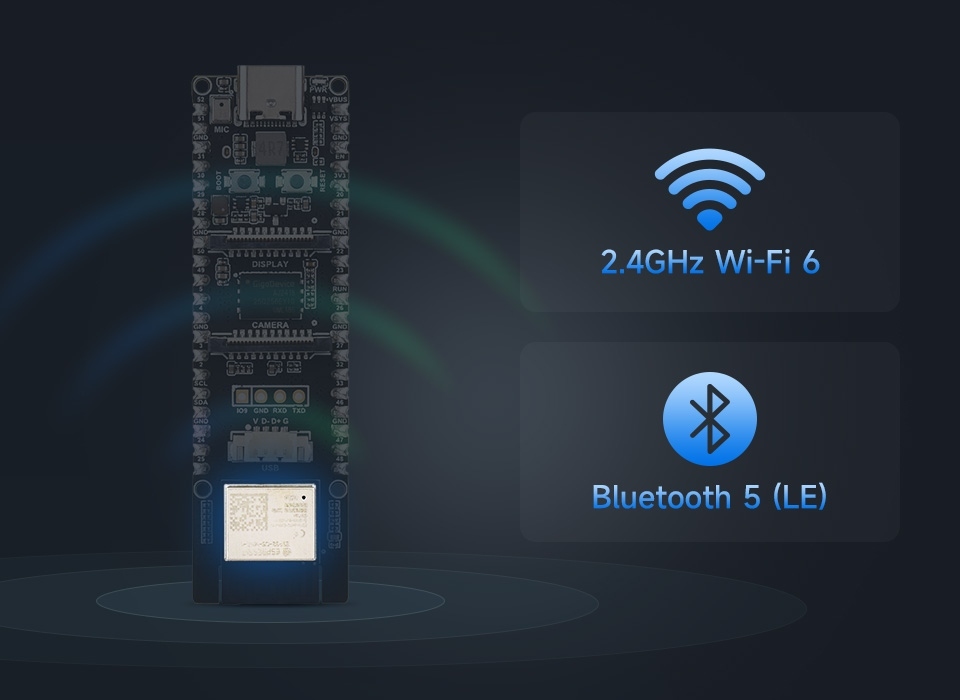

Onboard ESP32-C6 chip to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission

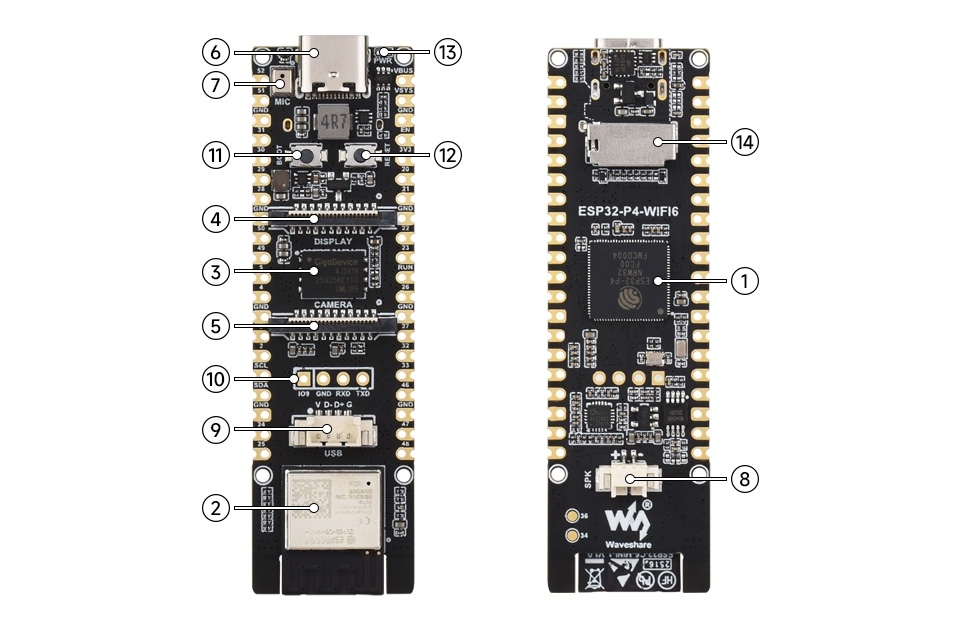

What's On Board

1. ESP32-P4NRW32
   ESP32-P4 chip, with 32MB PSRAM
2. ESP32-C6-MINI-1
   SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5
3. 32MB Nor Flash
4. Display interface
   MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screen
5. Camera interface
   MIPI-CSI (2-lane), supports OV5647 camera, etc.
6. USB Type-C connector
   for power supply, program burning and debugging
7. Onboard microphone
8. Speaker header
   MX1.25 2P connector, supports 8Ω 2W speaker
9. 4PIN USB header
   USB OTG 2.0 High Speed interface
10. ESP32-C6 UART pads
11. BOOT button
    Press it when powering on or resetting to enter download mode
12. RST button
13. Power supply indicator
14. TF card slot
    SDIO 3.0 interface protocol

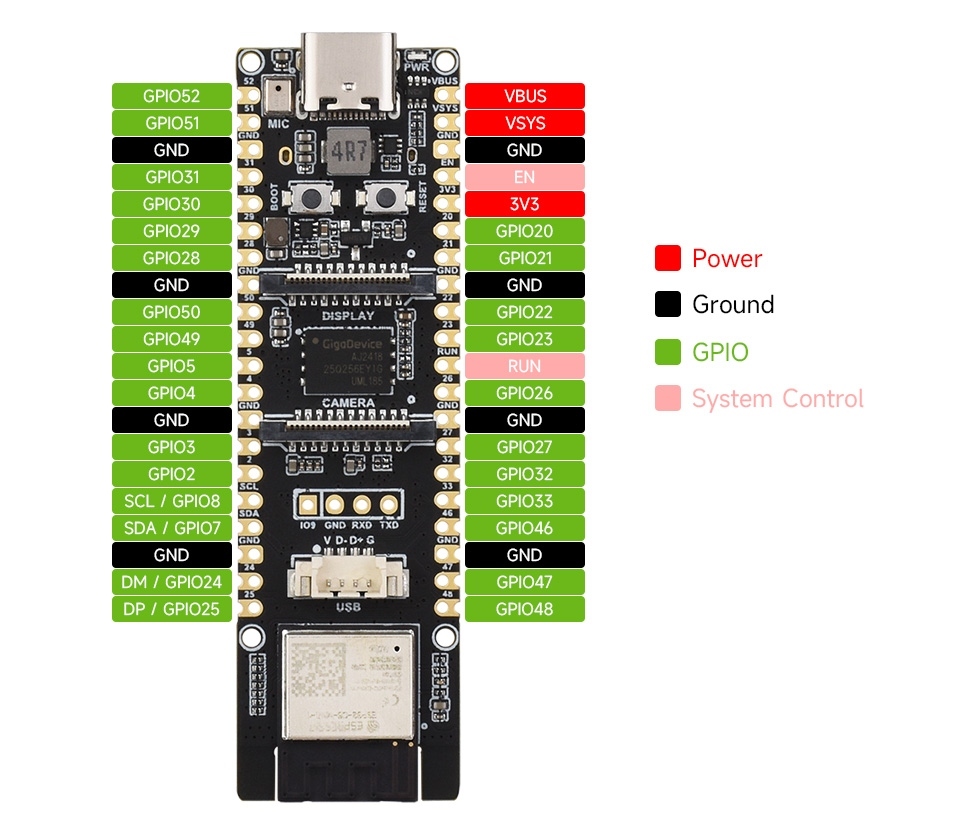

Pin Definition

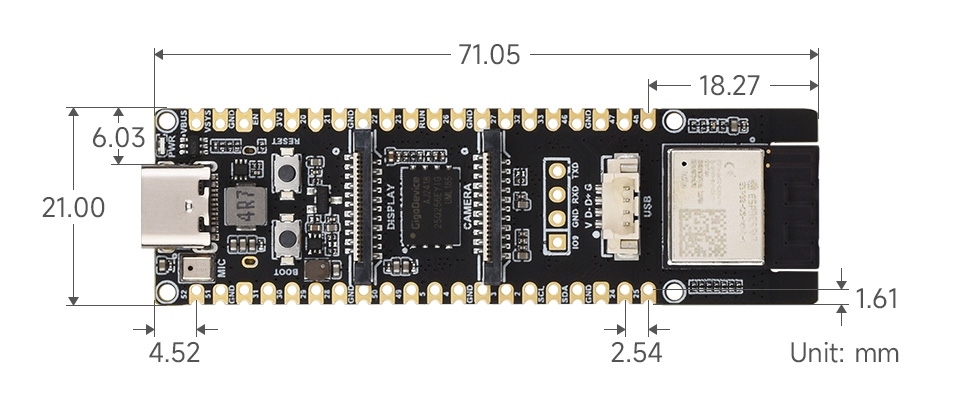

Dimensions

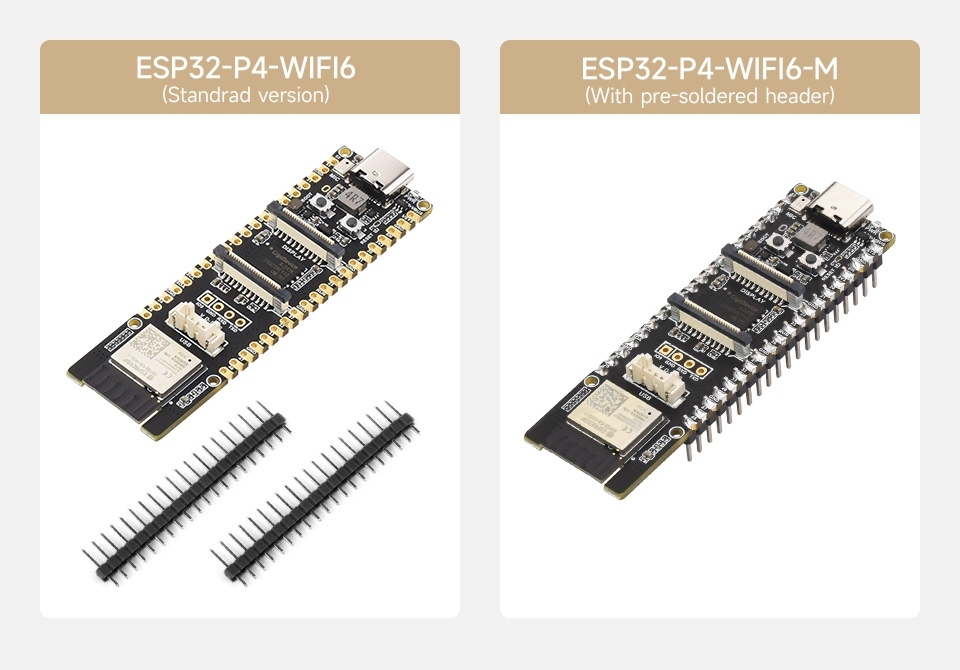

Package Content:



ESP32-P4-WIFI6

1. ESP32-P4-WIFI6 x1
2. 20PIN header x2

ESP32-P4-WIFI6-M

1. ESP32-P4-WIFI6 with pre-soldered header x1
