ESP32-P4-WIFI6-DEV-KIT Dev Board Wi-Fi 6 And Bluetooth 5 / BLE 5

Resources:

Wiki: www.waveshare.com/wiki/ESP32-P4-WIFI6-DEV-KIT

ESP32-P4-WIFI6-DEV-KIT Development Board – High-Performance Wi-Fi 6 and Bluetooth 5 BLE Solution: Empower Your IoT and Edge Computing Projects

The ESP32-P4-WIFI6-DEV-KIT Development Board is a cutting-edge platform designed for advanced IoT, multimedia, and edge computing applications. Powered by the ESP32-P4 chip, this board integrates a RISC-V 32-bit dual-core and single-core processor architecture, ensuring high-speed performance, reliability, and efficiency. It supports Wi-Fi 6 and Bluetooth 5 / BLE connectivity, making it suitable for next-generation wireless applications. With a wide range of Human-Machine Interfaces (HMI) including MIPI-CSI with ISP, MIPI-DSI, SPI, I2S, I2C, UART, ADC, TWAI, and PWM, developers can build versatile projects across industrial, smart home, and AI-based solutions.

This board features secure data handling with built-in Digital Signature Peripheral, Key Management Unit, and hardware-level encryption. It also integrates advanced image and voice processing with JPEG Codec, H.264 encoder, and Pixel Processing Accelerator, making it ideal for multimedia and AI-driven interfaces. Onboard 32MB PSRAM and 16MB NOR Flash provide sufficient memory for demanding applications, while the additional Ethernet port, USB OTG 2.0, TF card slot, microphone, speaker header, and RTC battery header enhance functionality.

Key Features

• High-Performance Processor: RISC-V 32-bit dual-core and single-core processors for efficient computing.

• Wireless Connectivity: Supports Wi-Fi 6 and Bluetooth 5 / BLE for high-speed, reliable communication.

• Advanced Memory: 32MB PSRAM (in-package) and 16MB NOR Flash onboard.

• Rich Multimedia Interfaces: MIPI-CSI with ISP, MIPI-DSI, USB OTG 2.0, H.264 encoder, JPEG Codec, and Pixel Processing Accelerator.

• Comprehensive Peripheral Support: SPI, I2C, I2S, UART, TWAI, MCPWM, RMT, ADC, and LED PWM.

• Enhanced Security: Secure Boot, Flash Encryption, Digital Signature Peripheral, Key Management Unit, TRNG, and cryptographic accelerators.

• IO Expansion: 2×20 GPIO headers with 28 remaining programmable GPIOs for flexible interfacing.

• Connectivity Options: Ethernet port, SDIO 3.0 TF card slot, microphone, speaker header, RTC battery header.

• Industrial & IoT Ready: Suitable for Human-Machine interaction, industrial control, smart homes, and secure IoT deployments.

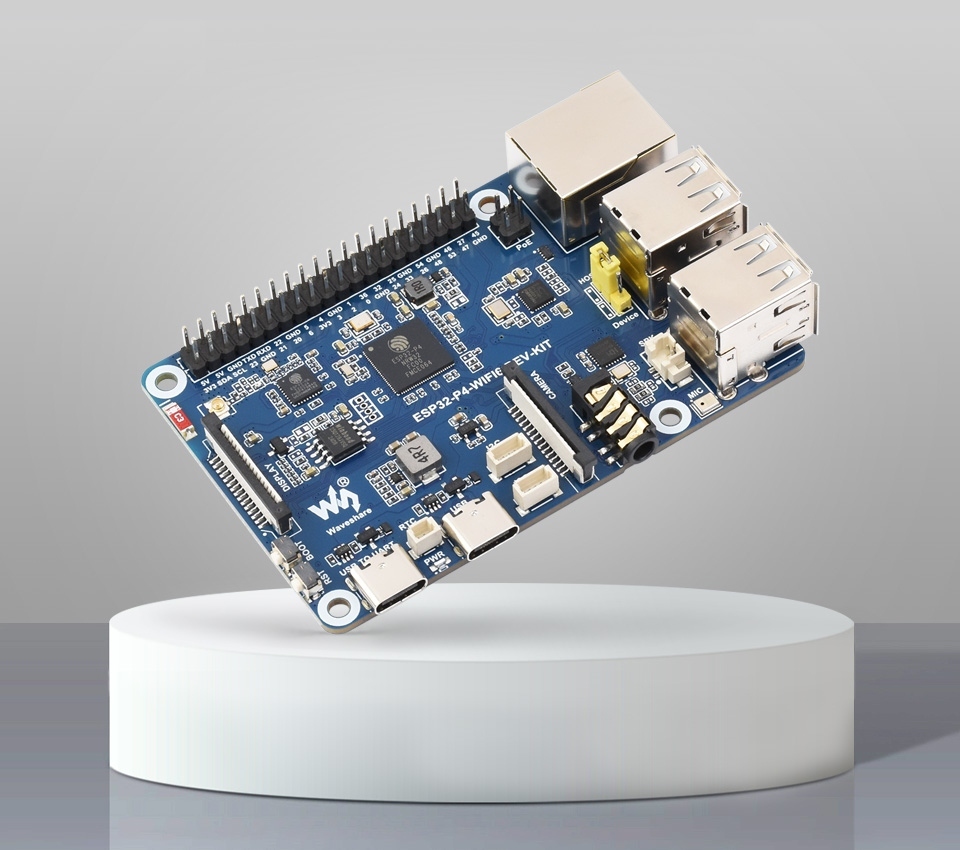

ESP32-P4-WIFI6-DEV-KIT

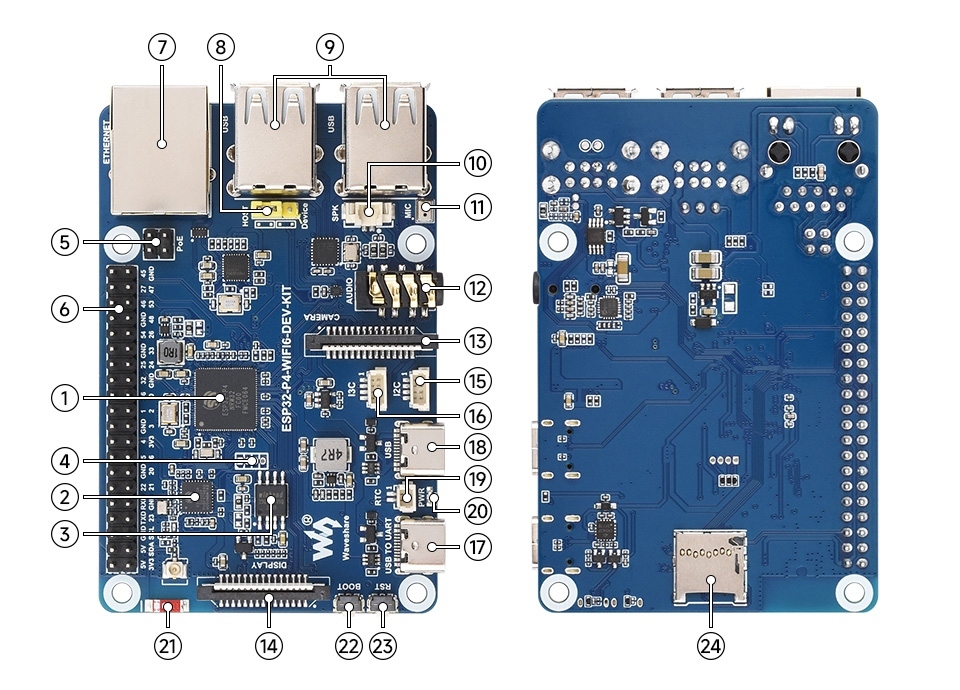

What's On Board





1. ESP32-P4NRW32
   ESP32-P4 chip, with 32MB PSRAM
2. ESP32-C6
   SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4
3. 16MB Nor Flash
4. ESP32-C6 UART pads
5. PoE module header
   connect to external PoE module (NOT included) for PoE power supply function
6. 40PIN GPIO header
7. 100M RJ45 Ethernet port
8. USB OTG function selection
   switching to HOST end for expanding USB ports
9. USB-A ports
   USB OTG 2.0 high-speed ports, switching to HOST or DEVICE via jumper
10. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
11. Onboard microphone
12. 3.5mm audio jack
    Supports audio playback via connected headphones
13. Camera interface
    MIPI-CSI (2-lane), supports OV5647 camera, etc
14. Display interface
    MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screen
15. I2C interface
16. I3C interface
17. Type-C UART port
    for power supply, program burning and debugging
18. Type-C USB port
    for power supply, program burning
19. RTC battery header
    for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
20. PWR
    Power indicator
21. ESP32-C6 SMD antenna
22. BOOT Button
    Press it when powering on or resetting to enter download mode
23. RST Reset button
24. TF card slot
    SDIO 3.0 interface protocol

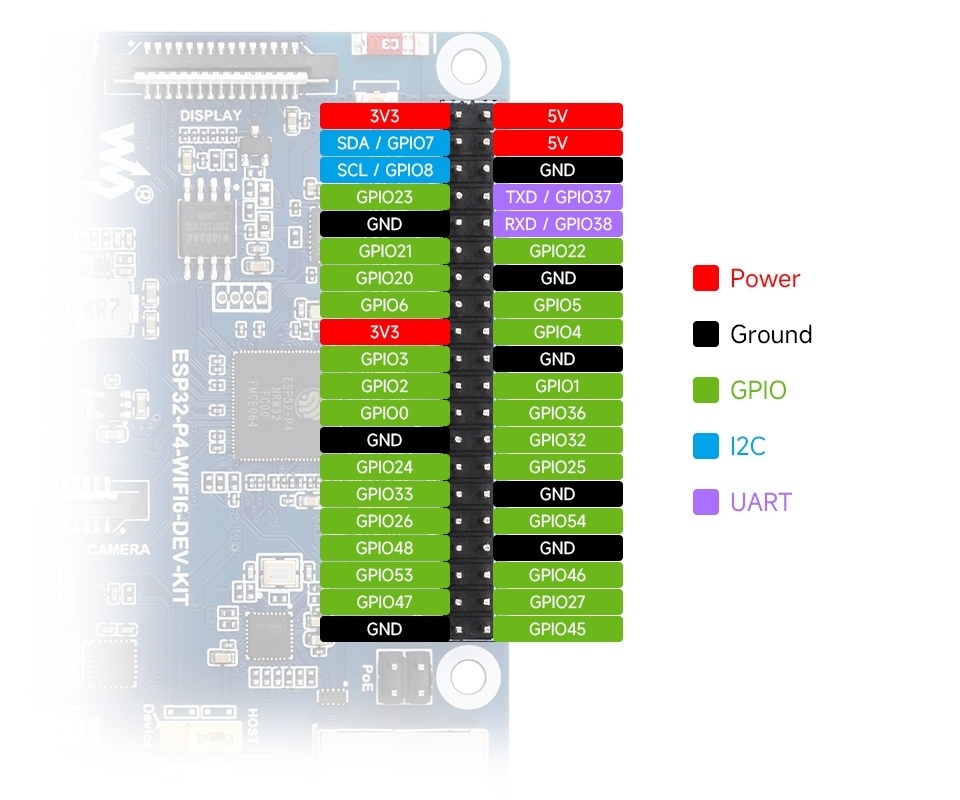

Pin Definition

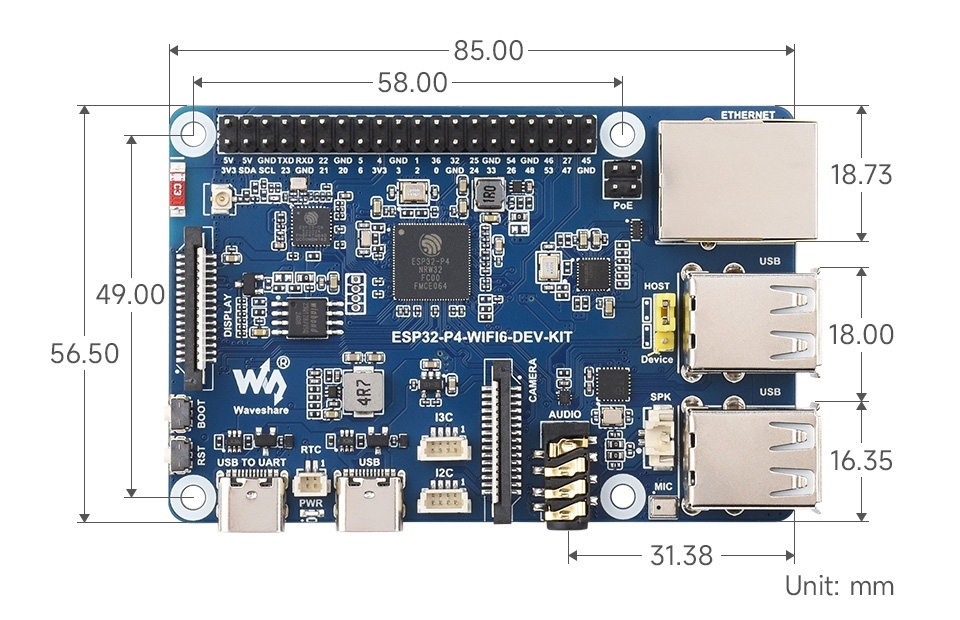

Dimensions

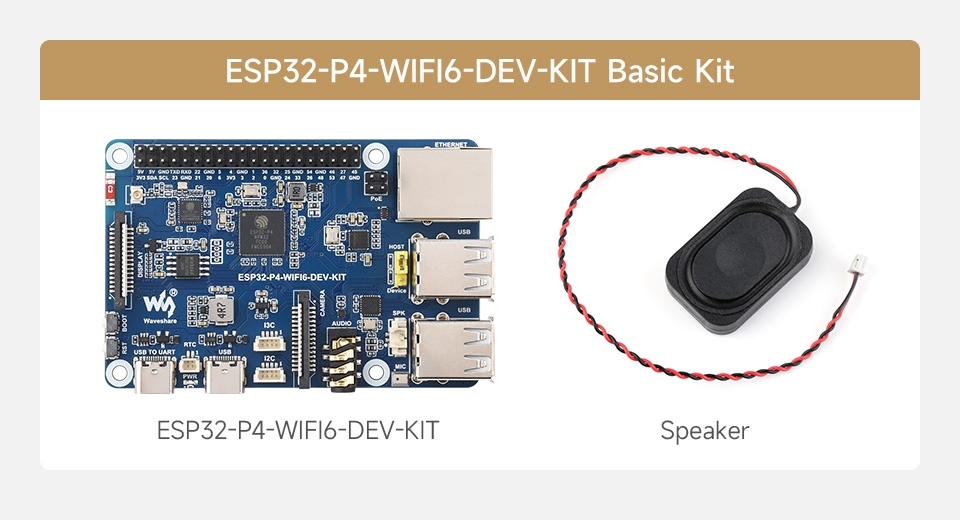

Package Content:

 ESP32-P4-WIFI6-DEV-KIT

1. ESP32-P4-WIFI6-DEV-KIT x 1
2. 8Ω 2W speaker x 1
