ESP32-P4-Pico Development Board RISC-V Dual-Core And Single-Core Processors

Resources:

www.waveshare.com/wiki/ESP32-P4-Pico

ESP32-P4-Pico High-Performance Development Board – RISC-V Dual-core Multimedia Board with Rich Interfaces: Power Your Edge Computing & HMI Applications

The ESP32-P4-Pico is a powerful and versatile development board designed for high-performance multimedia and secure embedded applications. Built on the ESP32-P4 microcontroller, it integrates a 400MHz RISC-V dual-core processor, multimedia accelerators, and extensive peripheral support, making it ideal for Human-Machine Interfaces (HMI), edge computing, and secure IoT devices. With 32MB PSRAM, 32MB Flash, and advanced image/voice processing capabilities such as JPEG Codec, Pixel Processing Accelerator, and H.264 encoder, this board is engineered to meet the demands of complex real-time applications. Its compatibility with Raspberry Pi Pico HATs and broad interface support ensures unmatched flexibility for developers.

Key Features:

• High-Performance RISC-V Processor: Dual-core and single-core processors running at up to 400MHz for powerful multimedia applications.

• Rich Memory Options: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM, onboard 32MB PSRAM, and 32MB Nor Flash.

• Advanced Multimedia Capabilities: Integrated ISP with MIPI-CSI, MIPI-DSI, H.264 encoder, JPEG Codec, and Pixel Processing Accelerator for image and video processing.

• Comprehensive Peripheral Interfaces: Supports MIPI-CSI, MIPI-DSI, SPI, I2S, I2C, ADC, UART, LED PWM, MCPWM, RMT, USB 2.0 OTG, SDIO 3.0, TF card slot, microphone, and speaker header.

• 40-PIN GPIO Compatibility: Standard header layout supports Raspberry Pi Pico HATs with 27 additional programmable GPIOs.

• Enhanced Security: Secure Boot, Flash Encryption, Digital Signature Peripheral, cryptographic accelerators, TRNG, Access Permission Management, and Privilege Separation for data security.

• Edge Computing Ready: Optimised for efficient multimedia tasks, human-machine interaction, and industrial IoT solutions.

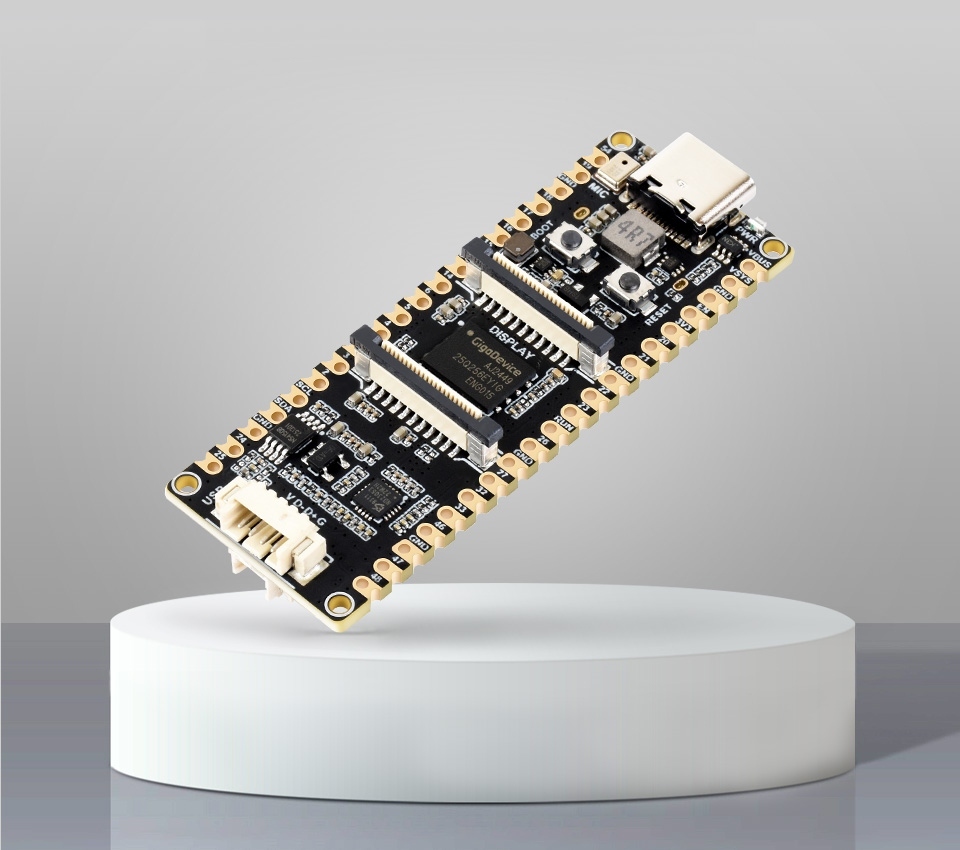

ESP32-P4-Pico Development Board

High-performance Development Board Based On ESP32-P4

Rich Human-machine Interfaces

Kit Selection

Highly Integrated And Powerful Performance

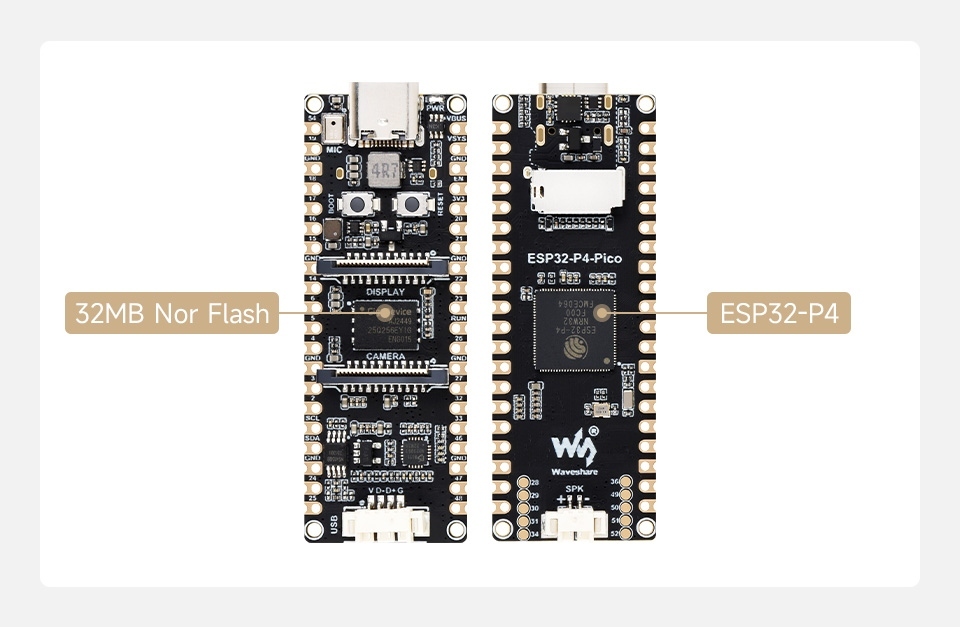

Adopts ESP32-P4 Module, Onboard 32MB Nor Flash

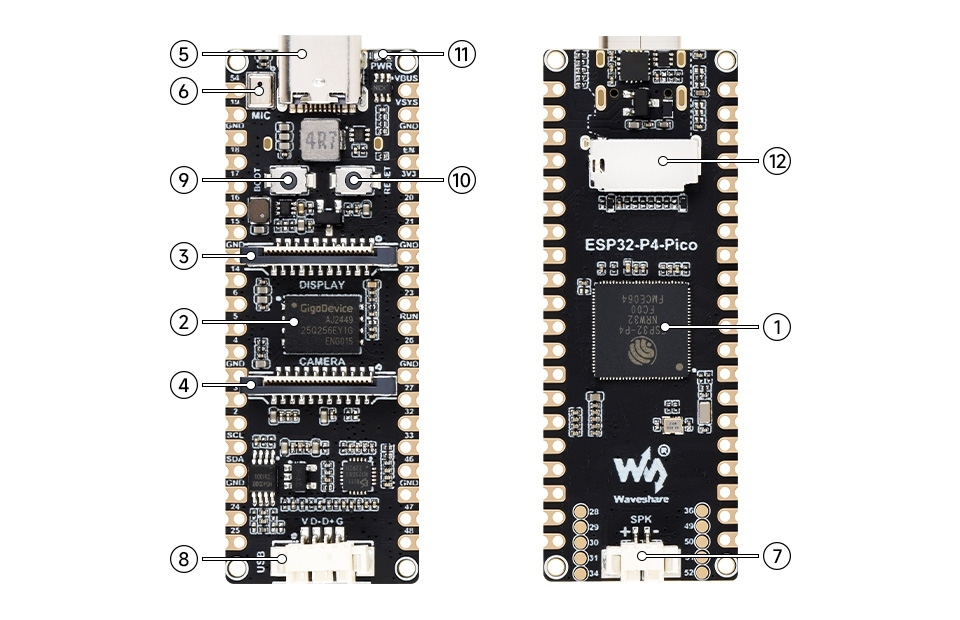

What's On Board

1. ESP32-P4NRW32
   ESP32-P4 chip, with 32MB PSRAM
2. 32MB Nor Flash
3. Display Interface
   MIPI-DSI (2-lane), supports 5 / 7 / 8 / 10.1 inch DSI screens
4. Camera Interface
   MIPI-CSI (2-lane), supports OV5647 camera, etc.
5. USB Type-C Port
   for power supply, program burning and debugging
6. Onboard Microphone
7. Speaker Header
   MX1.25 2P connector, supports 8Ω 2W speaker
8. 4PIN USB Header
   USB OTG 2.0 High Speed interface
9. BOOT Button
   Press it when powering on or resetting to enter download mode
10. RST Button
11. Power Supply Indicator
12. TF Card Slot
    SDIO 3.0 interface protocol

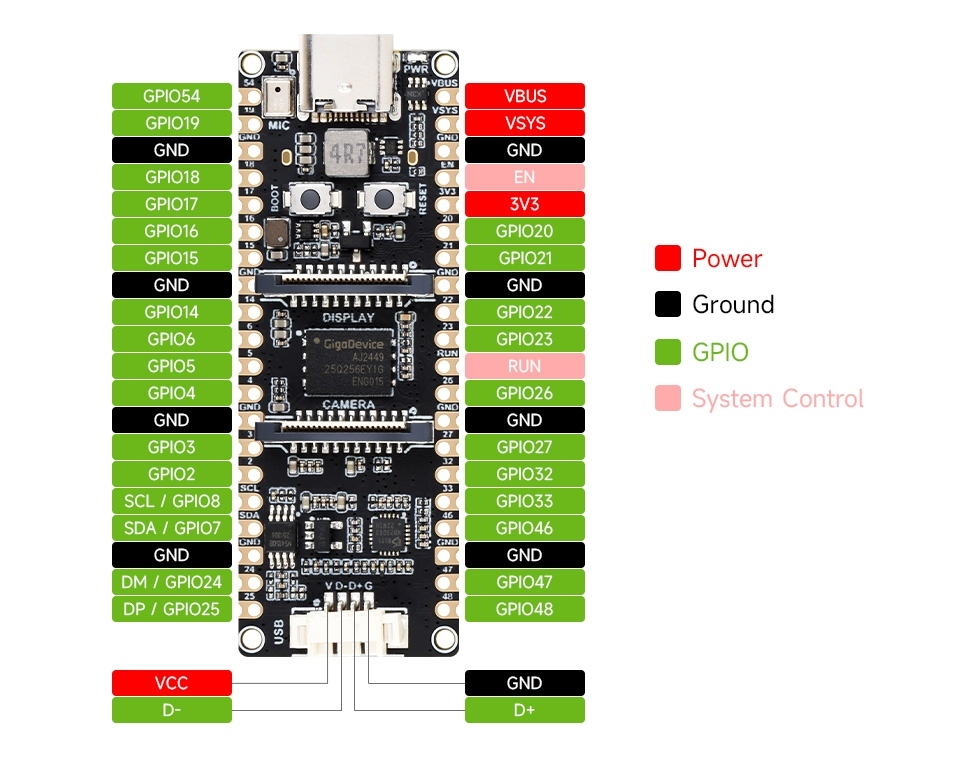

Pin Definition

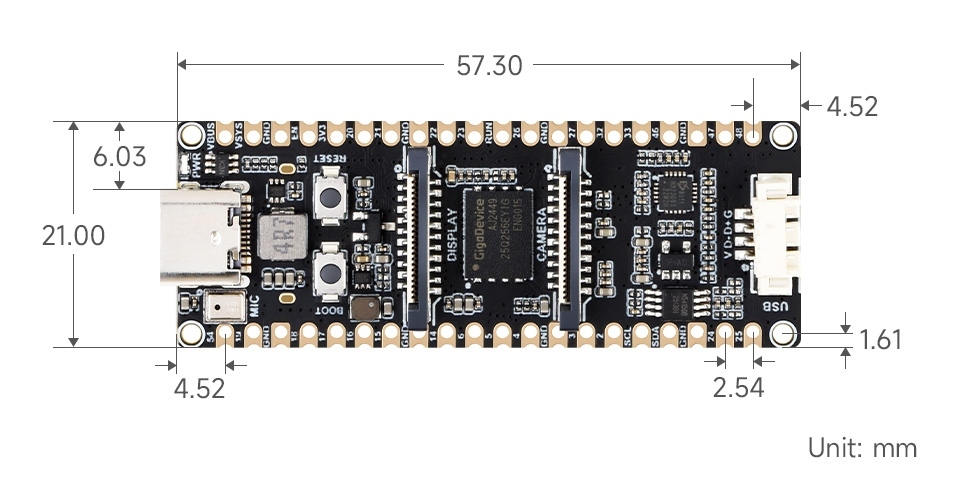

Dimensions

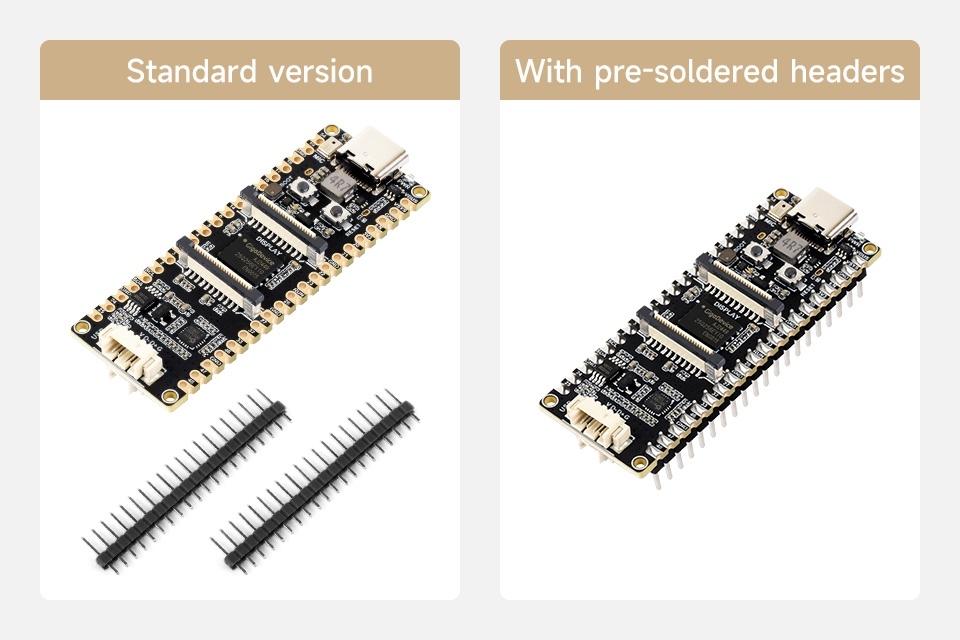

Package Content:

ESP32-P4-Pico

1. ESP32-P4-Pico x1
2. 20PIN header x2

ESP32-P4-Pico-M

1. ESP32-P4-Pico with pre-soldered headers x1
